VOLTCRAFT DLA-3L 32 Test lead adapter CEE 32 A - CEE 32 A
Conrad Electronic
€ 129.99*
EAN:
Part number:
Item no:
AC50A-D
- CAT III 600 V
Technical specifications
- Measurement rate: 20 measurements/sec. (Bar graph), 2 measurements/sec. (Digital Display)
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
400 V
- A AC reading range (min.)
0.01 mA
- Amperage reading range AC (max.)
60 A
- Reading range - resistance
0.1 Ω - 400 Ω
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 1 kHz Hz
- Interfaces
none
- Power supply (details)
2 AA batteries
- Height
183 mm
- Width
64 mm
- Weight
190 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC
- Current reading
AC
- Type
AC50A-D
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 64 mm x 183 mm
- Factory colour
Multicolour
- Opening range of current clamps
30 mm
- Product type
Clamp meter
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 101481 Beha Amprobe AC50A-D Clamp meter, Handheld multimeter Digital CAT III 600 V Display (counts): 4000 |  PDF |
Description

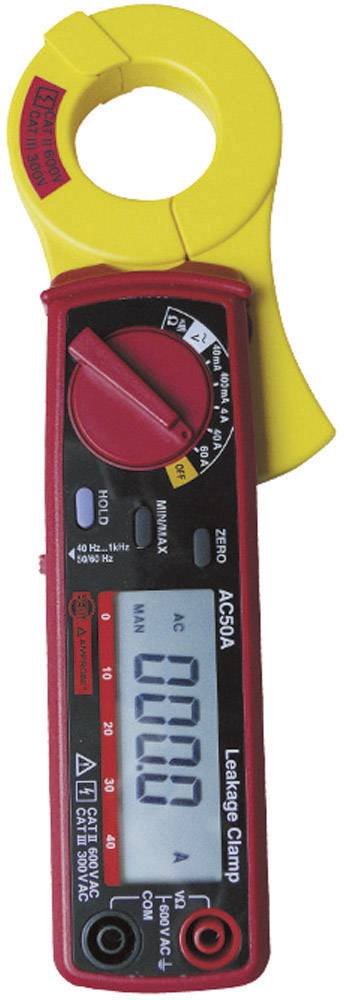

The Amprobe clamp-on ammeter AC 50 A is a universal instrument. The measuring device is built according to the standards and ensures a safe and reliable working. The clamp-on ammeter is perfect for crafts and industrial areas a valuable help. The very high sensitivity of the power range, the stray current (leakage current) of a consumer can be measured.
This text is machine translated.
This text is machine translated.
Features
- 33/4 digit, digital LC display with bar display
- Differential current measurement
- Leakage current measurement (leakage current)
- Voltage and resistance measurement acoustic continuity test
- MIN/MAX and relative value measurement
- Contact-free frequency measurement
- Integrated measured value storage
- Auto switch-off.
Scope of delivery
- Test leads with test tips (red, black)
- Batteries
- Bag
- User manual.
