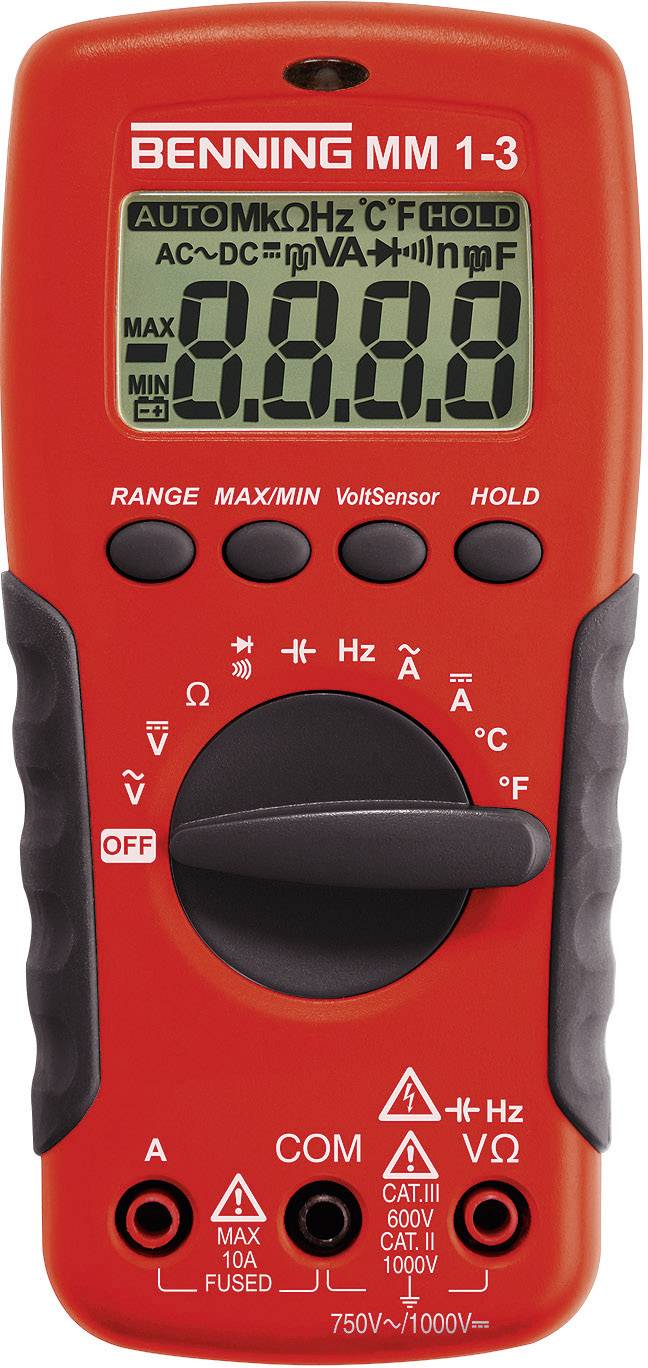

Benning MM 1-3 Handheld multimeter Digital CAT II 1000 V, CAT III 600 V Display (counts): 2000

EAN:
Part number:
Item no:
Benning MM 1-3 Handheld multimeter Digital CAT II 1000 V, CAT III 600 V Display (counts): 2000
Benning
Sale through:
Conrad Electronic Terms & Conditions
Online available
Show alternatives
€184.99
incl. VAT
plus Shipment
ContentQuantityPiece priceTotal
1 pc(s)1€ 184.99€ 184.99
€ 184.99€ 184.99
incl. VAT
plus Shipment
Report legal concerns

MM 1-3

  • Integrated contact-less Volt sensor
  • compact housing design
  • VDE-GS tested and certified

    Technical specifications

    Voltage reading range DC (min.)

    0.1 mV

    Voltage DC reading range (max.)

    1000 V

    V AC reading range (min.)

    0.1 mV

    V AC reading range (max.)

    750 V

    Amperage reading range DC (min.)

    0.001 A

    A DC reading range (max.)

    10 A

    A AC reading range (min.)

    0.001 A

    Amperage reading range AC (max.)

    10 A

    Reading range - resistance

    0.1 Ω - 20 MΩ

    Reading range - capacity

    1 pF - 2 mF

    Frequency reading range

    1 Hz - 20 MHz

    Temperature

    -20 to +800 °C

    DC resistance

    10 MΩ

    AC resistance

    10 MΩ

    Basic accuracy

    0.5 %

    Measurement type (details)

    Average

    Frequency range

    50 Hz - 500 Hz Hz

    Interfaces

    none

    Power supply (details)

    2 batteries (AAA)

    Height

    150 mm

    Width

    74 mm

    Weight

    270 g

    Manufacturer's standards (no certificate)

    Reading category

    CAT II 1000 V

    CAT III 600 V

    Voltage metering

    AC/DC

    Current reading

    AC/DC

    Type

    MM 1-3

    Display

    Digital

    Display (counts)

    2000

    Dim

    (W x H) 74 mm x 150 mm

    Temperature reading range (max.)

    +800 °C

    Temperature reading range (min.)

    -20 °C

    Basic accuracy

    0.5 %

    Displays

    2000 Counts, LCD

    Product type

    Handheld multimeter

    Documents & Downloads

    User & Safety Instructions
    User & Safety Instructions 122724 Benning MM 1-3 Handheld multimeter Digital CAT II 1000 V, CAT III 600 V Display (counts): 2000
    de PDF
    Download

    Description

    Innovative digital multimeter with volt sensor for the contact-less localization of the phase voltage e.g. for detection of cable break from the feeding side

    Features

    • 2000 counts LC display
    • Automatic/manual range selection
    • Auto power off
    • Measuring functions: AC/DC voltage, resistance, passage and diode testing, AC/DC current up to 10 A, capacity, frequency and temperature.

    Scope of delivery

    • Bag
    • Rubber suspension arrangement
    • 2 Micro batteries
    • Measuring wires
    • Wire temperature sensor with adapter
    • Operating instructions.
