TOOLCRAFT PZ-507 1365635 Crimper set 439-piece Cable lugs, Blade terminals, Blade terminal receptacles, Butt connectors,
Conrad Electronic
€ 95.99*
EAN:
Part number:
Item no:
Packaging type
Bulk
Connector standard
RJ45 Cat6
No. of pins
8P8C
Specification
CAT 6A
Connector type
Plug, straight
Online available
Quantity
€7.99
-65 %
€2.79
you save € 5.20
incl. VAT
plus Shipment
| Content | Quantity | Piece price | Total |
|---|---|---|---|
| 1 pc(s) | 1 | € 2.79 | € 2.79 |
| € 2.79 | € 2.79 | ||
incl. VAT plus Shipment | |||
Bulk Price
| Quantity (In Piece(s)) | Price | Savings |
|---|---|---|
| 1 | € 2.79 | -- |
| 10 | € 2.58 | 8% = € 2.10 |
| 25 | € 2.50 | 10% = € 7.25 |

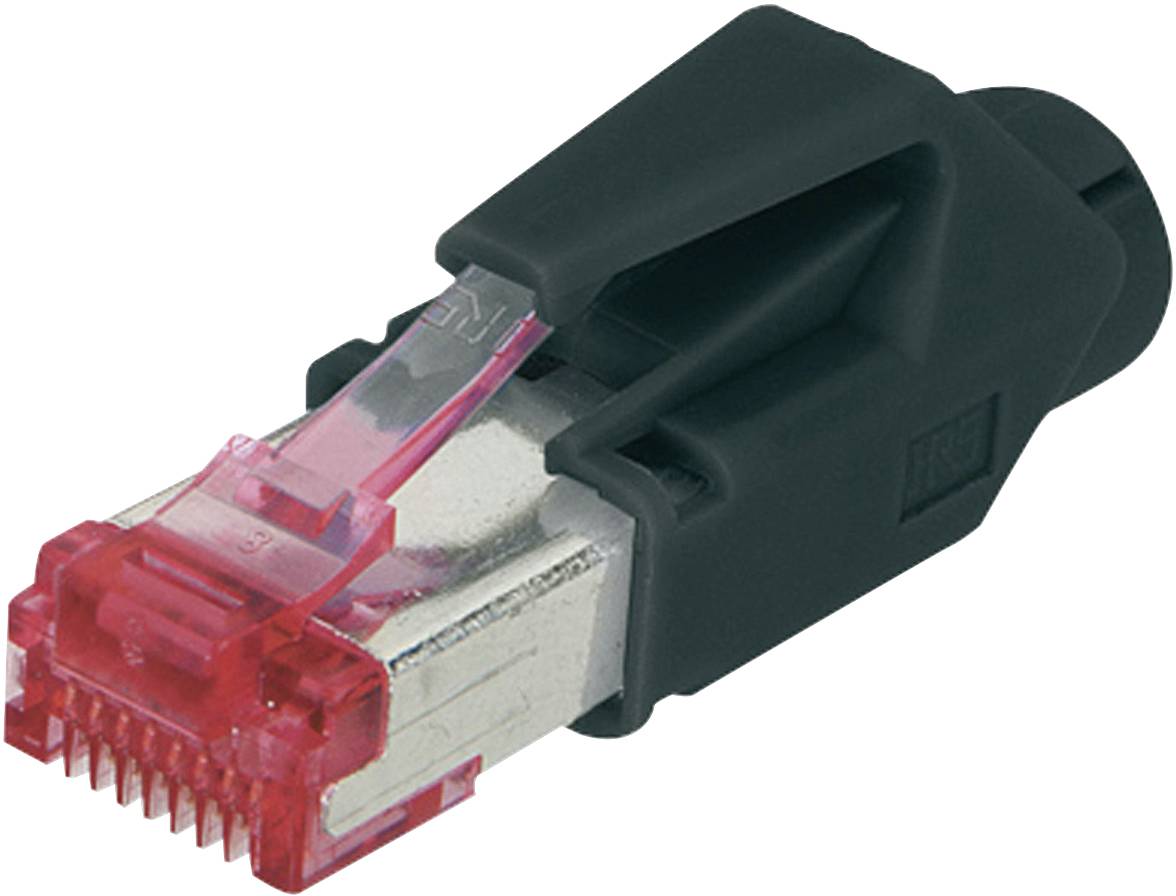

Technical specifications
- Performance property: Cat 6A, 10GBase-T
- Application areas: Patch cable assembly
- Fully shielded with strain relief for installation cable
- Incl. Comb
- plug cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Material plug-in
- casing: Polycarbonate, natural plug contact: Phosphor bronze, nickel 0.8 μ gold-plated Material shield plate: Brass 0.5 mm, 2 μ nickel-plated Flammability: UL 94V-2 insertion force: 30N max. (IEC 60603
- -5 Cu) Diameter: AWG (27/7 ... 24/7)
- Operating temperature: -20 °C to +60 °C
- Current carrying capacity: 1A at 50 °C
- Extra diameter Cable sheath: 5.5 ... 6.2mm
- Connection type: Crimp
- Design: Plug
- (Plug) AWG Range (MIN): 5.5 … 6.2
- Color: Transparent
- suitable for flat cable: no
- suitable for stranded conductor: Yes
- suitable for solid conductor: no
- suitable for round cable: Yes
- shielded: Yes
- Category: 6A (IEC)
- Special tool required: Yes
- Connector type: RJ45 8(8)
- Packaging type
Bulk
- Type
A-MO6A 8/8 HRS
- Content
1 pc(s)
- Connector standard
RJ45 Cat6
- Height
12.9 mm
- Length
44.65 mm
- Width
13.4 mm
- Features
shielded housing
+ strain relief gland
- Connection
Cut & Clip
- Material
Polycarbonate (PC)
- No. of pins
8P8C
CAT 6A
- AWG max.
22
- AWG (min.)
23
- Connector type
Plug, straight
- No. of rows
1
- Contact material
Phosphorus bronze gold plated
- RoHS-compliant
Yes
- Max. temperature
60 °C
- Min. temperature
-20 °C
- Weight
1 g
- Product type
RJ45 connector
