USB 3.0 HUB, 7-port, industrial, metal incl. PSU 15 kV ESD, table, wall, DIN rail mounting
- Additional 7x USB-A 3.0 ports with up to 5 Gbit/s.
- The robust metal housing and various attachments enable a flexible mounting at support rails or different surfaces
- 15kV ESD protection: The USB hub is protected against electrostatic discharge, WAS makes it particularly suitable for use in industrial environments
- Thanks to the SuperSpeed USB 3.0 standard, fast data transfer rates of up to 5 Gbps are possible - USB 2.0 & USB 1.1 are also supported by downward compatibility
- With the integrated DC connection, it is possible to power the USB Hub additionally via an external mains unit
- Compatible with many operating systems e.g. MacOS, Windows and Google Chrome OS
Technical specifications
- No. of outputs
7 x
- Interfaces (output)
USB
USB A (USB 1.1)
USB A (USB 2.0)
USB A (USB 3.0)
USB type A
- Cable length
2 m
- Transfer rate
5 GBit/s
- Power supply (LOV)
mains-powered
via DC in
- Factory colour
Black
- Distributor/switch features
meets industrial requirements
Steel casing
+ LED indicator lights
suitable for indoor and outdoor use
PC-controlled
wall mount option
- Width
139 mm
- Height
69 mm
- Depth
25 mm
- Weight
304 g
- Product type
USB 3.0 hub
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 3350650 Digitus DA-70258-1 7 ports USB 3.0 hub meets industrial requirements, Steel casing, + LED indicator lights, suitable for |  PDF |
Description

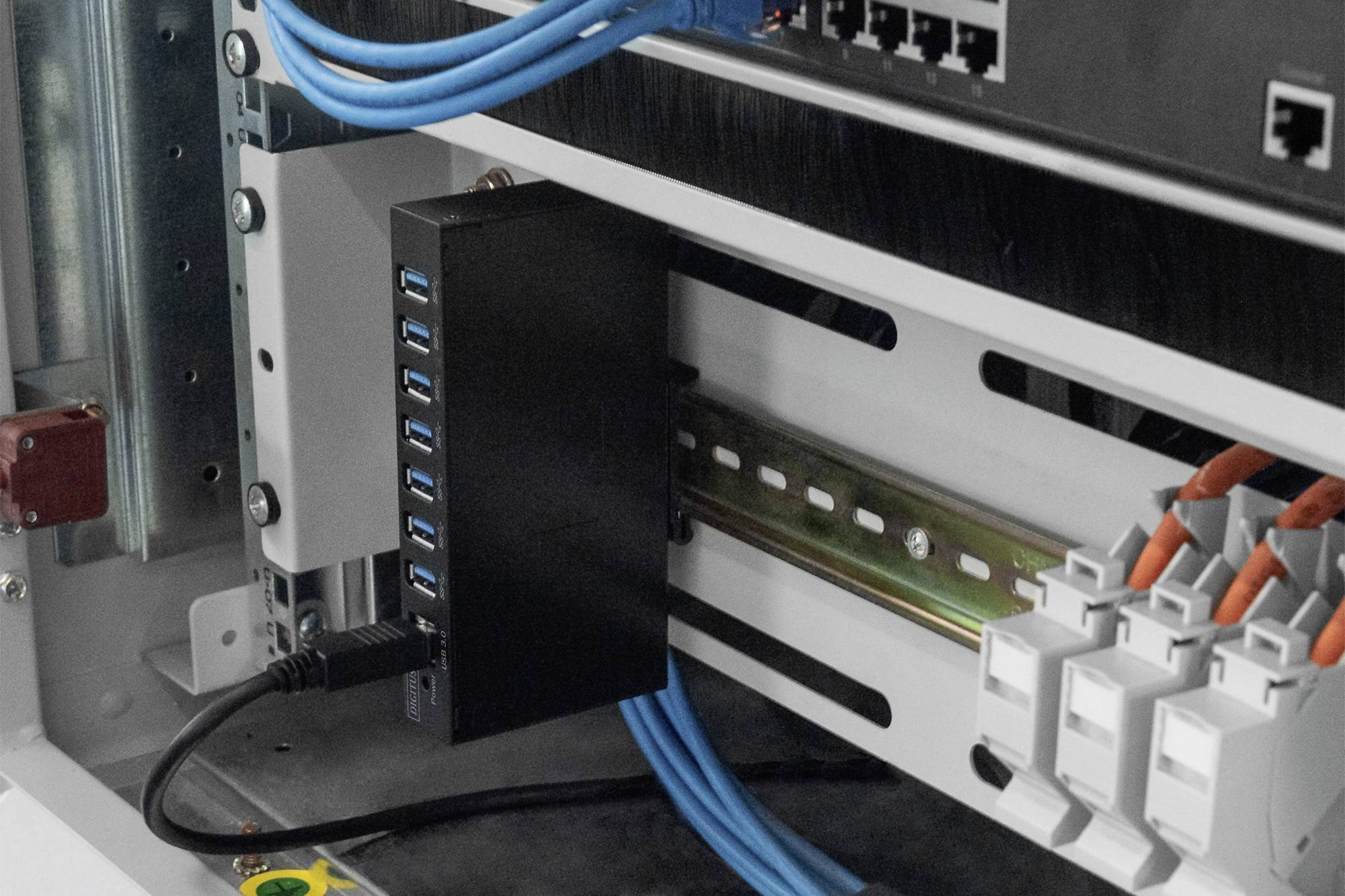

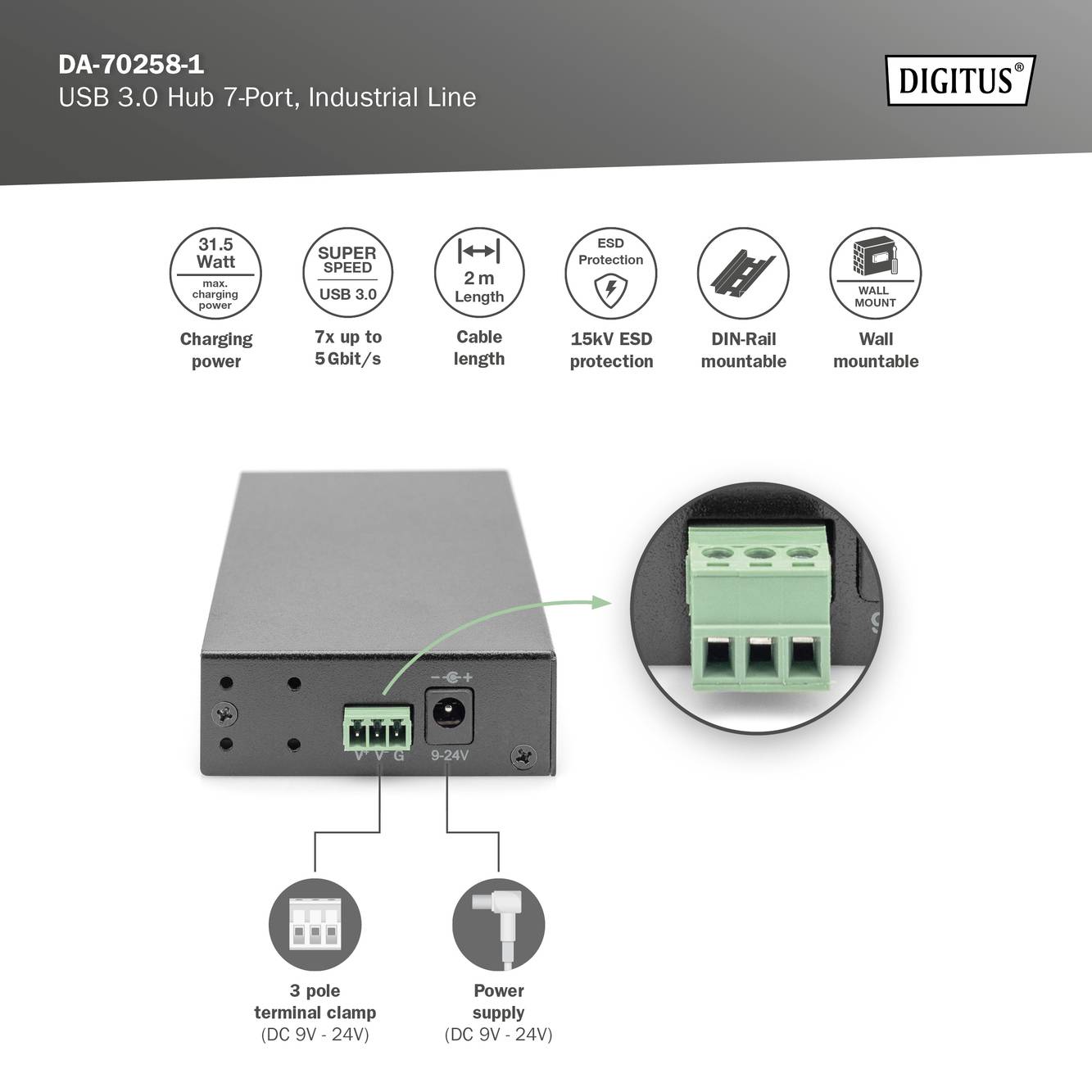

The Digitus® Industrial USB 3.0 Hub is suitable for industrial applications due to its metal housing Ideal. It can be mounted on the wall or on a carrier rail and is connected to computer, notebook or server with the provided USB 3.0 cable. It supports USB 3.0 superspeed with a data transfer rate of up to 5 Gbit/s, at the same time, the hub is backward-compatible with USB 2.0 and USB 1.1. The hub can be supplied with power via a two-wire terminal strip connection (+9V to 24V). Optionally an external power supply can be connected to the DC-jack.
This text is machine translated.
This text is machine translated.

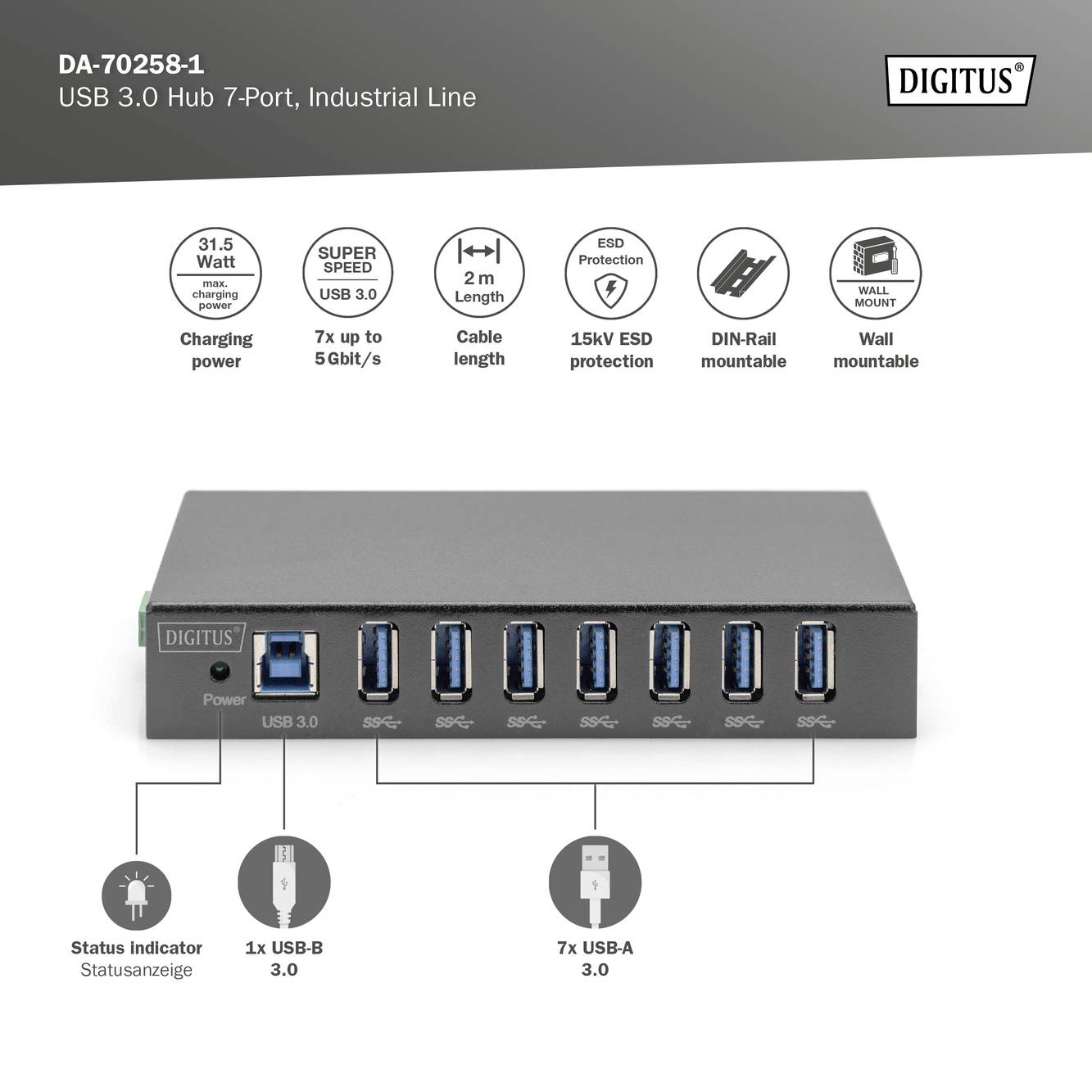

Features
- USB 3.0 metal hub with seven downstream ports
- Automatic detection of the input polarity at the current terminal strip
- ESD protection up to 15 kV for all ports

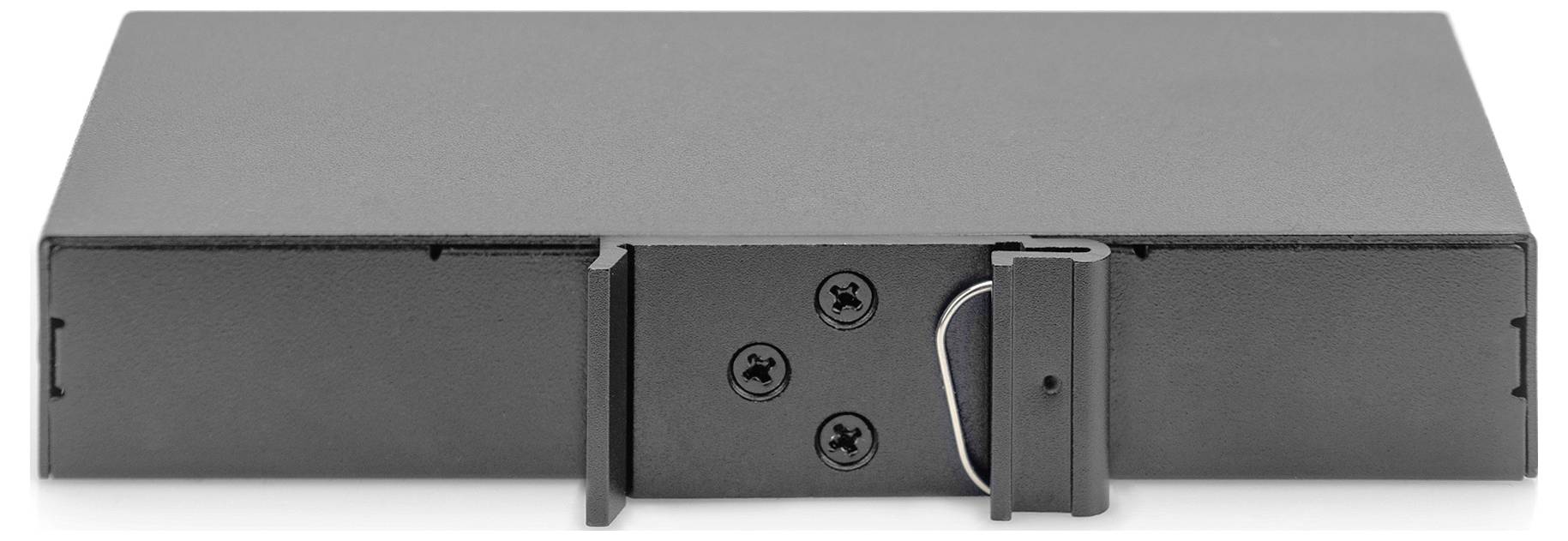

- Including removable wall mounting kit and DIN-rail kit
- Compact industrial design with metal housing
- Colour, black
Scope of delivery
- 1 x USB Hub
- 1 x cable USB A plug to USB B plug, length approx. 2 m
- 2 x wall mounting plates, with screw set
- 1 x DIN rail mounting 25 mm
- 1 x 3 pin terminal block
- 1x power supply 12V/3A
- User manual
Hints
Battery Charging Specification BC1.2 (SDP), maximum 31.5 W (6.3 A @ 5 V)

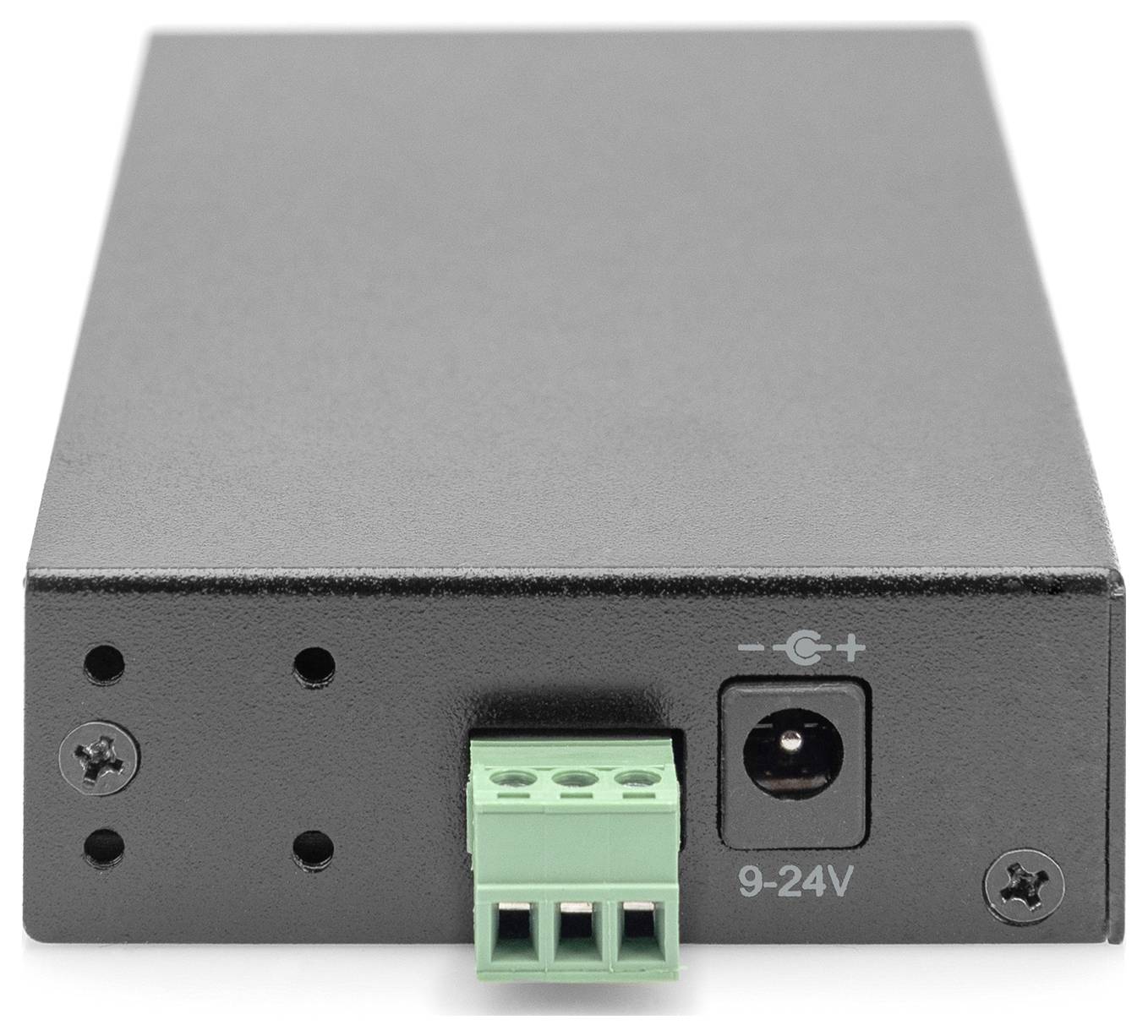

Power supply: +9 V to +24 V DC via terminal Block or DC jack (dimensions: (AD) 5.50mm x (ID) 2.0mm (L) x 10mm)
