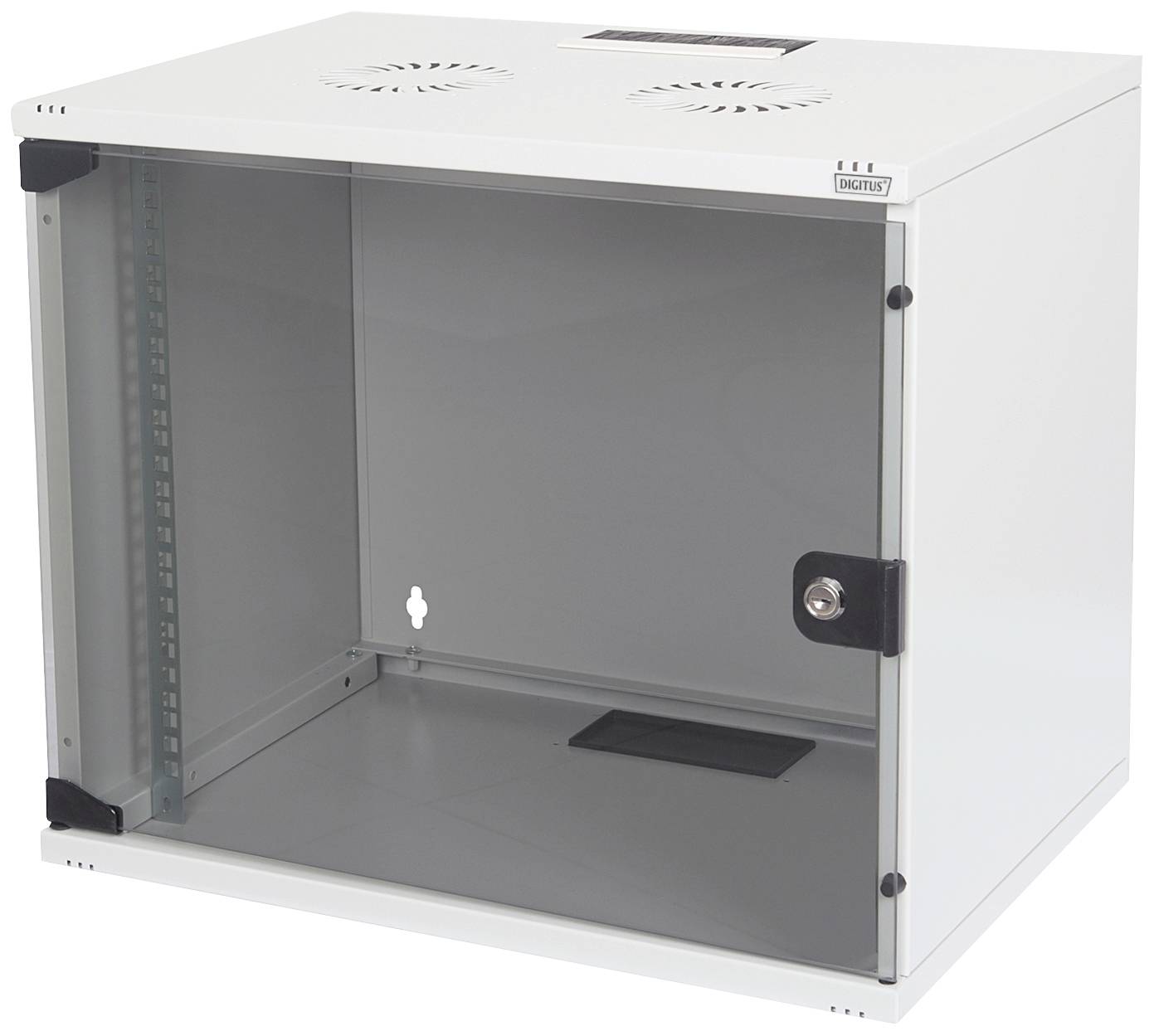

Name: Digitus DN-19 07U-S-1 19" wall cabinet (W x H x D) 520 x 360 x 400 mm 7 U Grey-white (RAL 7035)
Brand: Digitus
SKU: 703930
Availability: InStock

Item 1 of 2

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

€77.99

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 77.99	€ 77.99
		€ 77.99	€ 77.99
incl. VAT plus Shipment

Report legal concerns

SoHo Wall Mounting Cabinet, unmounted - 540x400 mm (WxD)

The DIGITUS® Compact Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

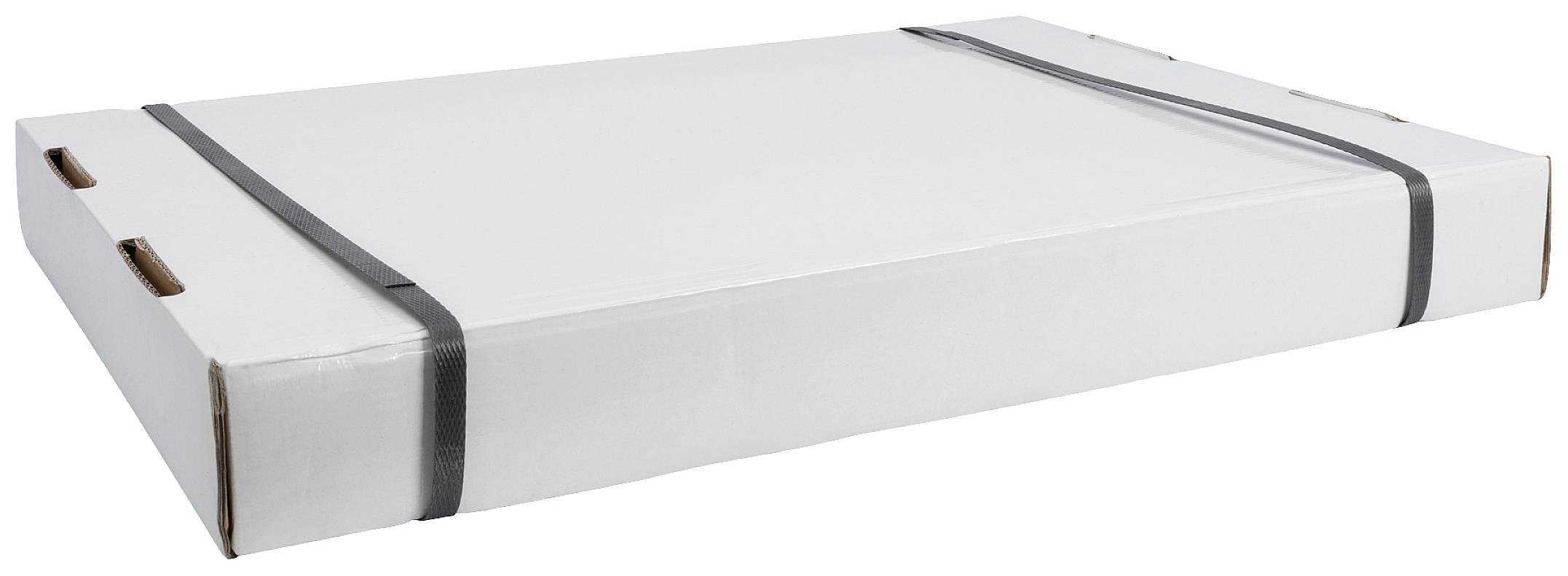

Unmounted flat package delivery for cost- and space effciency
Optimized air ventilation and exhaustion
Lockable glass door ensures safety

Dim: (W x H x D) 520 x 360 x 400 mm

Factory colour: Grey-white (RAL 7035)

Depth: 400 mm

Height: 360 mm

Width: 520 mm

Rack unit: 7 U

Material: Safety glass
Steel

Wireless charging: No

Weight: 10 kg

Plastic free packaging: Plastic-free packaging

Product type: 19" wall cabinet

User & Safety Instructions
User & Safety Instructions 703930 Digitus DN-19 07U-S-1 19" wall cabinet (W x H x D) 520 x 360 x 400 mm 7 U Grey-white (RAL 7035)	PDF	Download

The DIGITUS® Compact Series is a range of 19" wall mount enclosures developed for installation of both cabling and equipment. The enclosures are special designed to save a lot of space and are ideal for use a wide range of applications in the 19" area. The enclosures are designed for an optimal performance and come with a lot of features like quick release front door and fully adjustable profiles. The access on the top and the base of each cabinet makes the installation of the cabling very flexible, easy and time-saving. A full range of DIGITUS® accessories are available to complete the installation of the wall mounting cabinets with professional products.

· 1.5 mm strong sheet steel with high load capacity, powder coated
· Ventilation slots for active and passive ventilation and exhaustion
· IP 20
· Lockable Safety-glass door
· 483 mm (19") profile rails , adjustable in depth
· Cable entry on top and bottom
· Inclusive 8 pieces mounting set
· Extensive range of accessories available
· Unmounted, flat package

Features

Protection class: IP20Lockable safety glass door200° door opening angle1-point lock on the front door483 mm (19") rails mounted on the front inside the cabinet, galvanizedDepth adjustable with 483 mm (19 ") rails1.1 - 1.5 strong steel sheet with a high load capacity, powder-coatedCable input with brush strip in the roof and with plastic cover in the groundRoof is prepared for receiving a fan element (punched pictures)Ventilation slots for active and passive ventilationMounting depth for components min.-max. 170-270 mmWidth 540 mmColour: Light gray, RAL 7035Front door: Glass door, single-leafHE 7Cabinet type: Wall housingSide walls: Both sidesDepth: 400 mm60 kg load capacityIP protection class IP20Mounted: No.
