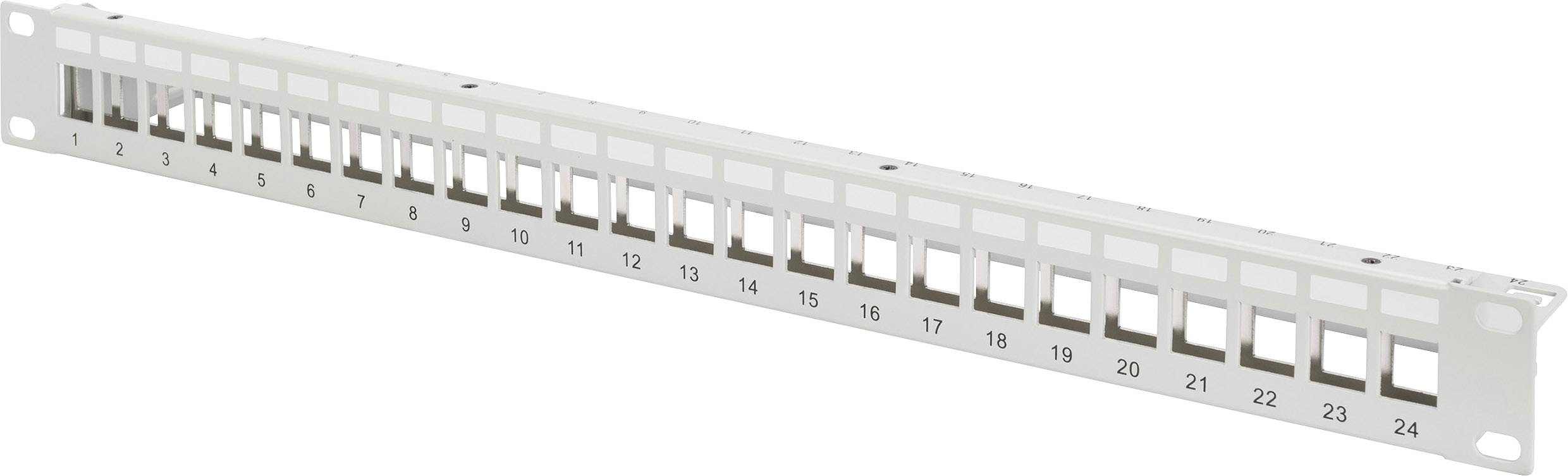

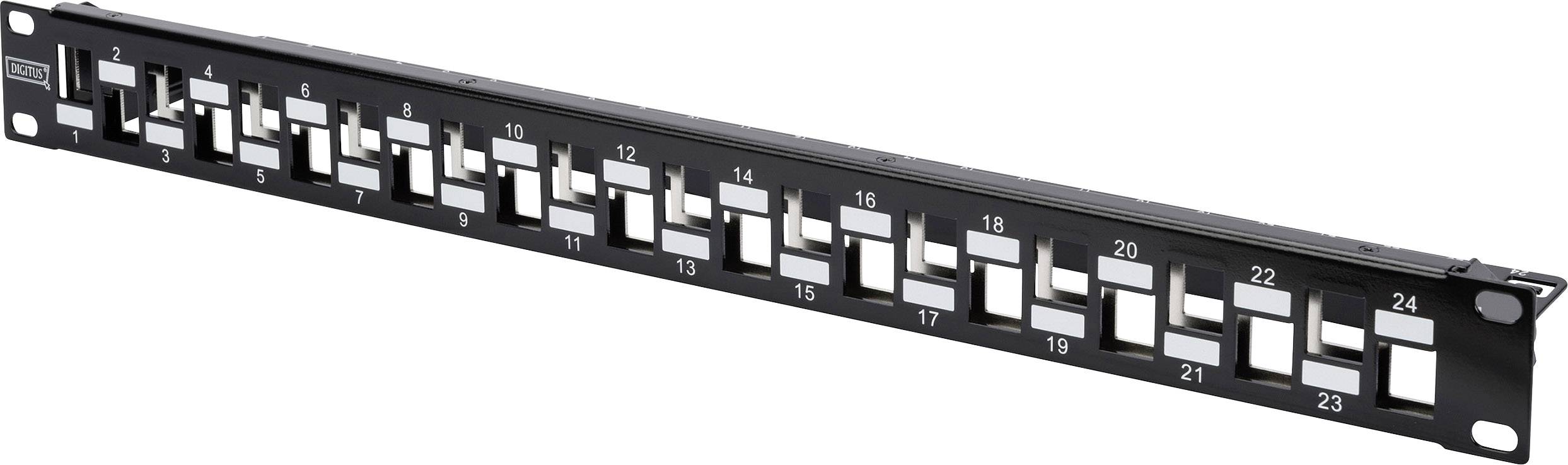

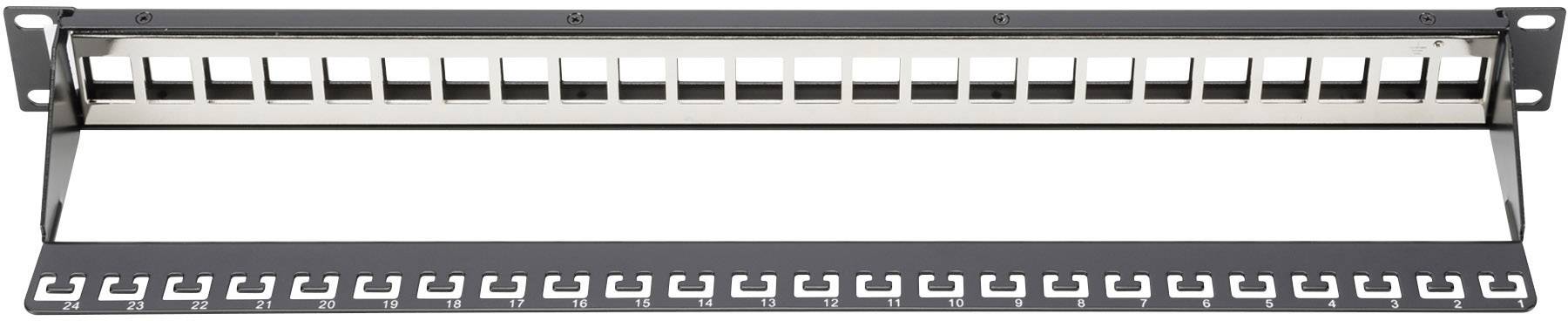

Digitus DN-91411 24 ports Network patch panel 483 mm (19") Unequipped 1 U Multicolour Unequipped
Conrad Electronic
€ 13.99*
EAN:
Part number:
Item no:
Item 1 of 16
Sale through:
Online available
Ready for dispatch: Tue 9.9. - Wed 10.9.2025
-50 %
€3.49€6.99
you save € 3.50
incl. VAT
plus Shipment
Quantity
| Content | Quantity | Piece price | Total |
|---|---|---|---|
| 1 pc(s) | 1 | € 3.49 | € 3.49 |
| € 3.49 | € 3.49 | ||
incl. VAT plus Shipment | |||
Bulk Price
| Quantity (In Piece(s)) | Price | Savings |
|---|---|---|
| 1 | € 3.49 | -- |
| 5 | € 3.31 | 5% = € 0.90 |
| 10 | € 3.23 | 7% = € 2.60 |

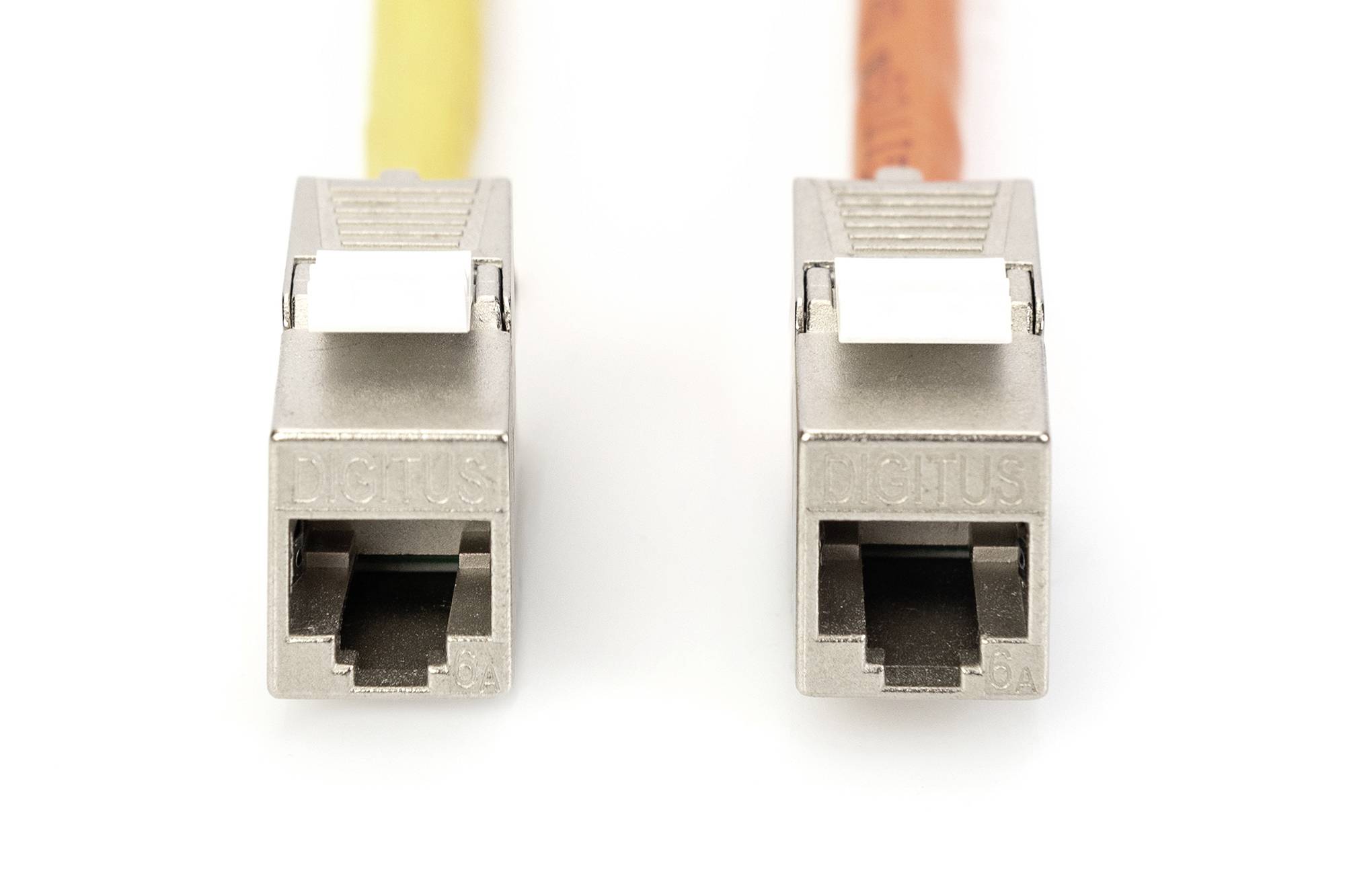

CAT 6A Keystone Module, shielded, toolfree
- Quick and safe wire terminations without any special tool
Technical specifications
- Compatible with
Keystone
- Product type
RJ45 module
CAT 6A
- Tool-free installation
Yes
- Factory colour
Multicolour
- Rack size
483 mm (19")
- Weight
21.00
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1431384 Digitus DN-93615 RJ45 module Keystone CAT 6A |  PDF |
Description

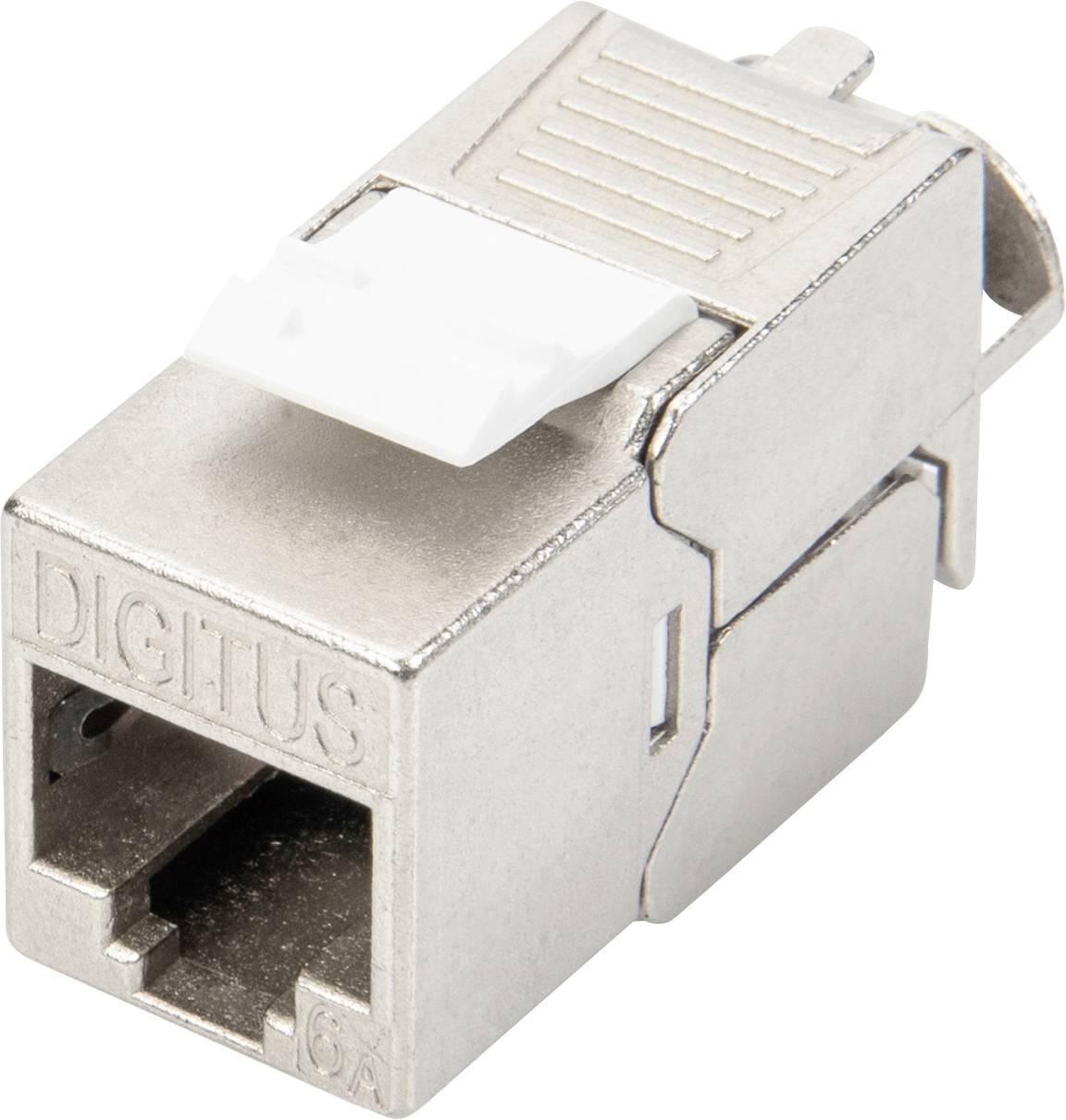

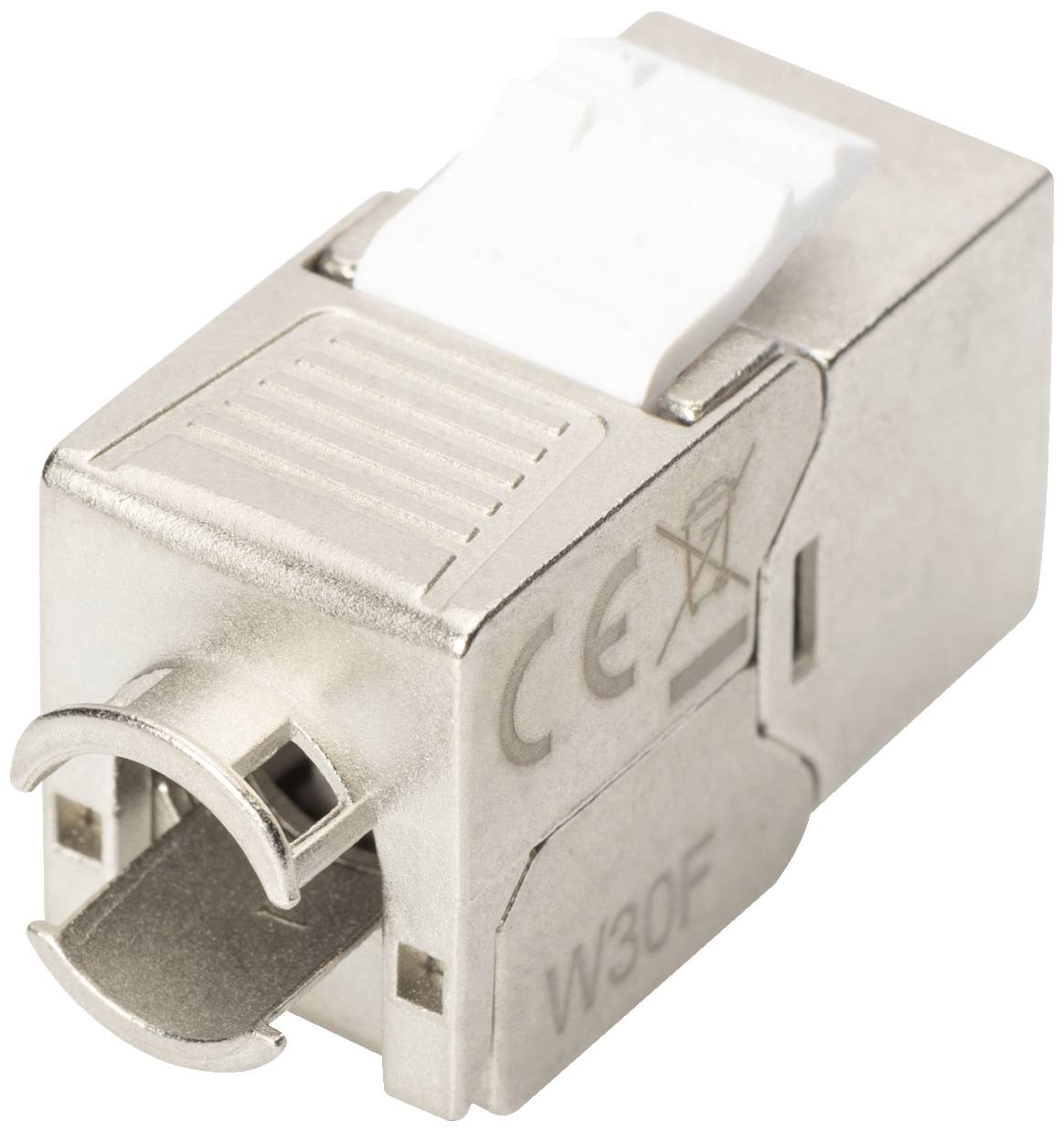

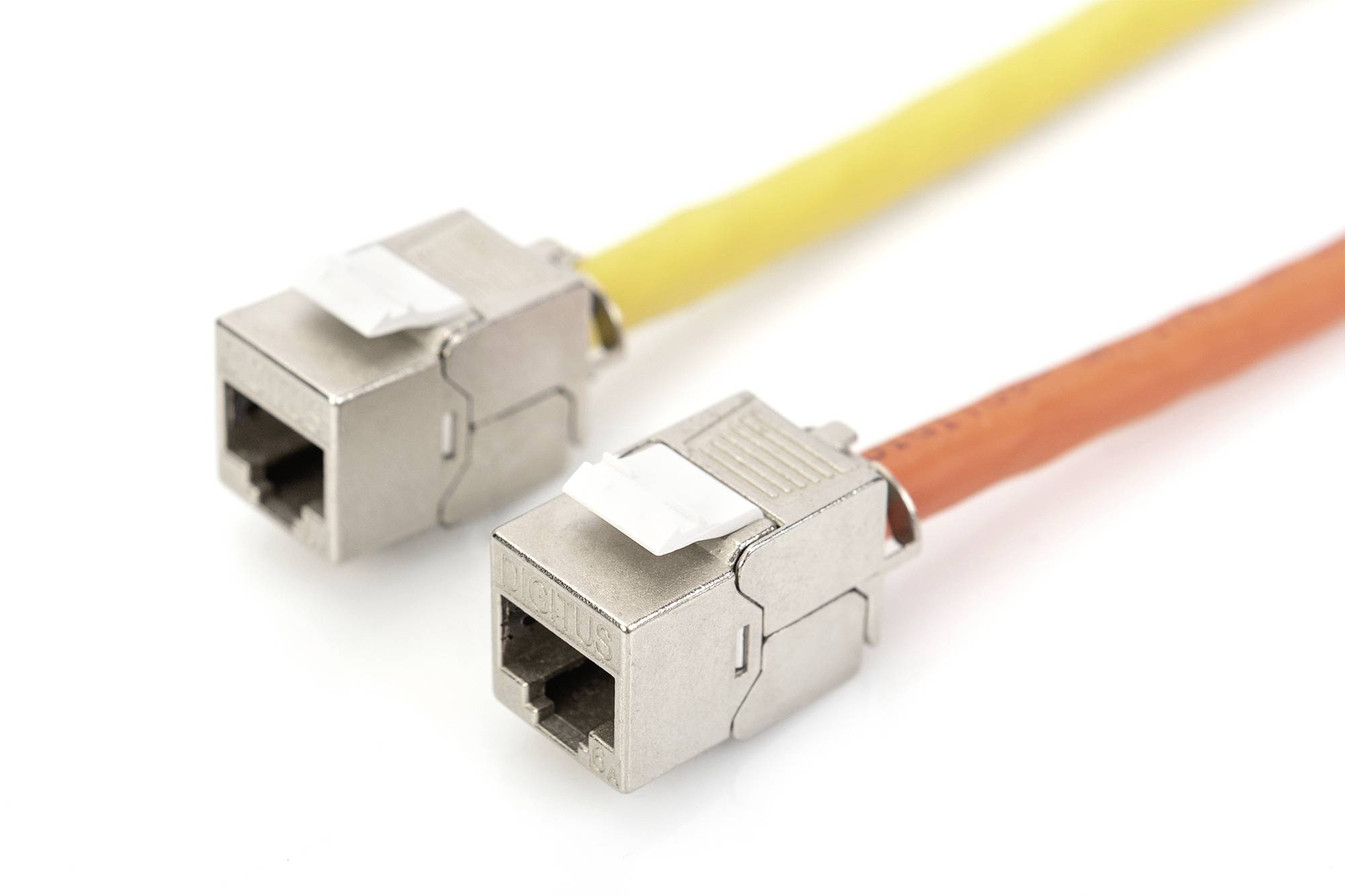

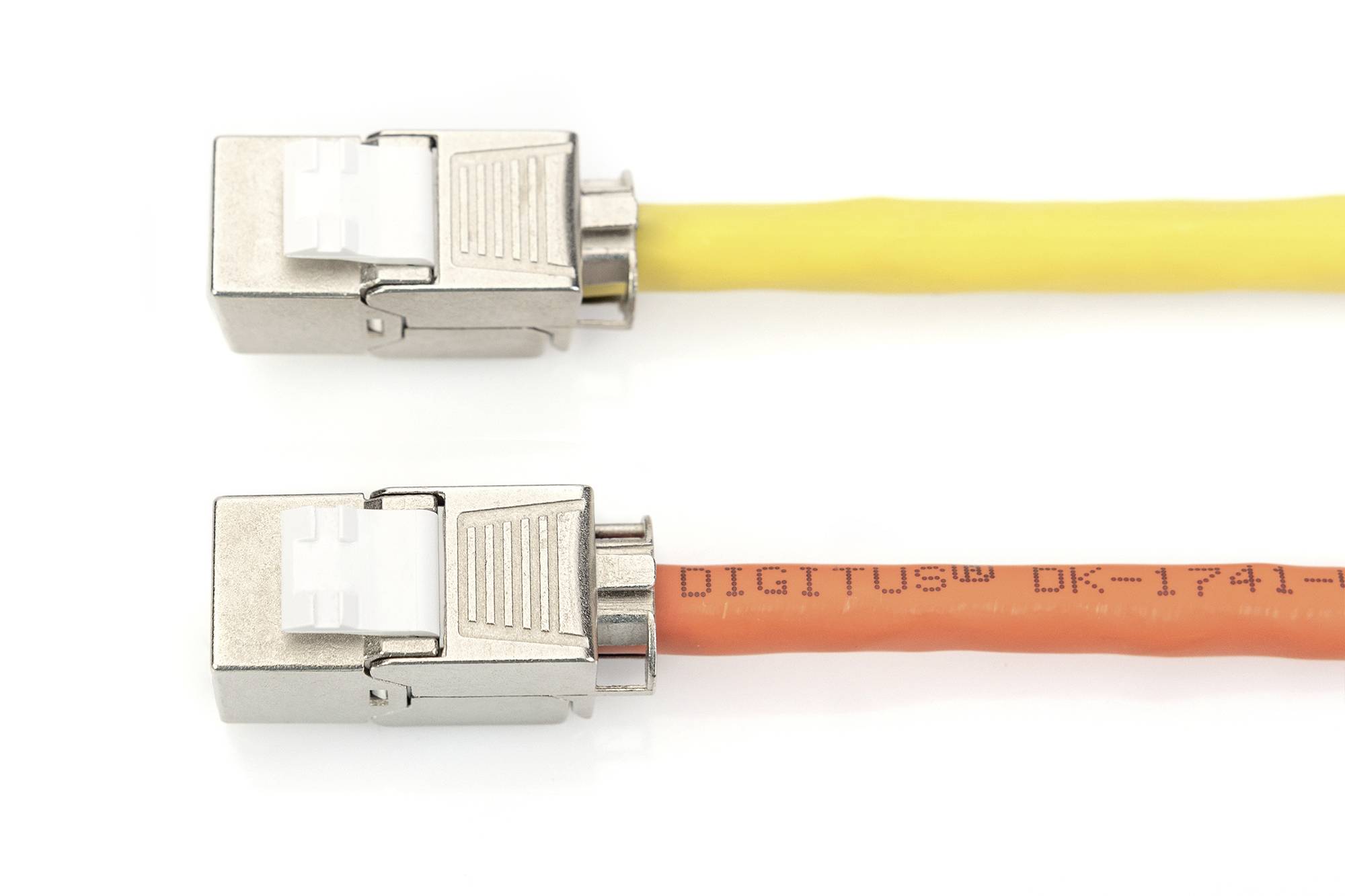

The Item "DN-93615" of the brand DIGITUS® is a shielded CAT 6A Keystone Module with tool free installation which provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U panels. It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002, ISO/IEC 11801:2002.
· Transmission properties: Category 6A, Class EA
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· General properties:

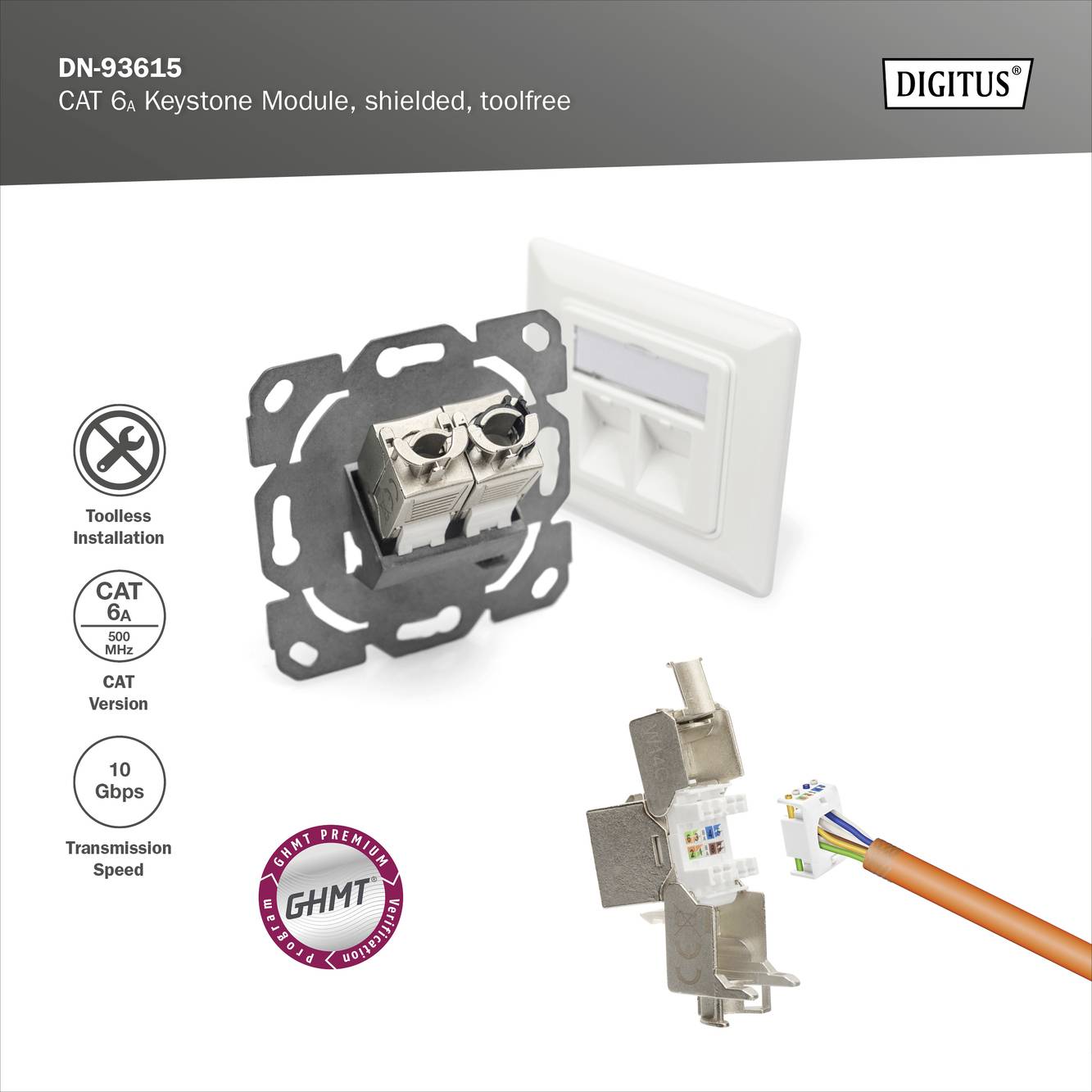

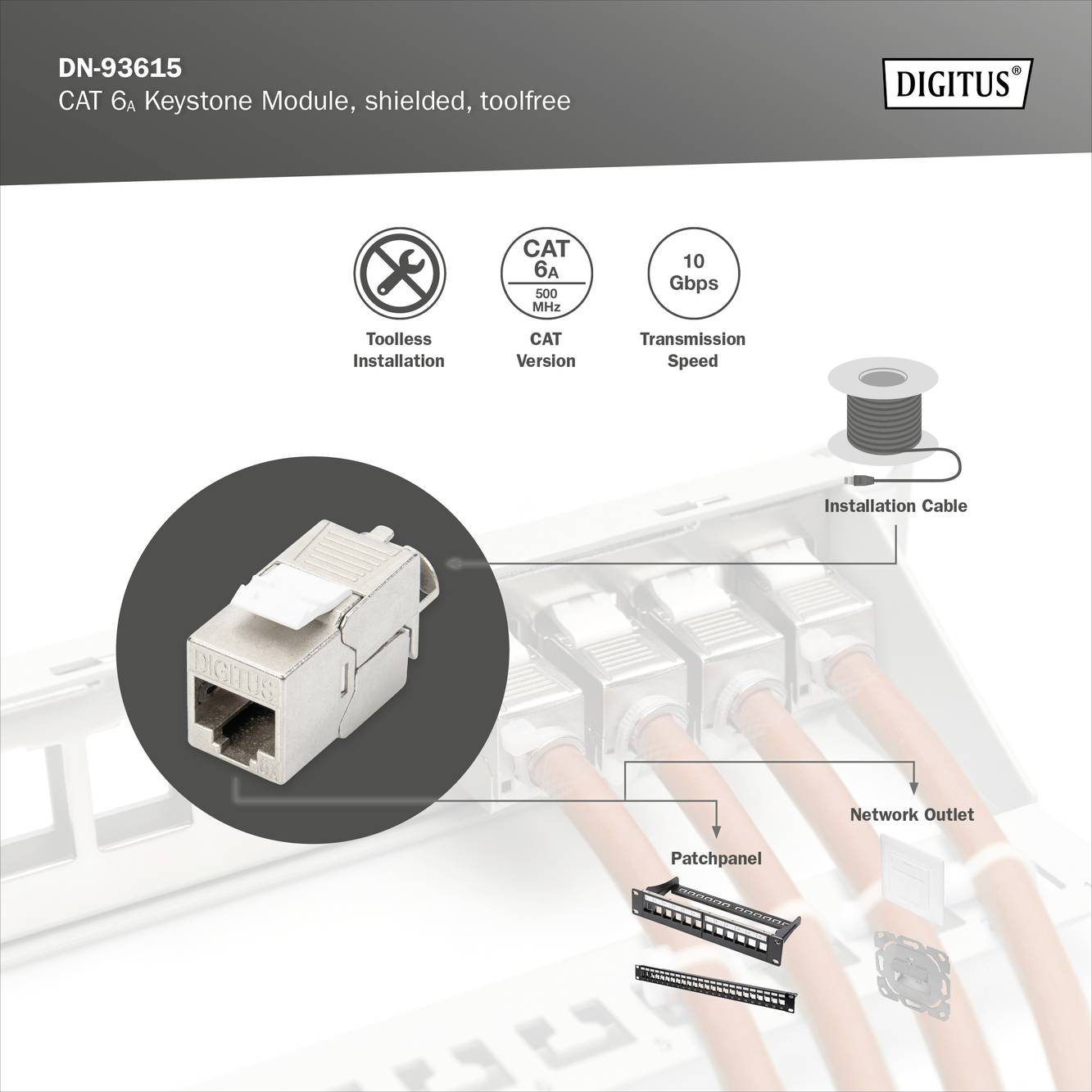

· Suitable for patch panels and mounting outlets
· RJ45 female, 8P8C
· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
· Cable fixing with cable tie
· Tool-free installation

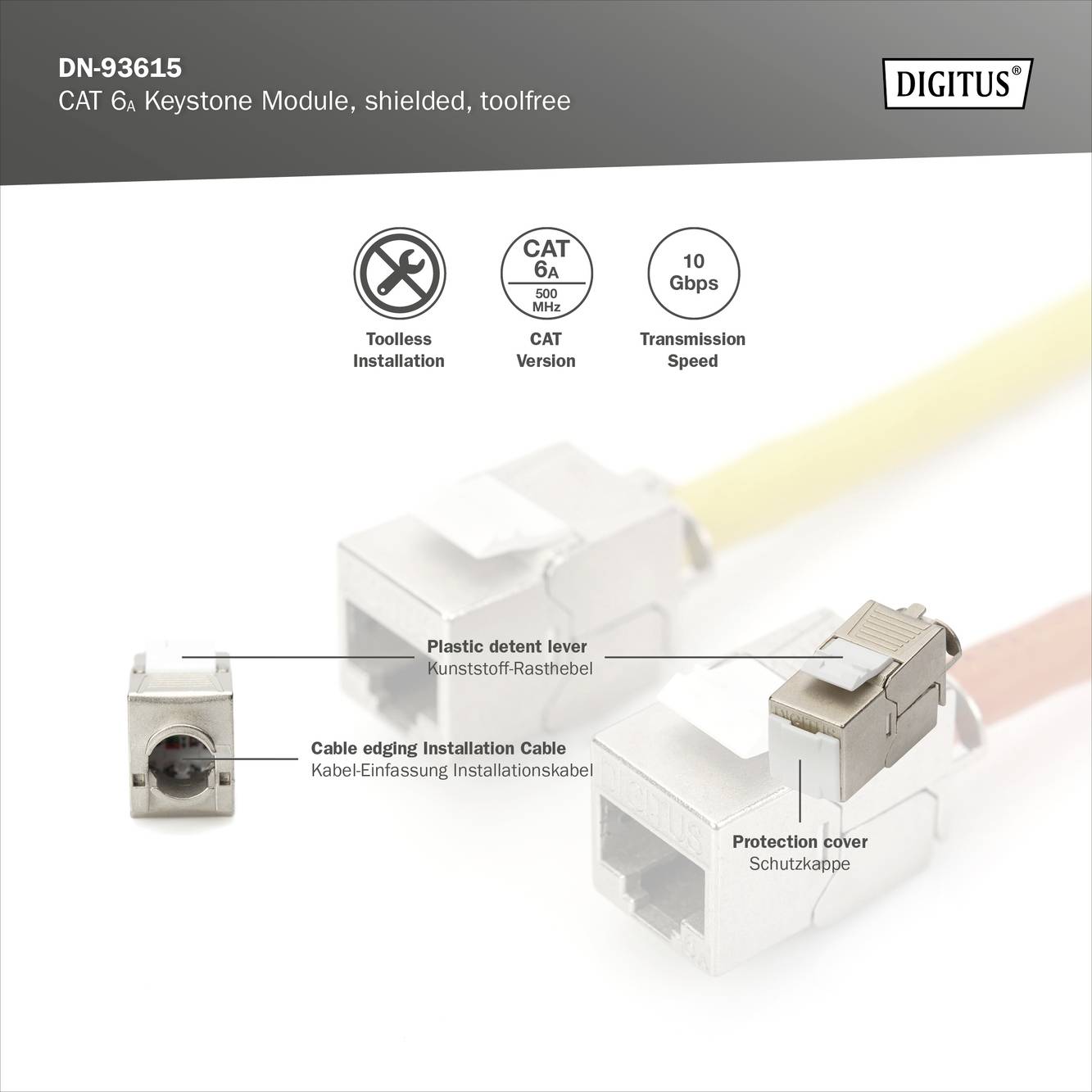

· 360° shield coverage
· Dust cover included
· Technical properties:
· Housing material: Zinc die-cast, nickel-plated
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
· Transmission properties: Category 6A, Class EA
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· General properties:
· Suitable for patch panels and mounting outlets
· RJ45 female, 8P8C
· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
· Cable fixing with cable tie
· Tool-free installation
· 360° shield coverage
· Dust cover included
· Technical properties:
· Housing material: Zinc die-cast, nickel-plated
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Features
- Case material: die-cast zinc-plated
- Contact material: Phosphorbronze
- 360° contact of the cable shield for improved EMC protection
- Coating Contacts: Nickel, gold-plated 0.5 μ
- Operating temperature: -10 °C ~ +60 °C (ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
- Material pcb: FR4, UL 94 V-0, 1.45 mm thick
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Cu wire diameter: AWG (26... 22), flexible and solid
- RJ45 connector for patch panel mounting

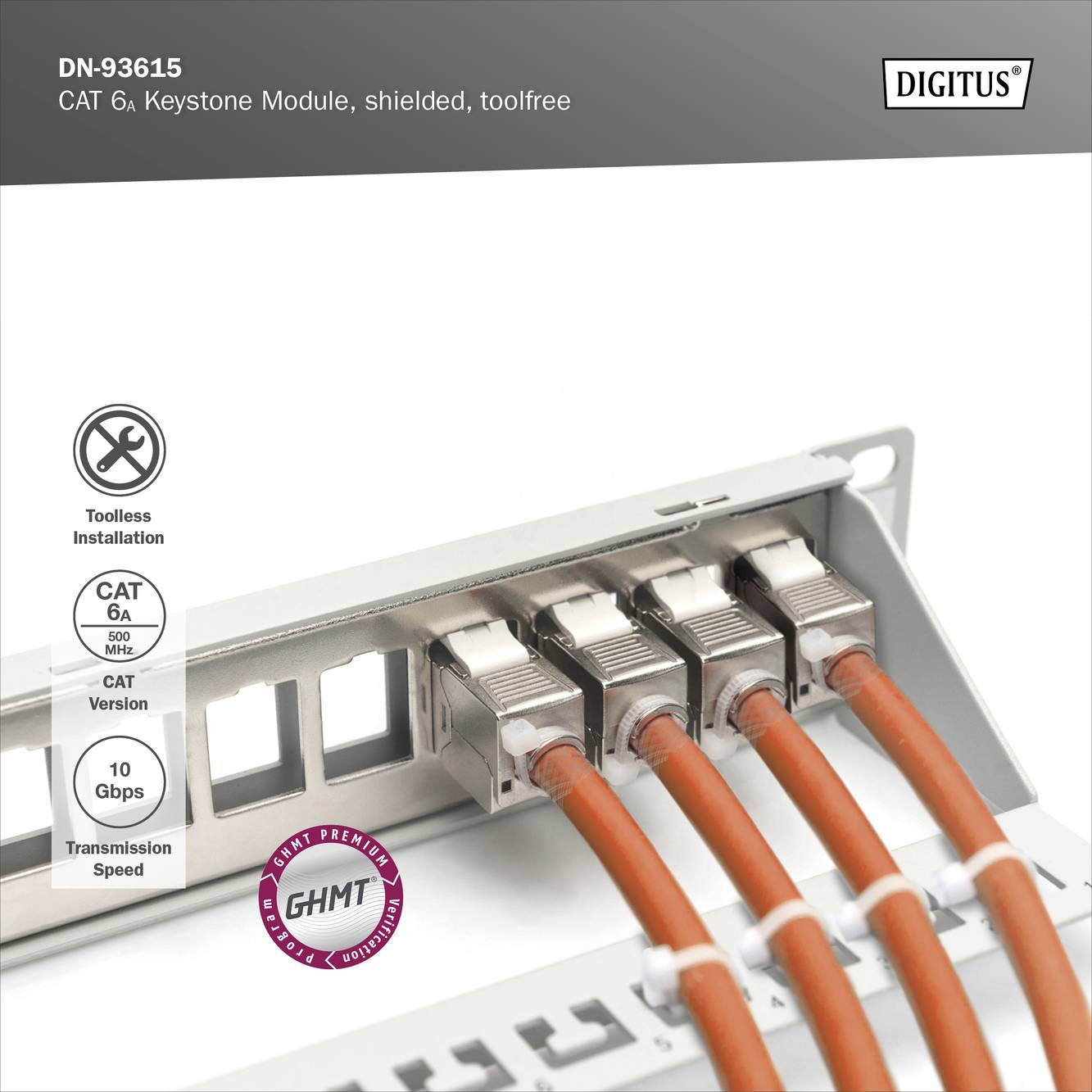

- Compact design allows series installation of 24 pieces in 483 mm (19") 1 HE panels
- Opening dimension in accordance with Keystone Standard 19.35 mm x 14.8 mm
- Suitable for combination with design covers from well-known manufacturers of switch material such as Busch-Jaeger
- Suitable for combination with design covers of switch material PEHA
- Suitable for combination with design covers of switch material FELLER (CH) EDIZIOdue
- By short design Simple assembly in bottom tanks, surface-caps, distributor fields and table housings
- The IEEE 802.3at POE+ ensprechend
- Meets the requirements according to IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801. 2.
- Size (HXWXD): 20.1 4.34 mm
