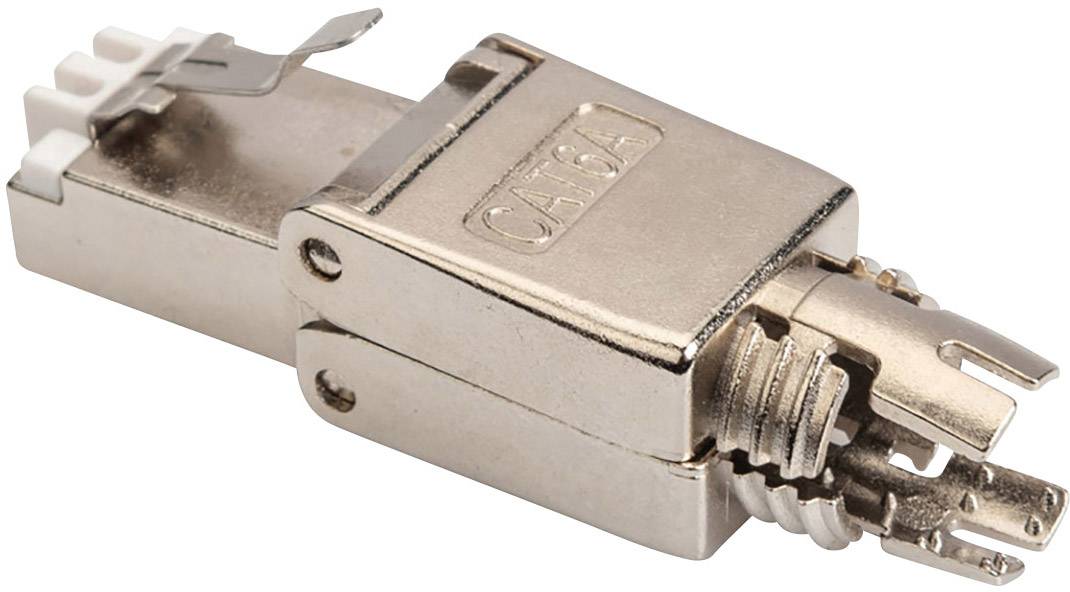

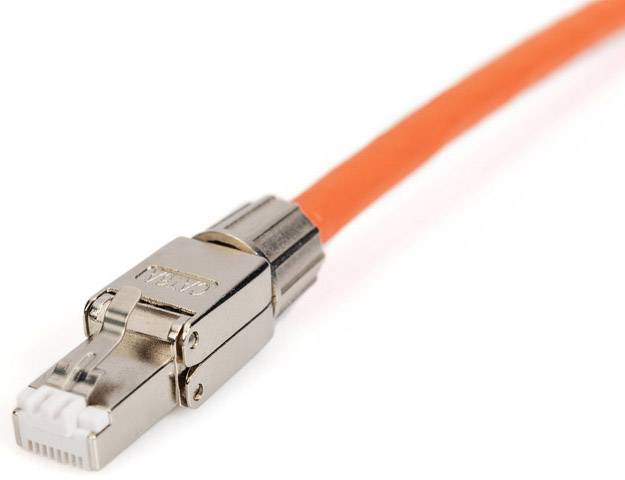

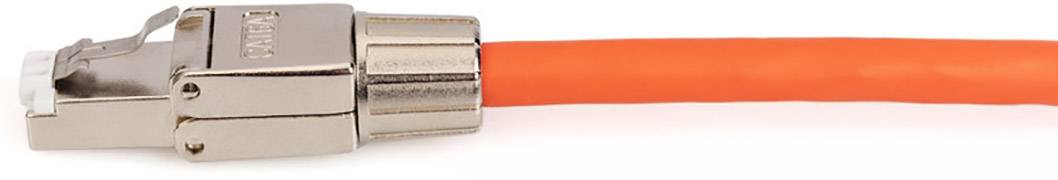

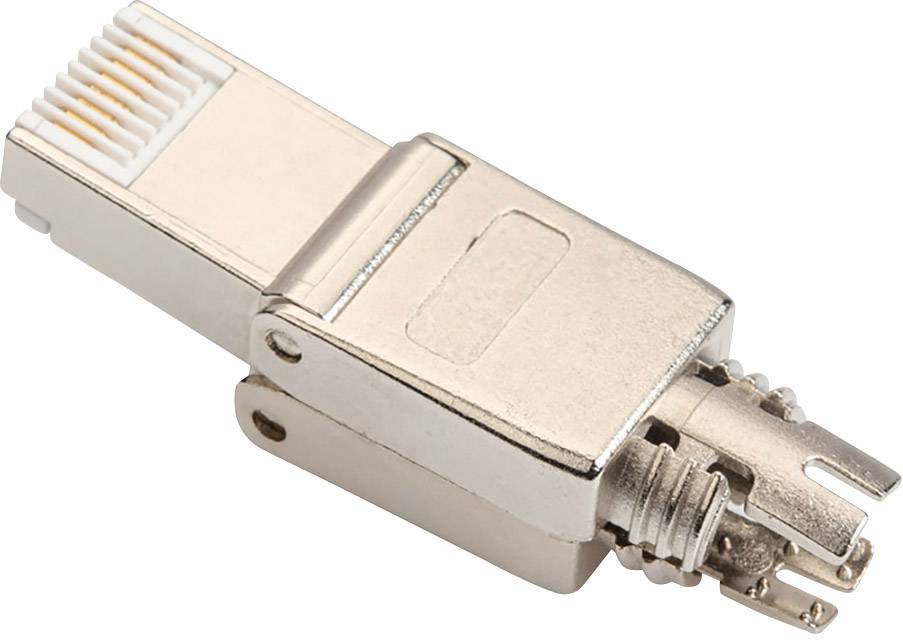

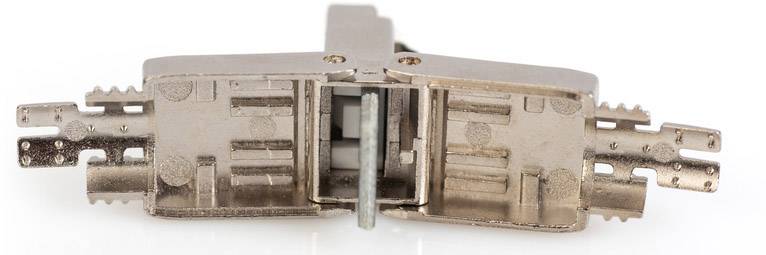

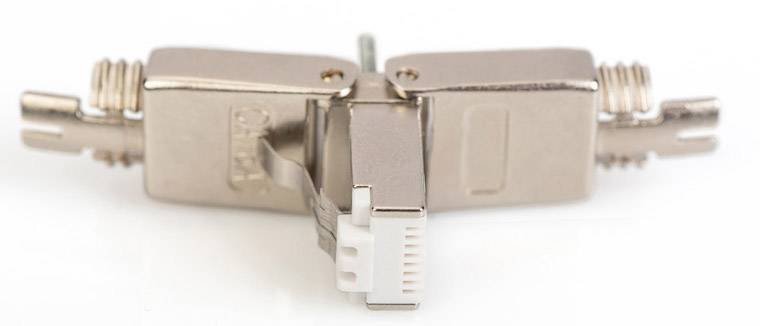

Name: Digitus DN-93634 Cat 6A field plug, RJ45, shielded, AWG 22-27, tool-free mounting connection DN-93634 Plug, straight No.
Brand: Digitus
SKU: 2182404
Availability: InStock

Item 1 of 10

Connector standard

RJ45

No. of pins

8P8C

Specification

CAT 5e

CAT 6

CAT 6A

CAT 6a (CAT 7 cable)

Connector type

Plug, straight

Product type

RJ45 plug

Online available

Quantity

Piece(s)

€9.99

incl. VAT

plus Shipment

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 9.99	€ 9.99
		€ 9.99	€ 9.99
incl. VAT plus Shipment

Sales and shipping: Conrad Electronic

Terms & Conditions

Ready for dispatch: Wed 10.9. - Thu 11.9.2025

Bulk Price

Quantity (In Piece(s))	Price	Savings
1	€ 9.99	--
3	€ 9.59	4% = € 1.20

Report legal concerns

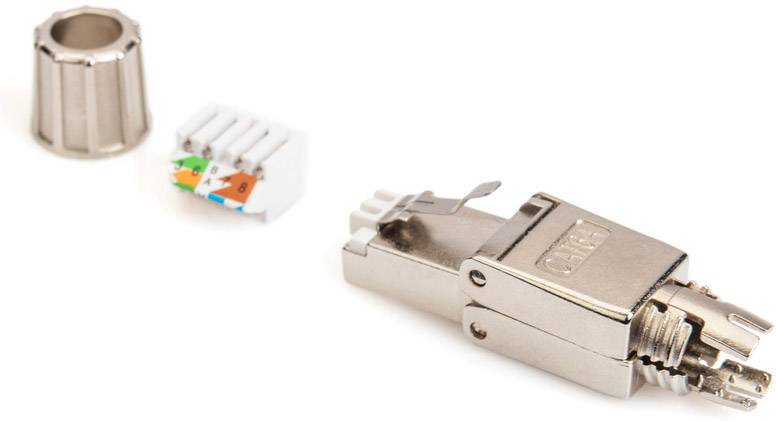

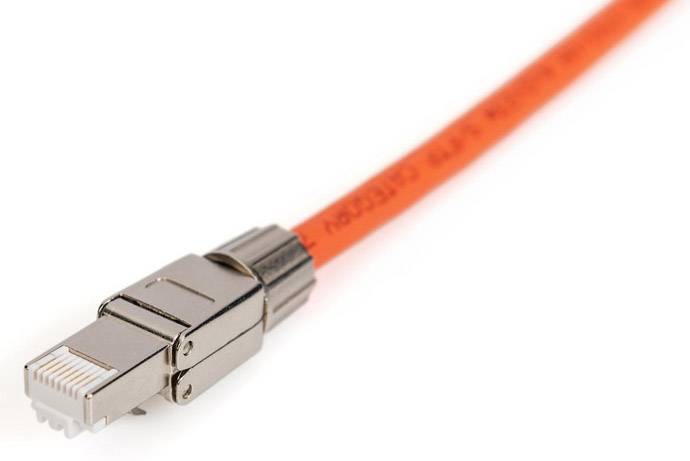

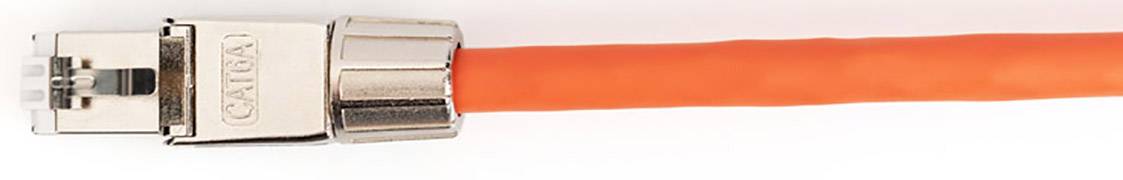

Cat 6A field plug, RJ45, shielded, AWG 22-27, tool-free mounting connection

Robust, durable housing made of metal
Can be assembled in 60 seconds without the need for special tools
Optimized for field use, even under difficult conditions
Ideal for repair and extension of networks
Safe transmission even in case of external interference
Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3bt)

Material casing: Die-cast zinc - nickel-plated
Contact material: Phosphorbronze
Contact coating: Nickel, gold plated 0.5 µ
Insertion force: Max. 30N (acc. To IEC 60603-7-5)
Holding force: 7.7 kg between socket and plug
Operating temperature: -20°C to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: Greater than 750 (ISO/IEC 11801, IEC 60603-7-5)
Diameter of copper conductor: AWG (26/7 - 22/1), strands and solid wire

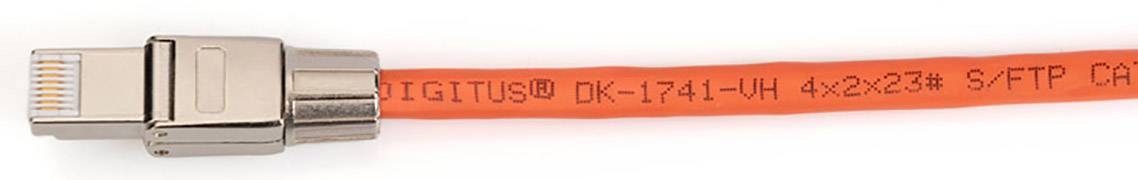

Tested with AWG 22/1 solid installation cable (DIGITUS® DK-174X-A-VH-X, AWG 22/1 CAT 7A laying cable)
Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
Colour: Silver.
Design: Plug
Connection type: Cut&clamp
Shielded: Yes
Category 6a (IEC)
Suitable for round cable: Yes
Suitable for stranded conductors: Yes
Suitable for solid conductors: Yes
AWG range 26 … 22

Type: DN-93634

Content: 1 pc(s)

Factory colour: Silver

Connector standard: RJ45

Connection: Cut & Clip

Seal type: Push

No. of pins: 8P8C

: CAT 5e
CAT 6
CAT 6A
CAT 6a (CAT 7 cable)

AWG max.: 22

AWG (min.): 27

Connector type: Plug, straight

Contact material: Gold plated

RoHS-compliant: Yes

Tool-free installation: Yes

Weight: 0.020

Product type: RJ45 plug

User & Safety Instructions
User & Safety Instructions 2182404 Digitus DN-93634 Cat 6A field plug, RJ45, shielded, AWG 22-27, tool-free mounting connection DN-93634 Plug, straight No.	PDF	Download

The DIGITUS® CAT 6A plug for field mounting is a modern and high-quality RJ45 plug, which is characterized not only by its very simple applicability, but is always reliable and time-saving to the field assembler for every use. The quick installation in just 60 seconds without special tools, as well as the enormous flexibility, makes it the perfect choice in all applications. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers through fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector. Why complicated, if it´s easy? See for yourself.

This text is machine translated.

Features

Cat 6A, 500 MHz, 10GBase-T
Screw-on strain relief
Assembly without tools
Locking lever made of metal
Cable installation via LSA-cutting terminal, color-coded according to EIA/TIA 568 A&B.
Strain relief and cable fixing by means of screw cap
360° shield contact
