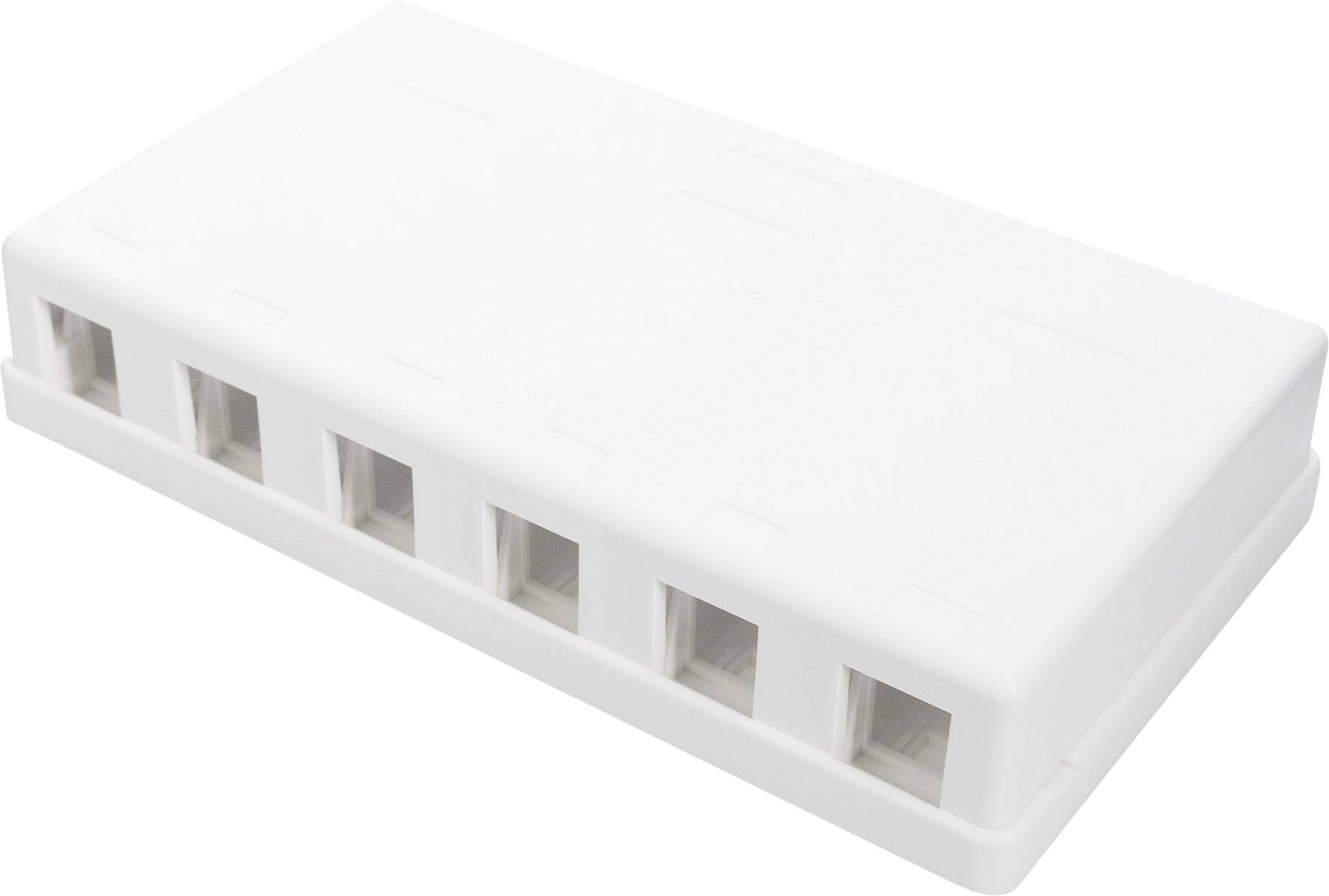

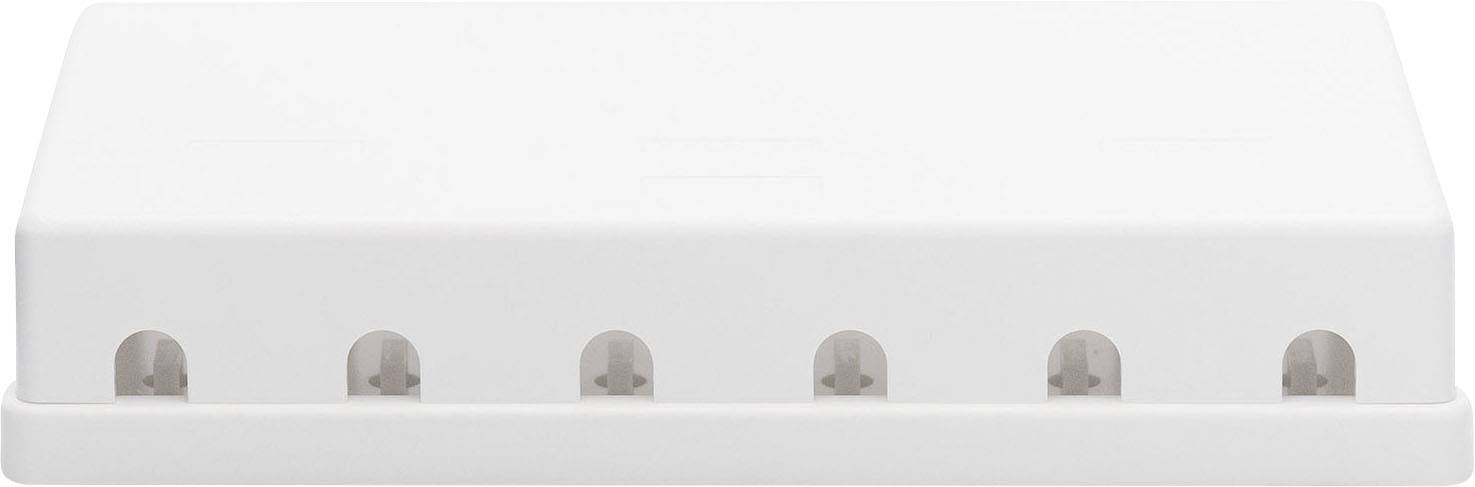

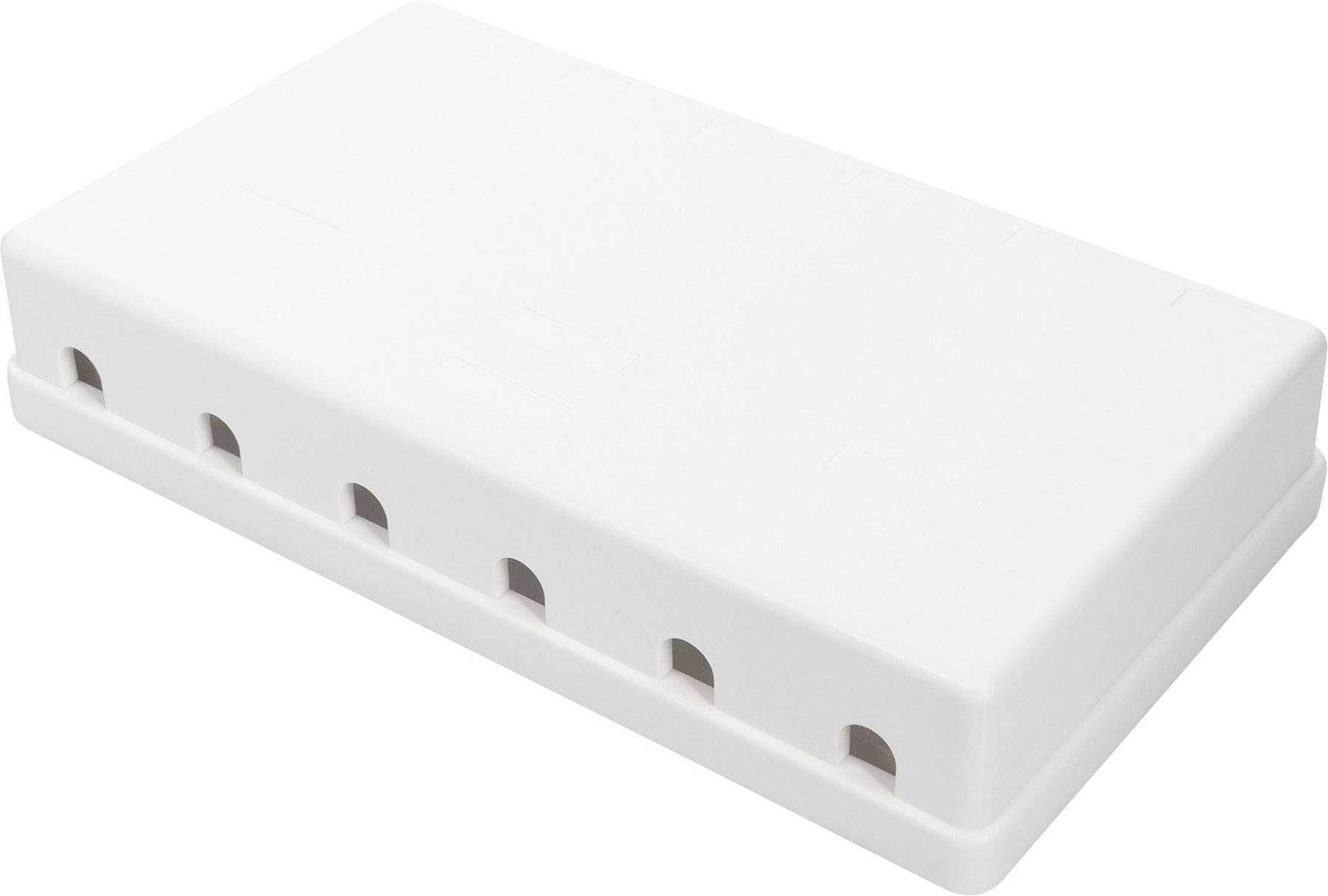

Consolidation-Point Box for 6x Keystone Jacks
- Capacity DIGITUS ® Keystone module for feeding from rear max. 6; in the case of feeding of the cable from below, or via side surfaces. Up to 12
- Suitable for all DIGITUS ® Keystone module
- Lower housing shell with opening for cable entry and mounting holes for wall mounting
Technical specifications
- Product type
Consolidation Point
- Rack unit
1 U
- Patch panel design
Unequipped
- Width
170 mm
- Height
40 mm
- Factory colour
Multicolour
- Length
120 mm
- Weight
120.00
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1165400 Digitus DN-93705 6 ports Consolidation Point 1 U Multicolour Unequipped |  PDF |
Description
The box is a part of the DIGITUS® modular connection system and is used for installation of consolidation points at desks, in intermediate ceilings or in underfloor systems. The housing is suitable for DIGITUS® Keystone Jacks.
· Layout Keystone Entry: Straight (6-port), sideways (12-port)
· Area of application: Raised floor, trunking, inserted ceiling, wall fastening (surface mount)
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for all Digitus® consolidation-point cables and keystone modules
· Technical properties:
· Housing material: ABS UL-94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Layout Keystone Entry: Straight (6-port), sideways (12-port)
· Area of application: Raised floor, trunking, inserted ceiling, wall fastening (surface mount)
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for all Digitus® consolidation-point cables and keystone modules
· Technical properties:
· Housing material: ABS UL-94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Features

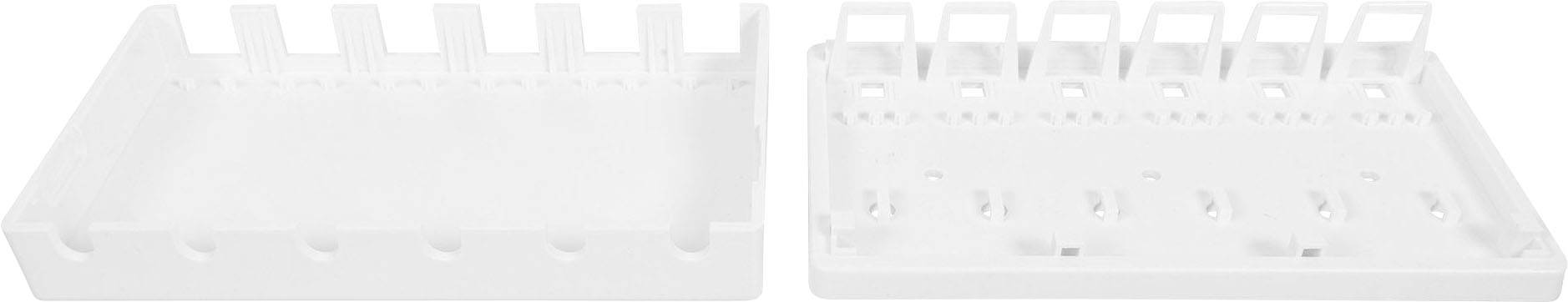

- Consisting of 1x housing shell top, 1 x housing shell below, 2 x adapter inserts with 6 Keystone openings, 1 adapter set for cable entry
- Color pure white
- ABS material
- Weight approx. 170g
- Temperature range -10 to +50 °C
