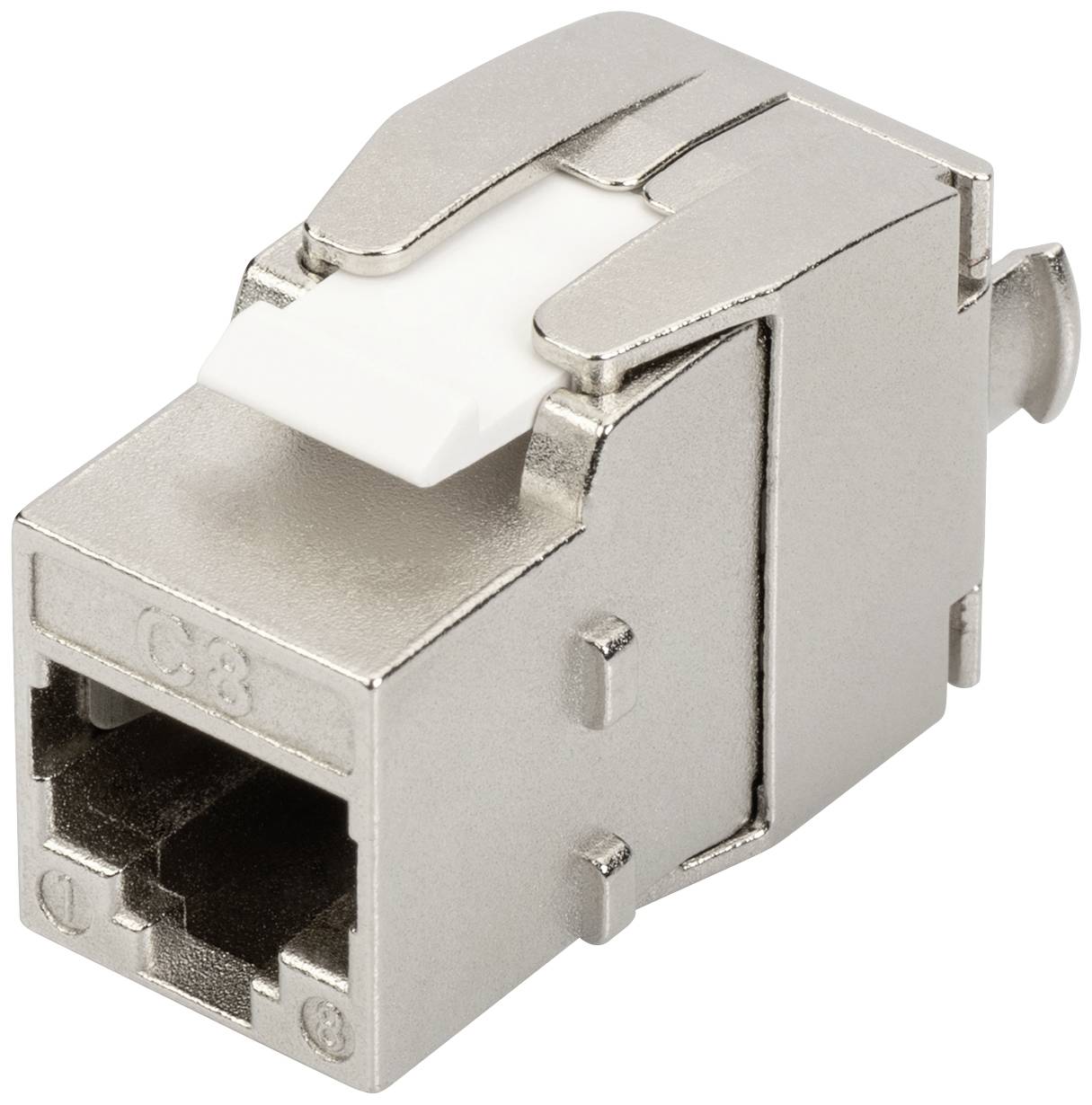

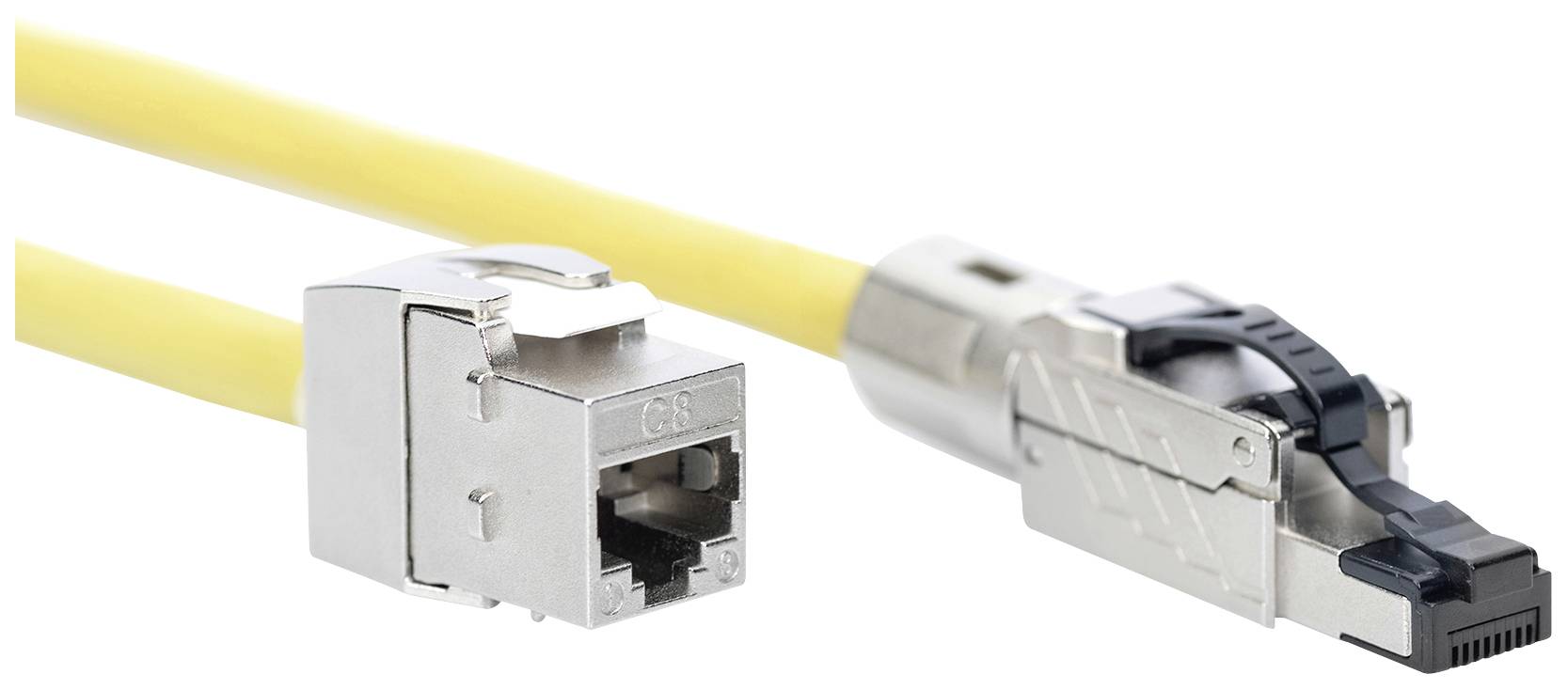

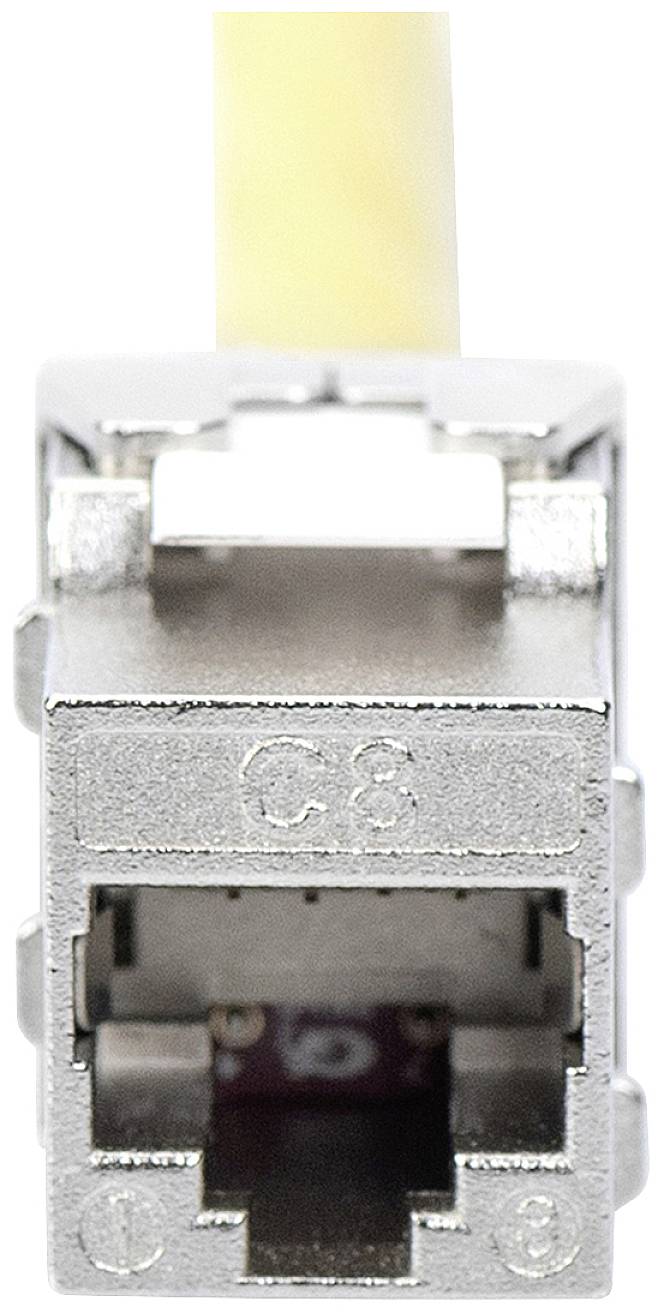

Digitus DN-93816 Connection module Keystone CAT 8.1
Conrad Electronic
€ 8.49*
EAN:
Part number:
Item no:
Item 1 of 4
Cat.8.I keystone module shielded, tool-free, dust cap
- Cat.8.I keystone module shielded, tool-free, dust cap
Technical specifications
- Transfer property: Category 8 Class 1Application areas: Up to 2000 MHz, 25/40GBase-T.Standards ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE)General properties:Suitable for patch panel and junction box mountingRJ45 sockets, 8P8CCable installation via LSA-strips, color-coded according to EIA/TIA 568 A & B.Tool-free installation360° shield contactTechnical properties:Material casing: Die-cast zinc, nickel-platedMaterial RJ45 socket: ABS UL 94V-0Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contactRJ-45 shielding: Nickel-plated bronzeLSA-cutting terminal: Krone LSA+, UL 94V-2, galvanized phosphor bronzePRINTED CIRCUIT BOARD FR4, UL 94V-0Physical properties:Insertion force: 30N max. (IEC 60603-7-81)Tensile load: 7.7 kg between socket and plugOPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)Plug-in cycle socket: Less than 750 in accordance with ISO/IEC 11801, IEC 60603-7-81Terminal 200 acc. To ISO/IEC 11801, IEC 60603-7-81Wire intake: 22-26 AWG solid and stranded conductorInsulation resistance: Greater than 500 MOhmContact resistance: Less than 20 milliohmsDielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
- Compatible with
Keystone
- Product type
Connection module
CAT 8.1
- Tool-free installation
Yes
- Factory colour
Multicolour
- Weight
0.00
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 2528884 Digitus DN-93816 Connection module Keystone CAT 8.1 |  PDF |
Description
The DIGITUS® brand DN-93816 is a cat 8.1 keystone module with tool-free mounting connection, which offers excellent performance and connection quality for your Digitus network. The compact design allows a series installation of 24 pieces in 483 mm (19") 1HE panels. It complies with Category 8.I / 25/40GBase-T ISO/IEC 11801.
This text is machine translated.
This text is machine translated.
Features
- The mounting connection of the keystones module of the category-8 class-1 enables a tool-free installation of the network cable (AWG 22-26) - the cable fixing is done via cable binderThe keystone module has a socket for RJ45 plugs that withstands a tensile load of 7.7 kg and over 750 mating cycles in accordance with ISO/IEC 11801, IEC 60603-7-81
Scope of delivery
- keystone moduleCable Ties
