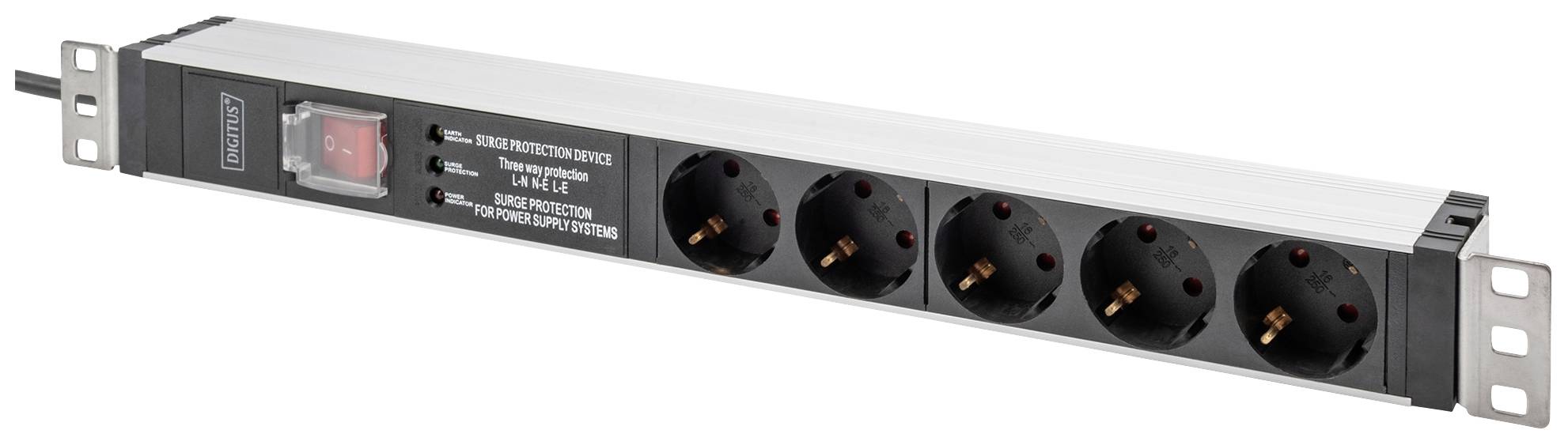

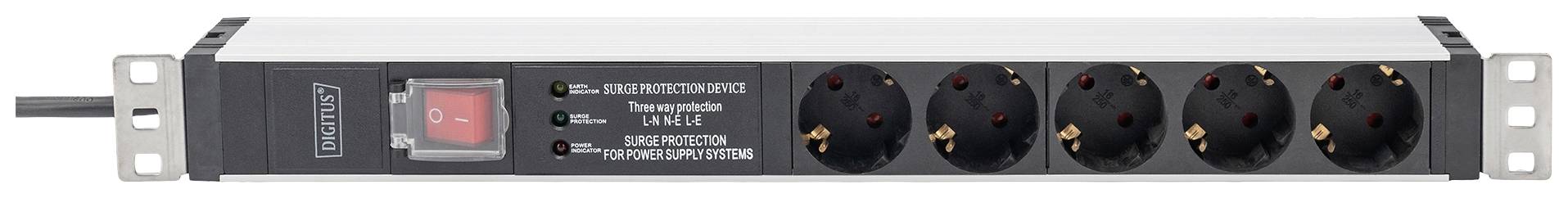

Digitus DN-95433 19 inch Server rack cabinet power strip 1 U PG socket Suitable for (cabinet depths): > 300 mm Aluminium
Conrad Electronic
€ 37.99*
EAN:
Part number:
Item no:
Item 1 of 9
1HE aluminum PDU, rack mount, 5 x earthing contact 16A, 230Vac, 50/60Hz, over-voltage, net filter, switch
- Perfect power distribution for your network and IT rack

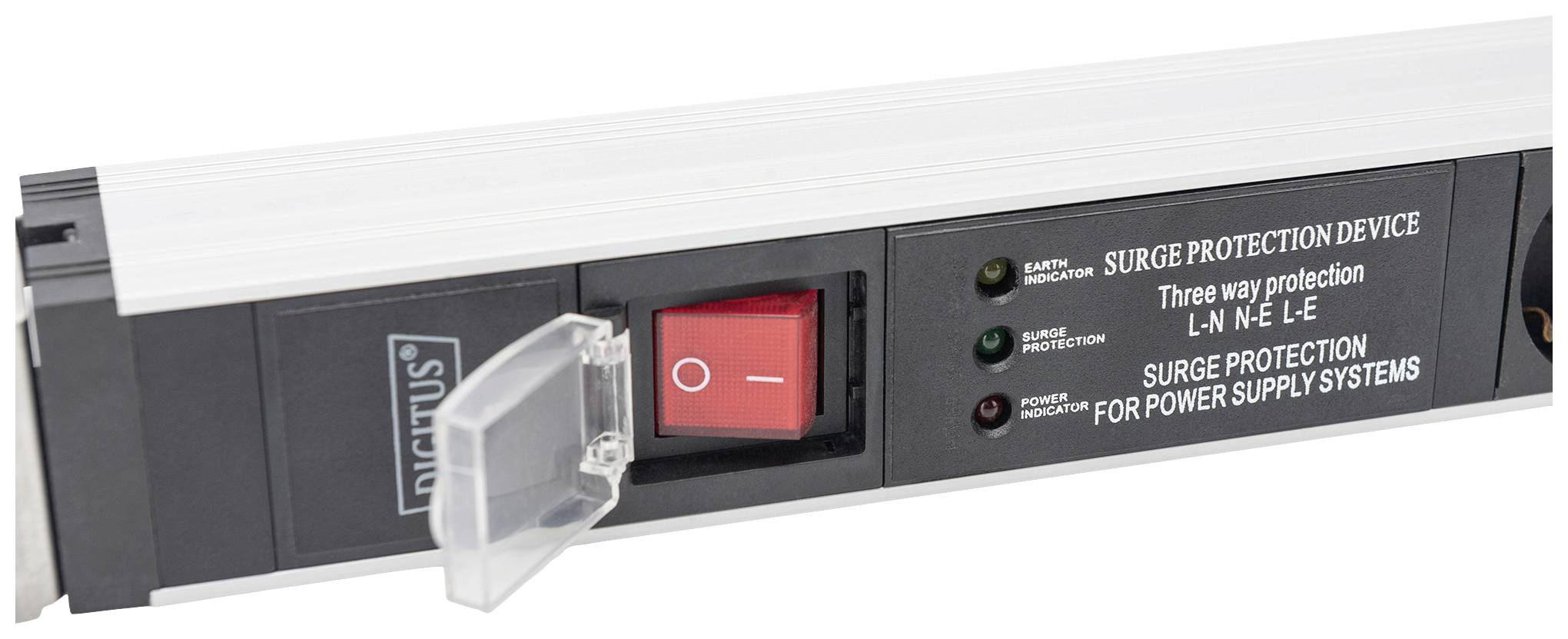

- Illuminated switch is protected against accidental power-off
- Built-in line filter and voltage surge module protects the connected consumers from interference from the mains
- Sockets are rotated by 35°, this offers optimum space management and easy access
Technical specifications
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Suitable for (cabinet depths)
> 300 mm
- Socket type
PG socket
- Outlets
5
- Voltage (max.)
230 V
- Dim
(L x W x H) 4.5 x 48.3 x 4.5 cm
- Amperage
16 A
3680 W
- Cable length
2 m
- Material
Aluminium
Aluminium (anodized)
Aluminium/PVC
Aluminium rail
- Content
1 pc(s)
- Factory colour
Aluminium
Aluminium (anodised)
Black
Black (matt)
Black-silver
Black/silver
- Width
48.3 cm
- Height
4.5 cm
- Length
4.5 cm
- Rack size
483 mm (19")
- Weight
0.892
- Product type
Server rack cabinet power strip
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 3207201 Digitus DN-95433 19 inch Server rack cabinet power strip 1 U PG socket Suitable for (cabinet depths): > 300 mm Aluminium |  PDF |
Description

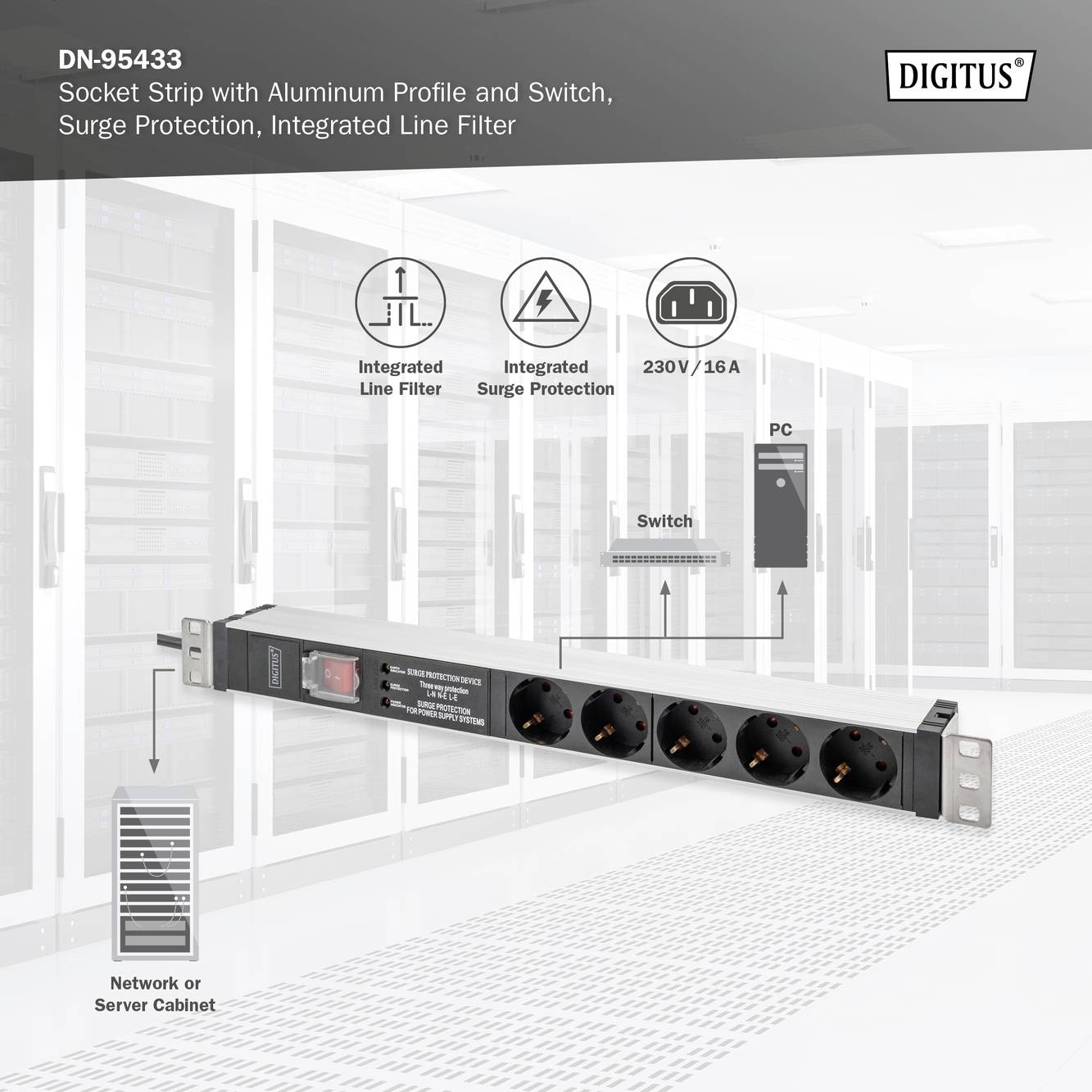

The Digitus® socket strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories as well as the home sector. The power strip can be mounted in the 19" area in the cabinet space-saving 1HE. An integrated line filter and surge protection protects the connected consumers against interference from the mains. Depending on the type of cabinet, it is possible to attach the power strip in a left or right-pointing orientation.
This text is machine translated.
This text is machine translated.

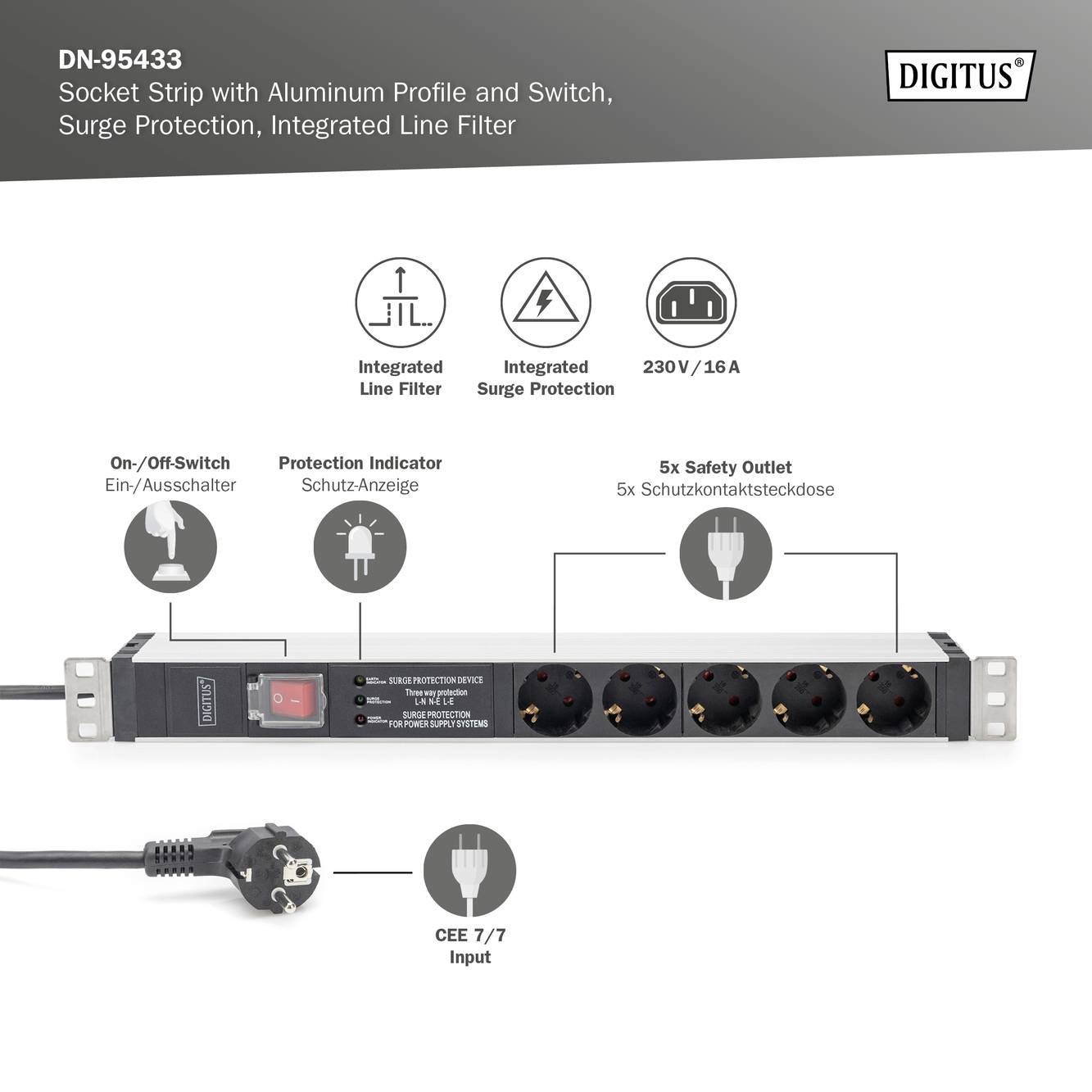

Features
- Outputs: CEE 7/3
- CEE7/7 input connector
- Installation: Rack 1U
- Output 3.6 kVA
- Phase: 1 ph
- Voltage: 230 V
- Current: 16 A
- Additional functions: Switch, over-voltage protection, mains filter
- Inch Form Factor (IEC 60297):482.6 mm (19")
- Illuminated switches - secured against unintentional disconnection
- Integrated network filter
- Integrated surge protection : Nominal
- Discharge current (in) - 10 kA
- Rotation of the cans 35°
- Aluminium casing
- Plastic components made of ABS UL-94V-0

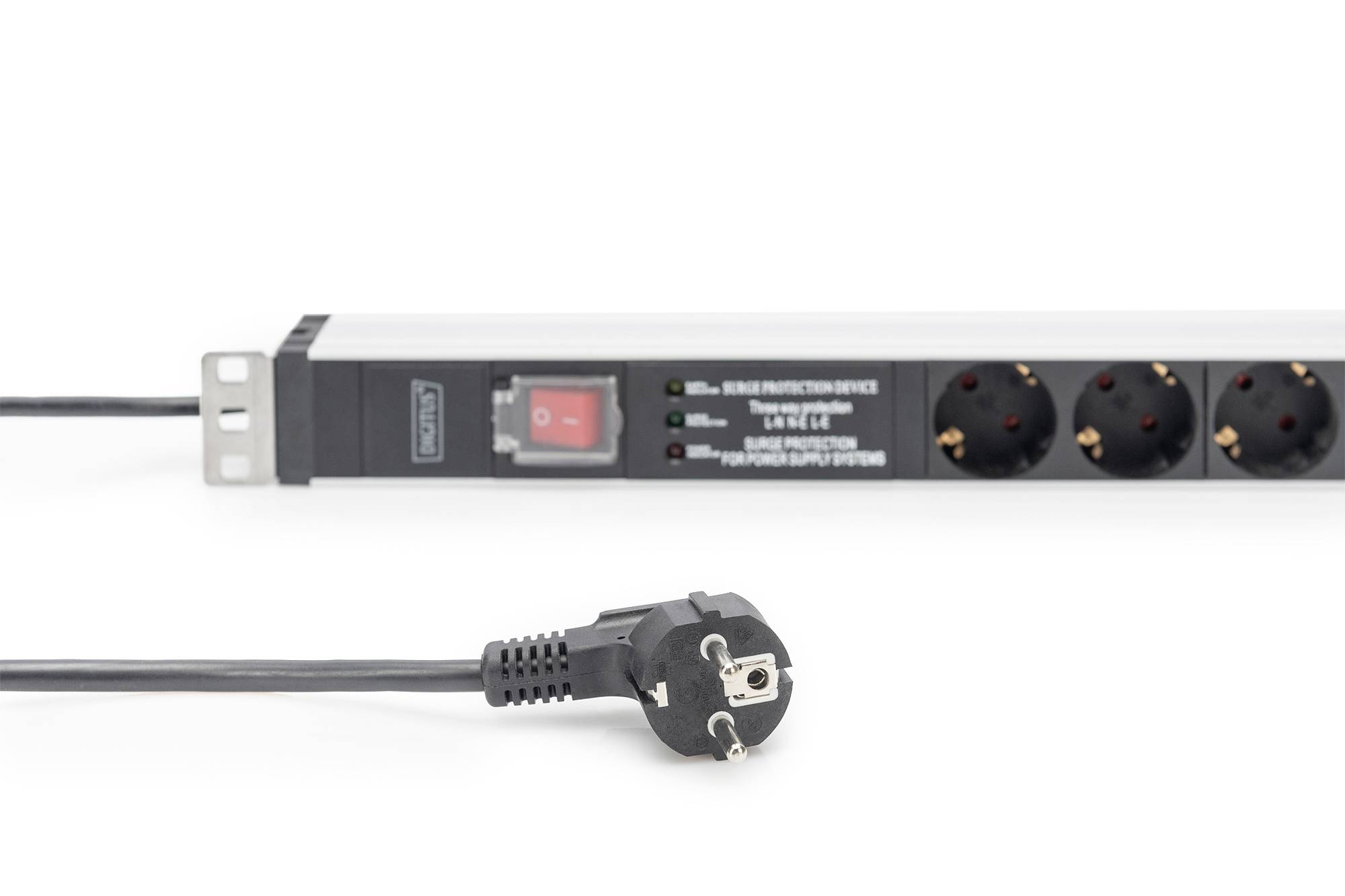

- Input: Protective contact plug CEE 7/7, 230 V AC / 16 A
- Output: Device sockets 5 x safety socket DIN 49440, max. 16 A per output
- Cable: H05VV-F 3G 1.5 mm², Length: 2 m.
- Dimensions: 482.6 (19") x 45 (1HE) x 45 mm (HxWxD)

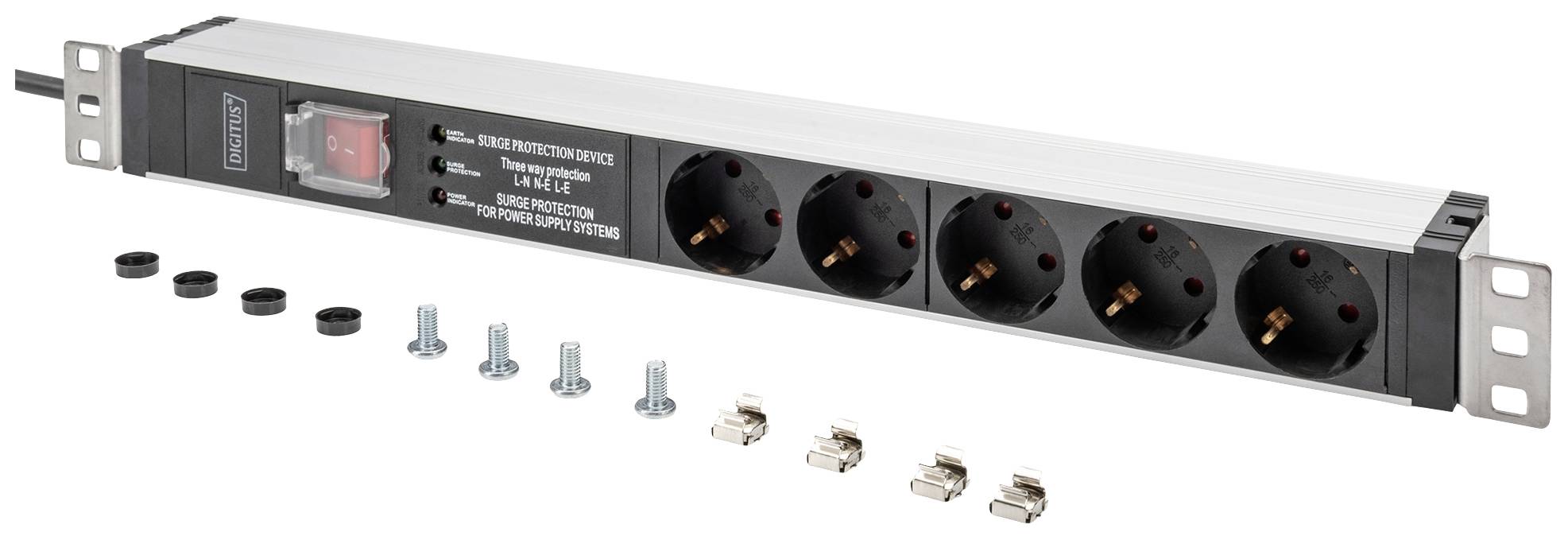

Scope of delivery
- 1 socket strip
- 2 Mounting brackets
- 1 Safety instructions
