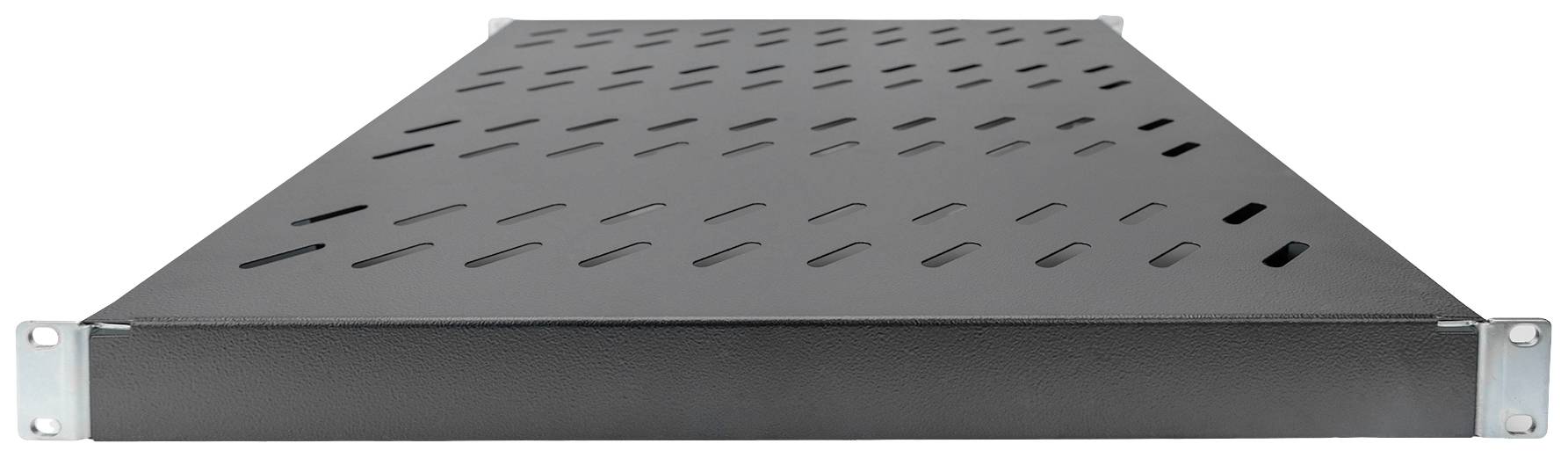

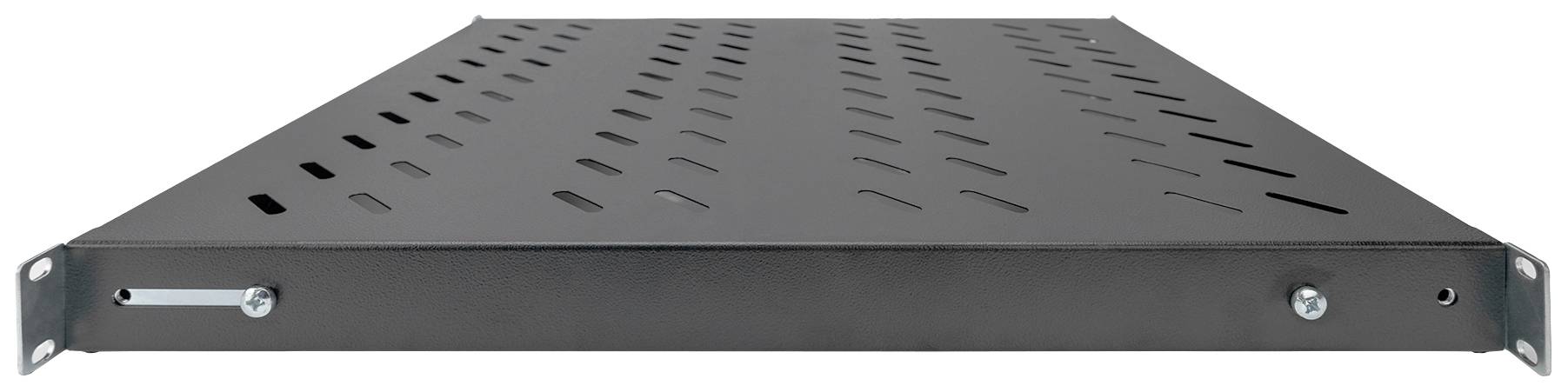

Digitus DN-97647 19 inch Server rack cabinet shelf 1 U Rail set Suitable for (cabinet depths): 800 mm Black (RAL 9005)
Conrad Electronic
€ 27.99*
EAN:
Part number:
Item no:
Item 1 of 6
Shelf for 483 mm (19") cabinets with 800 mm depth, 1U
- Variable mounting rail: 500 mm to 700 mm in depth
- Compatible with all standard 19" angle profiles
Technical specifications
- Features
Rail set
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Suitable for (cabinet depths)
800 mm
- Rail set length (min.)
500 mm
- Rail set length (max.)
700 mm
- Load capacity (max.)
50 kg
- Dim
(W x H x D) 483 x 44 x 500 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Black (RAL 9005)
- Width
483 mm
- Height
44 mm
- Depth
500 mm
- Weight
3.527
- Product type
Server rack cabinet shelf
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1418830 Digitus DN-97647 19 inch Server rack cabinet shelf 1 U Rail set Suitable for (cabinet depths): 800 mm Black (RAL 9005) |  PDF |
Description
The shelves are easy to install at the four 483 mm (19") profile rails of your 483 mm (19") cabinets. Due to the sturdy, perforated sheet steel, with a load capacity of up to 50 kg, they are the optimal surface for your network components. Furthermore, the shelves are compatible with any popular 483 mm (19") mounting profile rails. The respective mounting rails are variable in depth. Available in standard color grey (RAL 7035) and black (RAL 9005).
· For fixing at the four 483 mm (19") mounting profile rails
· Compatible with any popular 483 mm (19") mounting profile rails
· Sturdy, perforated sheet steel
· Variable fastening rail: 500 mm to 750 mm in depth
· Front fastening rails are already mounted
· Delivery with complete set of needed fixing material
· Packaging dimensions (HxWxD): 55 x 500 x 525 mm
· Weights: 3.2 kg (net); 3.57 (gross)
· For fixing at the four 483 mm (19") mounting profile rails
· Compatible with any popular 483 mm (19") mounting profile rails
· Sturdy, perforated sheet steel
· Variable fastening rail: 500 mm to 750 mm in depth
· Front fastening rails are already mounted
· Delivery with complete set of needed fixing material
· Packaging dimensions (HxWxD): 55 x 500 x 525 mm
· Weights: 3.2 kg (net); 3.57 (gross)
Features
- For attachment to the four 19" angle profiles
- Sturdy, perforated hole plate
- Front Mounting rails are mounted in the delivery
- Supplied complete with mounting material
- Can be loaded up to 50 kg
