Digitus DN-DVR-1 19" PC casing
Conrad Electronic
€ 109.99*
EAN:
Part number:
Item no:
Item 1 of 7

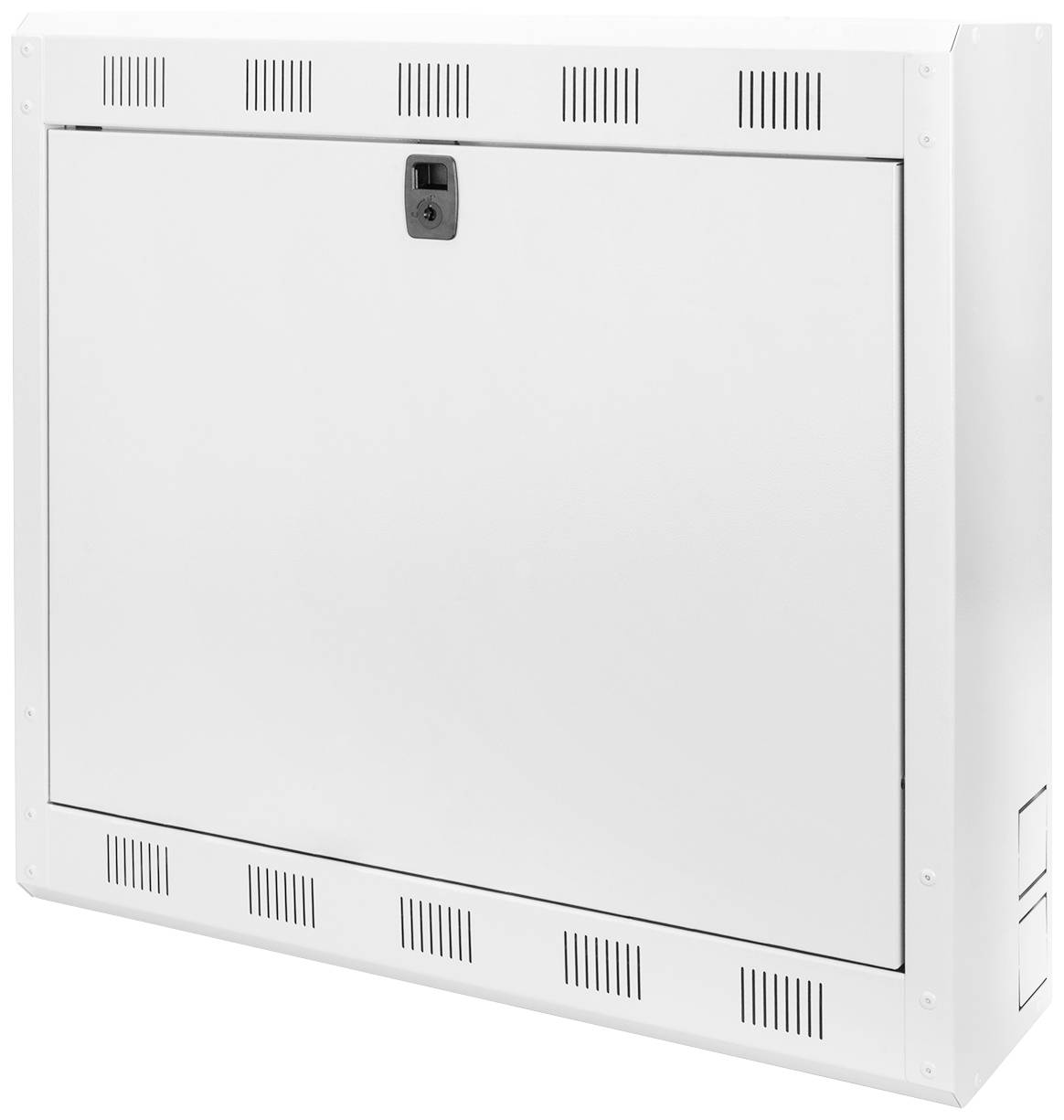

Digitus DN-DVR-1 DVR Wall housing 550x580x160 mm, gray (RAL 7035)
- This wall housing meets the special requirements that occur when installing systems for video surveillance or similar security technology
- The chassis offers space and mounting options for all relevant components (such as power supply, video recorder, monitor, etc.), but at the same time takes up very little space at the installation site

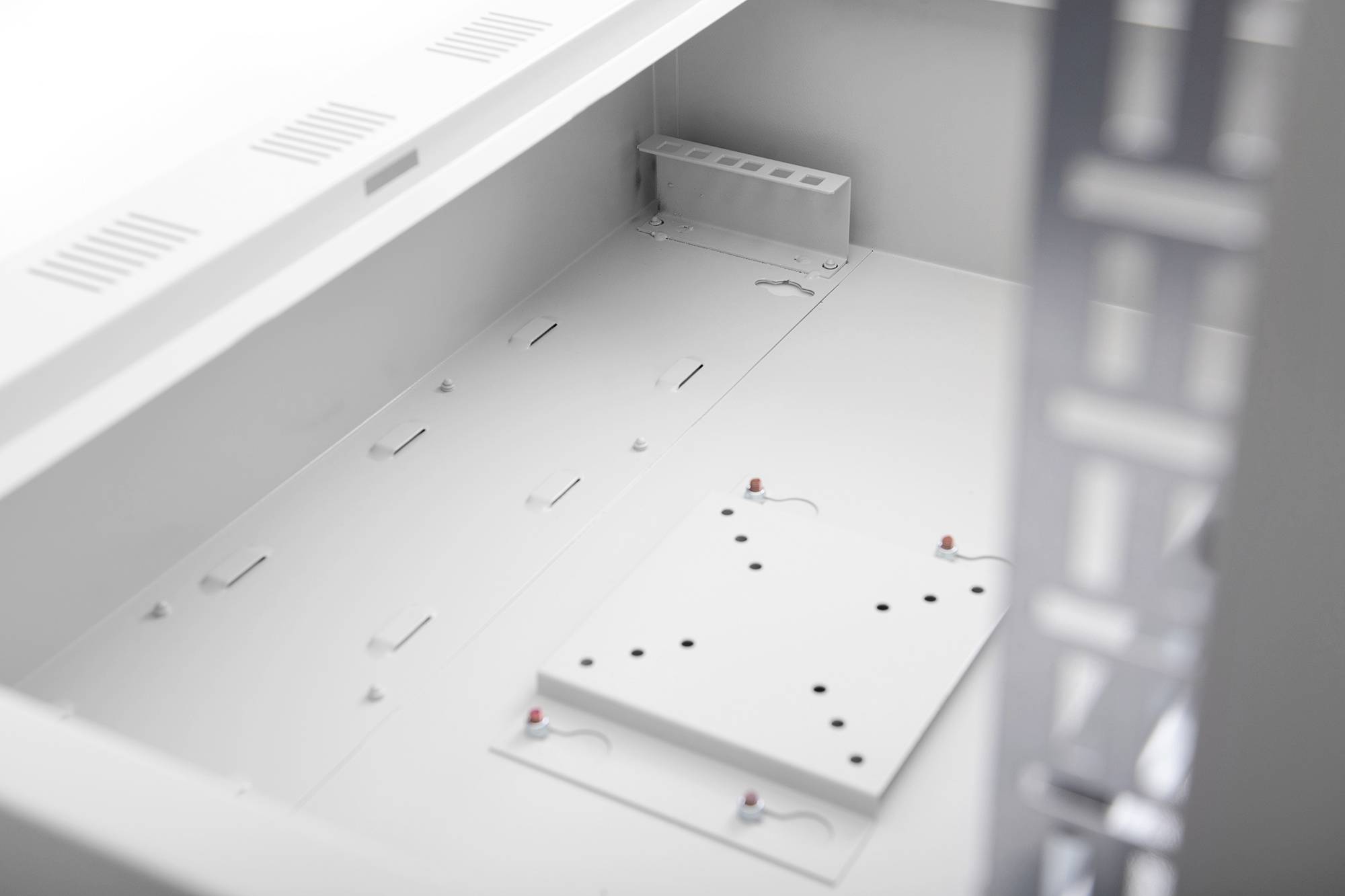

- In addition to 2HE in the upper part of the housing, e.g. for power strip and patch panel, there is a mounting plate in the door with several mounting options and another height unit
- Cable entries at the sides (right, left, top, bottom, rear) provide for flexibility, so that the control cabinet can also be used for network cabling or sound/radio technology
- The compact distribution box with sturdy steel construction (load capacity: 50 kg) is suitable for computer applications and security systems in private households, offices and small businesses
Technical specifications
- IP protection class IP20
- Front door: Steel door, closed, single-wing
- Load capacity: 50 kg
- Mounted: Yes
- Factory colour
Grey (RAL 7035)
- Dim
(W x H x D) 580 x 550 x 160 mm
- Weight
15000 g
- Depth
160 mm
- Height
550 mm
- Width
580 mm
- Features
wallmount option
lockable
folding
with feedthrough
with lock
- Features
Wall mount option
- Rack size
483 mm (19")
- Wireless charging
No
- Product type
19" PC casing
Description
For optimum storage of a video control system with protection against unauthorized access.

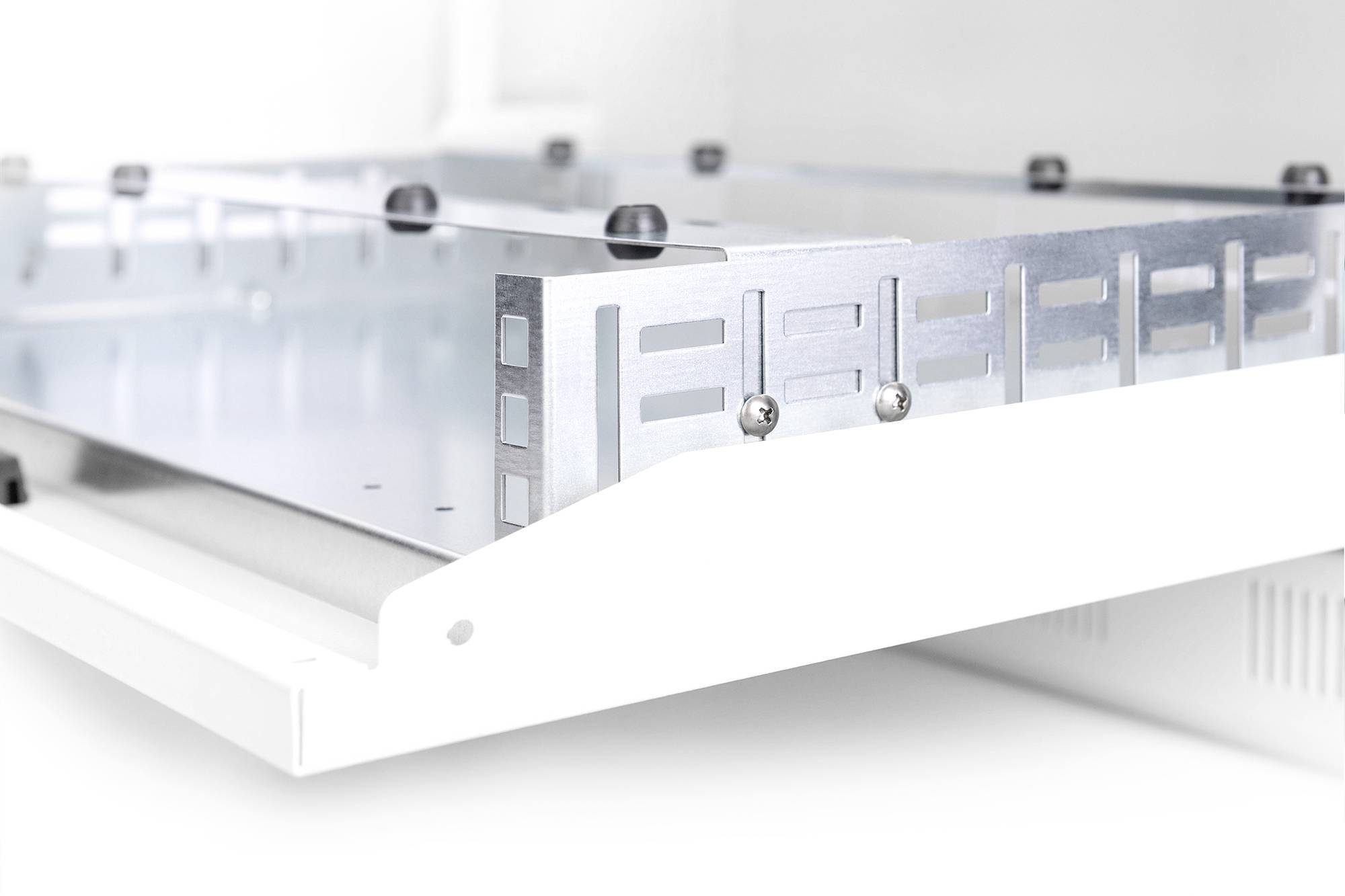

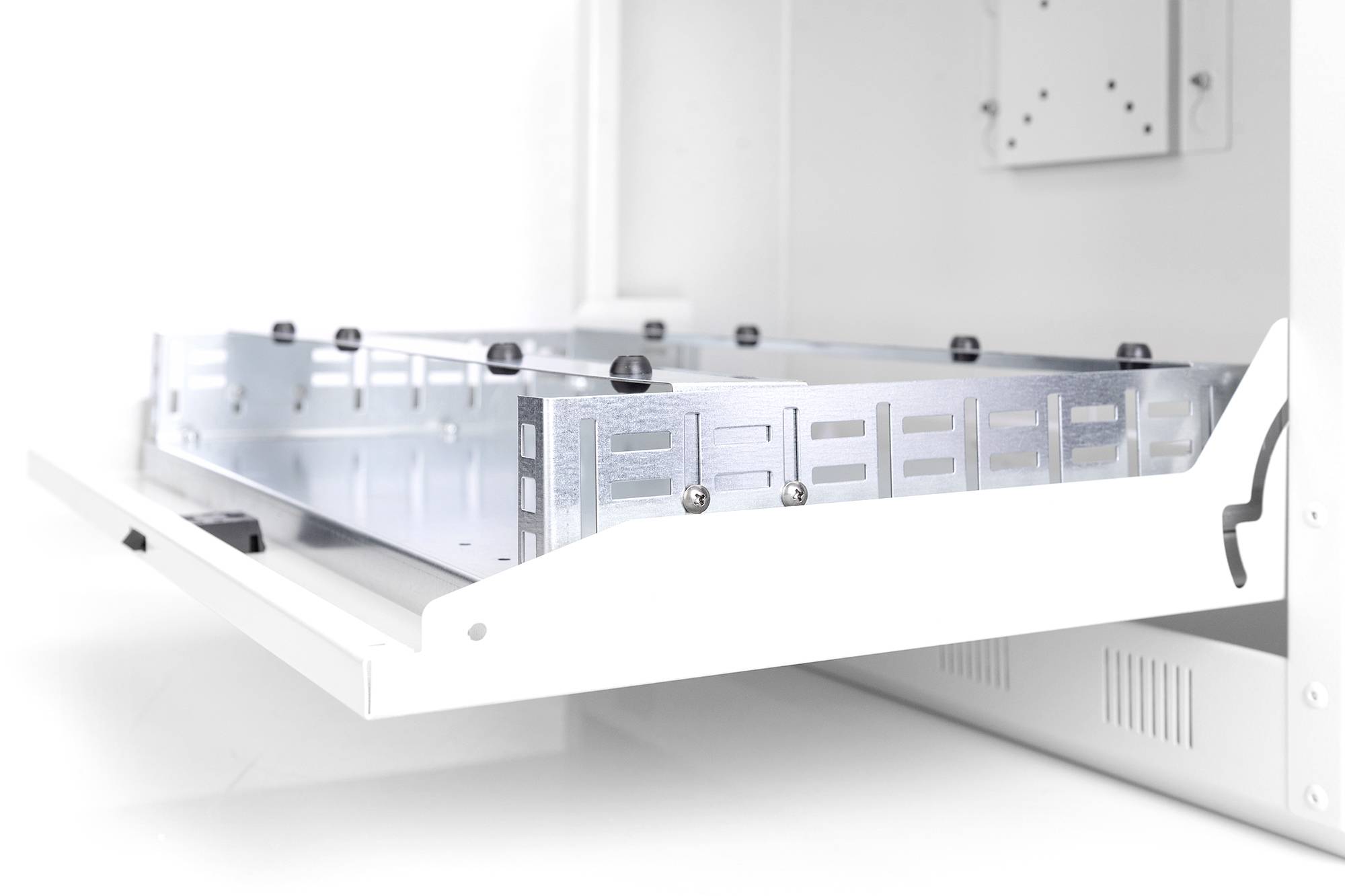

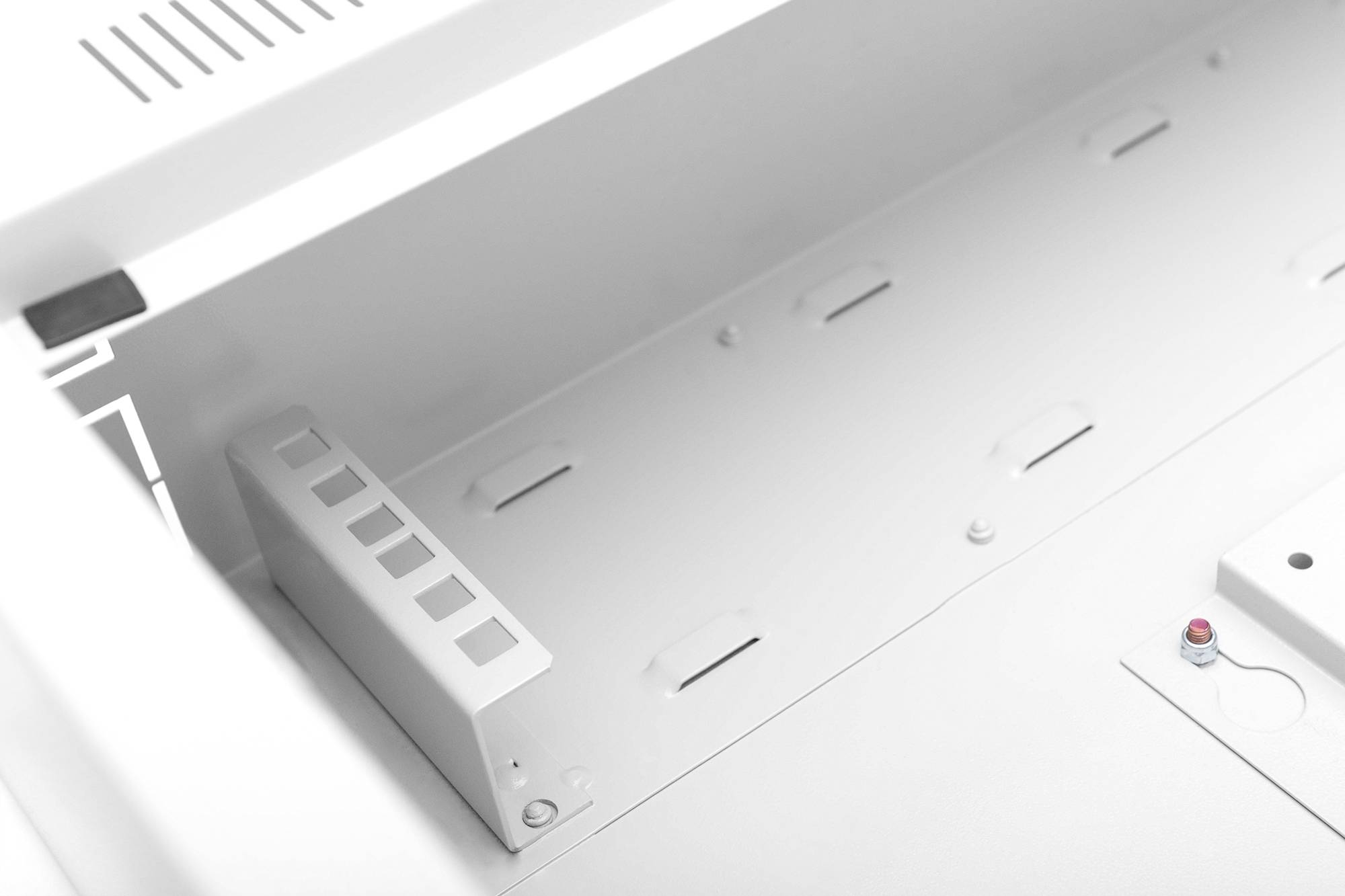

Digitus DIGITUS® wall housing protects your video control system from unauthorized access. It can be used for all applications in areas such as network, security, DVR, sound, radio or cabling. With the mounting brackets you can fix your device easily, whether 482.6 mm (19”)-mountable or not. Rubber dampers on the adjustable fixing bracket hold the appliance in its exact position and protect it from damage when the door is opened and closed. In addition, a monitor can be attached to the 12”-bracket on the inner rear side. In order to supply your components with power, there is a 482.6 mm (19”) 2HE holder at the inner top for fixing a power strip. Several cable inputs on each side make an orderly cable management possible.
This text is machine translated.
Digitus DIGITUS® wall housing protects your video control system from unauthorized access. It can be used for all applications in areas such as network, security, DVR, sound, radio or cabling. With the mounting brackets you can fix your device easily, whether 482.6 mm (19”)-mountable or not. Rubber dampers on the adjustable fixing bracket hold the appliance in its exact position and protect it from damage when the door is opened and closed. In addition, a monitor can be attached to the 12”-bracket on the inner rear side. In order to supply your components with power, there is a 482.6 mm (19”) 2HE holder at the inner top for fixing a power strip. Several cable inputs on each side make an orderly cable management possible.
This text is machine translated.
