Digitus DS-30226 4 ports PCI Express card USB, USB A (USB 1.1), USB A (USB 2.0), USB A (USB 3.0), USB type A PCIe
Conrad Electronic
€ 33.99*
EAN:
Part number:
Item no:
Item 1 of 5
USB PCI Express add-on card USB3.0, 4-port A/F, chipset: VL805, self-powered
- Data transfer in SuperSpeed with up to 5 Gbps, backward compatiblePower supply 5 V / 3000 mA per port max.Chipset: VIA / VL805
Technical specifications
- 4 x USB A (USB 3.0) portsUSB transfer rates: SuperSpeed (5 Gbps), Hi-Speed (480Mbps), Full Speed (12Mbps) & Low Speed (1.5 Mbps)Power supply 5 V / 3000 mA per port max.Chipset: VIA / VL805For PCIe slots: x1/x4/x8/x16No external power supply necessary, power supply via PCIe slotComplies with Universal Serial Bus 3.0 specification (rev.1), backwards compatible with 2.0Compliant with eXtensible Host Controller Inferface Specification rev. 1.0Compliant with PCI Express specification 2.0, backwards compatible with 1.0Supports USB Legacy functionUSB Attached SCSI Protocol (USAP) ModePlug and Play - no drivers necessarySupported operating systems: Windows10/8.1/8/7, Linux (32/64Bit)Dimensions 10 x 12.1 x 2 cm (W x D x H)Weight: 60 g
- Slot
PCIe
- No. of USB 3.2 1st Gen (USB 3.0) ports
4 x
- No. of external USB 3.2 1st Gen (USB 3.0) ports
4 x
- Chipset
VIA
VL800
- Interfaces (output)
USB
USB A (USB 1.1)
USB A (USB 2.0)
USB A (USB 3.0)
USB type A
- Product type
PCI Express card
Description

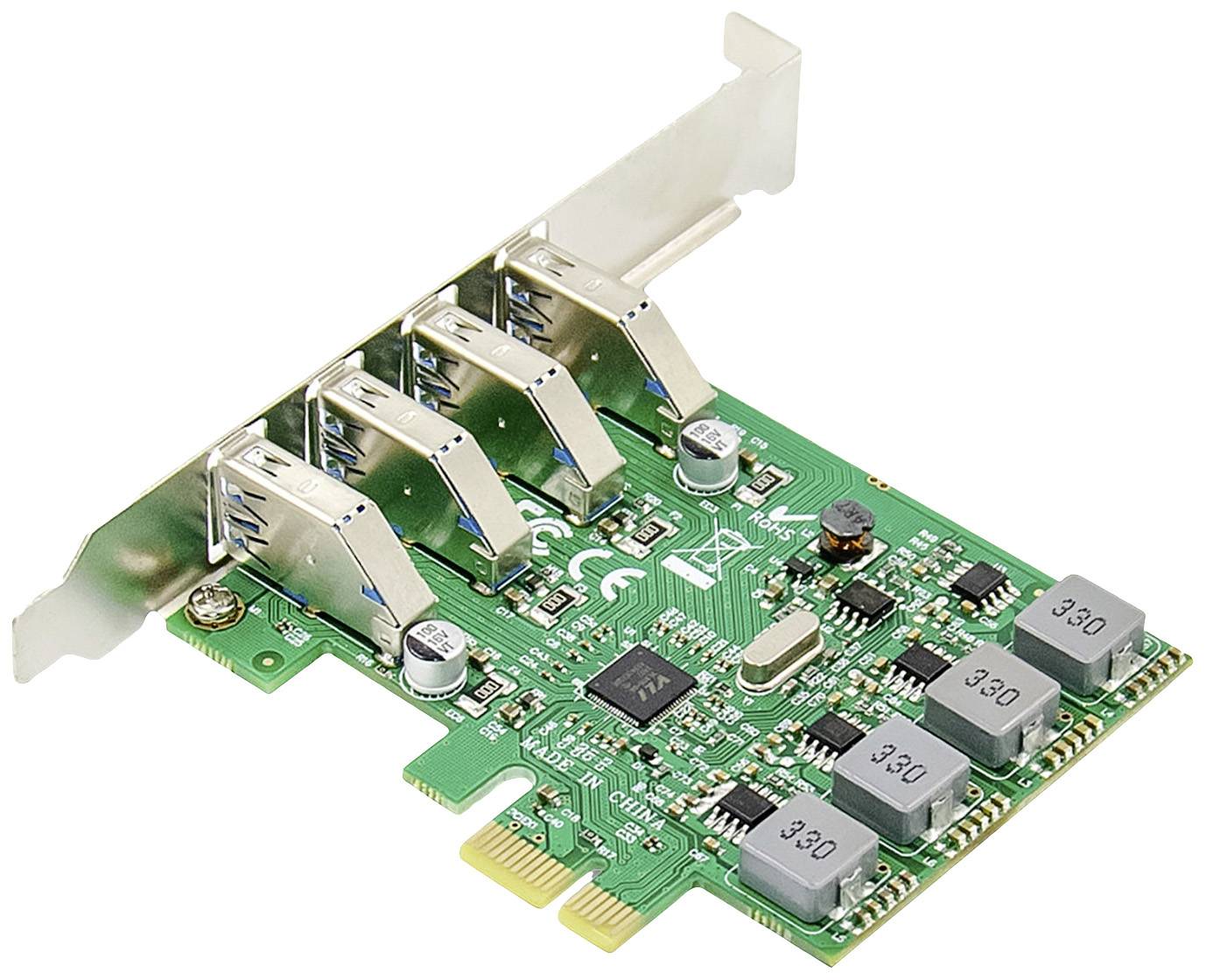

This full-fledged USB 3.0 host controller extends your PC with PCIe-slot by four USB 3.0 connections. Power is supplied via the PCI Express slot and provides a maximum current of 3,000 mA for each USB port. Use bus speeds of up to 5 Gbps through USB SuperSpeed, backward compatible with older USB devices with Hi-Speed, Full Speed & Low Speed. Connect USB devices such as printers, scanners, cameras or an external hard disk. Supports Hot-Plugging & Plug and Play - no driver installation necessary. Enjoy the highest SuperSpeed data transfer with Digitus DIGITUS® USB 3.0 PCIe card and copy large amounts of data in the shortest possible time.
This text is machine translated.
This text is machine translated.
Features
- Supports USB Legacy functionUSB Attached SCSI Protocol (USAP) ModePlug and Play - no drivers necessaryNo external power supply necessarySupports hot-pluggingLow-profile slot cover
Scope of delivery
- 1 x 4-Port USB 3.0 PCI Express Add-On card1 x Low Profile Slot bracket1 x quick start guide1 x CD
System requirements
- Windows10/8.1/8/7Linux (32/64Bit)
