RDS 80
I've fitted the soldering iron with a pointed tip. All soldering could be done quickly. Also suitable for smaller soldering. I found the piston's very stiff cable connection a bit of a nuisance, as you can easily slide pieces off the table. I found the adjustment and saving of temperatures very user-friendly. The piston gets hot quickly and when it's not in use you can switch it to a lower temperature at the touch of a button. The temperature can then be raised again afterwards, also at the touch of a button.
Item 1 of 2

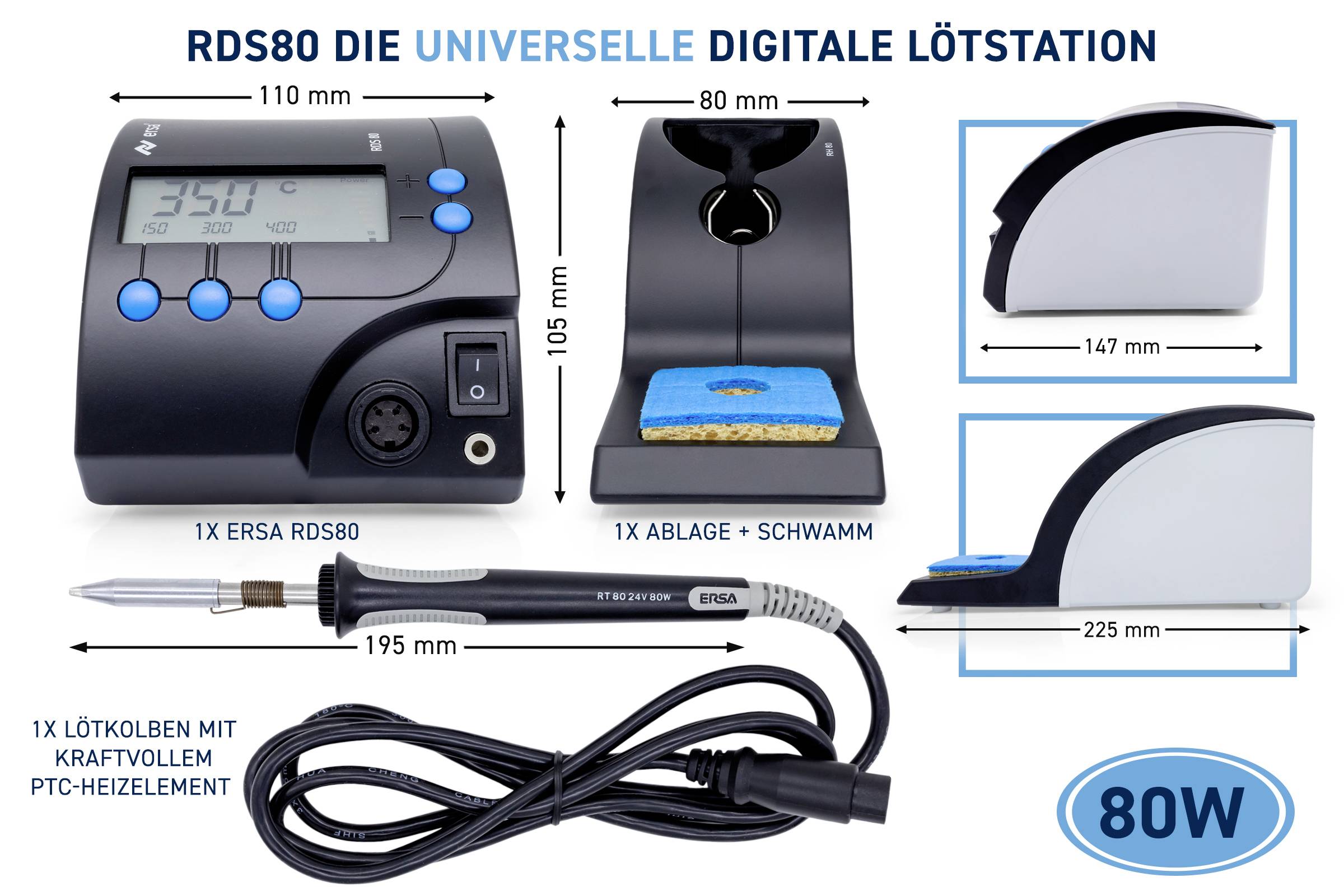

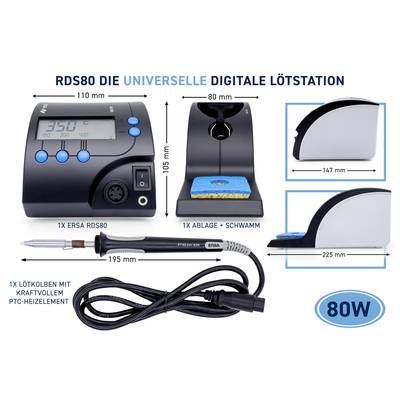

Ersa RDS 80 Soldering station Digital 80 W +150 - +450 °C
- 80 watt
- Digital display
Technical specifications
- Secondary voltage 24 V
- Solder iron RT 80: Voltage: 24 V
- Power: 80 W/350 °C
- Heat-up ppwer: 290 W
- Heat-up time: approx. 40 s (to 280 °C)
- Weight (without feed line): approx. 130 g
- Dim
(L x W) 260 mm x 250 mm
- Factory colour
Multicolour
- Length
260 mm
- Width
250 mm
- Display
Digital
- Rack size
483 mm (19")
- Power supply (LOV)
mains-powered
- Max. power
80 W
- Preheat time
40 s
- Operating voltage
230 V AC
80 W
- Preheat time
From 0 to 350 °C at room temperature
- Temperature range
150 - 450 °C
- Operating voltage
230 V/AC 50 Hz
- Max. temperature
+450 °C
- Min. temperature
+150 °C
- Weight
3.26 kg
- Product type
Soldering station
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 813123 Ersa RDS 80 Soldering station Digital 80 W +150 - +450 °C |  PDF |
Description
The ERSA RDS 80 is processor controlled, with 3 programmable temperature settings as well as other useful features such as Standby, Auto Power-Off, and large, clearly readable LCD display. The powerful heating element in the RT 80 soldering iron (up to 290 W heating power) ensures that the iron quickly reaches the specified temperature (in about 40 s) with an appropriate power reserve. The very high heating power and the large selection of inner-heated slder tips of the series 832/842 permit a very broad application range.
Features
- Temperature range continuously • Function display by LCD multifunction display
- Cable: 1.2 m PVC.
Scope of delivery
- Electronic soldering station RDS 80

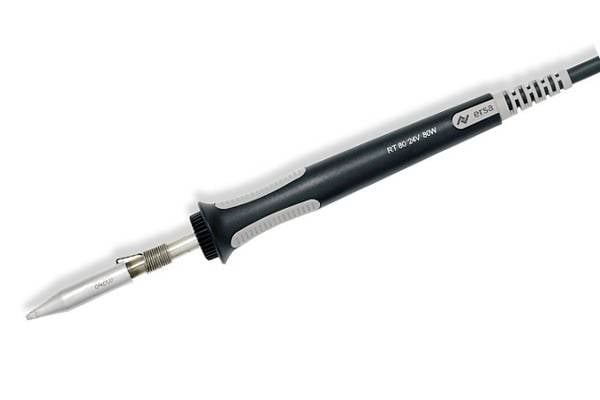

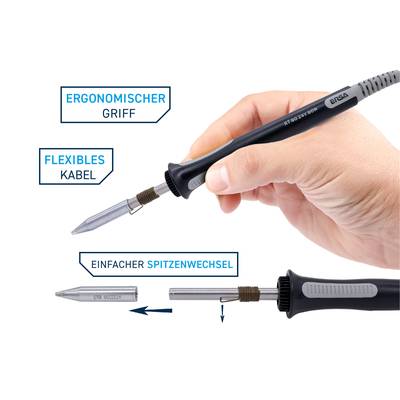

- Soldering iron RT 80 with ERSADUR long-life soldering tip 842 CD, 2.2 mm chisel-shape
- Soldering iron stand RH 80 with viscose sponge
