VOLTCRAFT 6LR61 9 V / PP3 battery Alkali-manganese 550 mAh 9 V 10 pc(s)
Conrad Electronic
€ 13.99*
EAN:
Part number:
Item no:
Item 1 of 2
114
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Reading range - resistance
0.1 Ω - 40 MΩ MΩ
- DC resistance
10 MΩ
- AC resistance
5 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 1 kHz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
167 mm
- Width
84 mm
- Weight
550 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Type
114
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 84 mm x 167 mm
- Product type
Handheld multimeter
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|

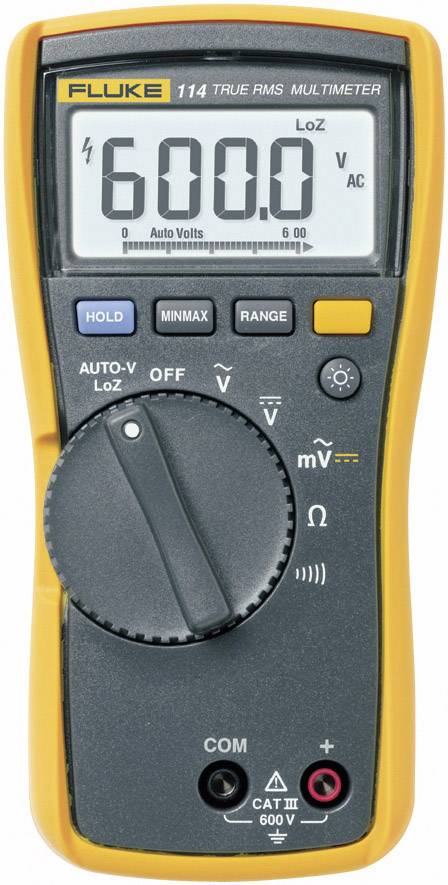

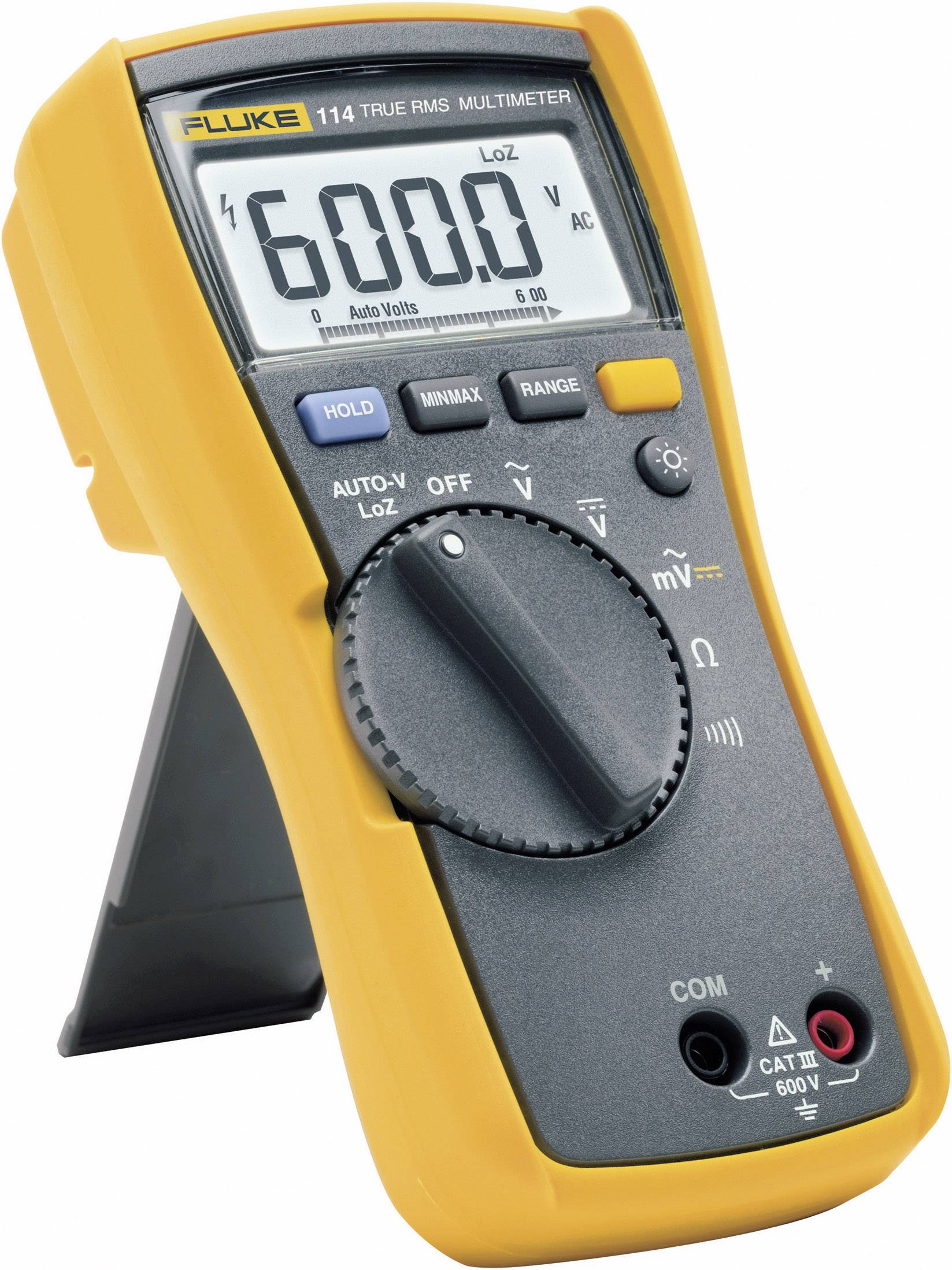

User & Safety Instructions 2996522 Fluke 114 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000 |  PDF |
Description
The Fluke 114 is ideal for electrical troubleshooting and for simple ‘go/no-go’ testing in domestic and commercial situations. It offers all the basic functions and an additional special feature to prevent false readings caused by stray voltages.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
This text is machine translated.
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
This text is machine translated.
Features
- AutoVolt: Automatic AC/DC voltage selection
- Large white LED backlight for working in badly-lit areas
- Resistance and continuity testing
- Min./max./average value for recording signal fluctuations
- Safety rating: CAT III, 600 V
- Safety:
- All inputs are protected according to CE and EN 61010-1 CAT III 600 V.
Scope of delivery
- 1 set of test leads
- 9 V batteries
- User manual
Customer reviews
Average rating
0 of 5 stars
So far there are no reviews of this product.
Frequently Bought Together
(*All information is incl. VAT.)
Total price:
€ 636.97
Accessories
(*All information is incl. VAT.)The necessary accessories are required to use the article as described

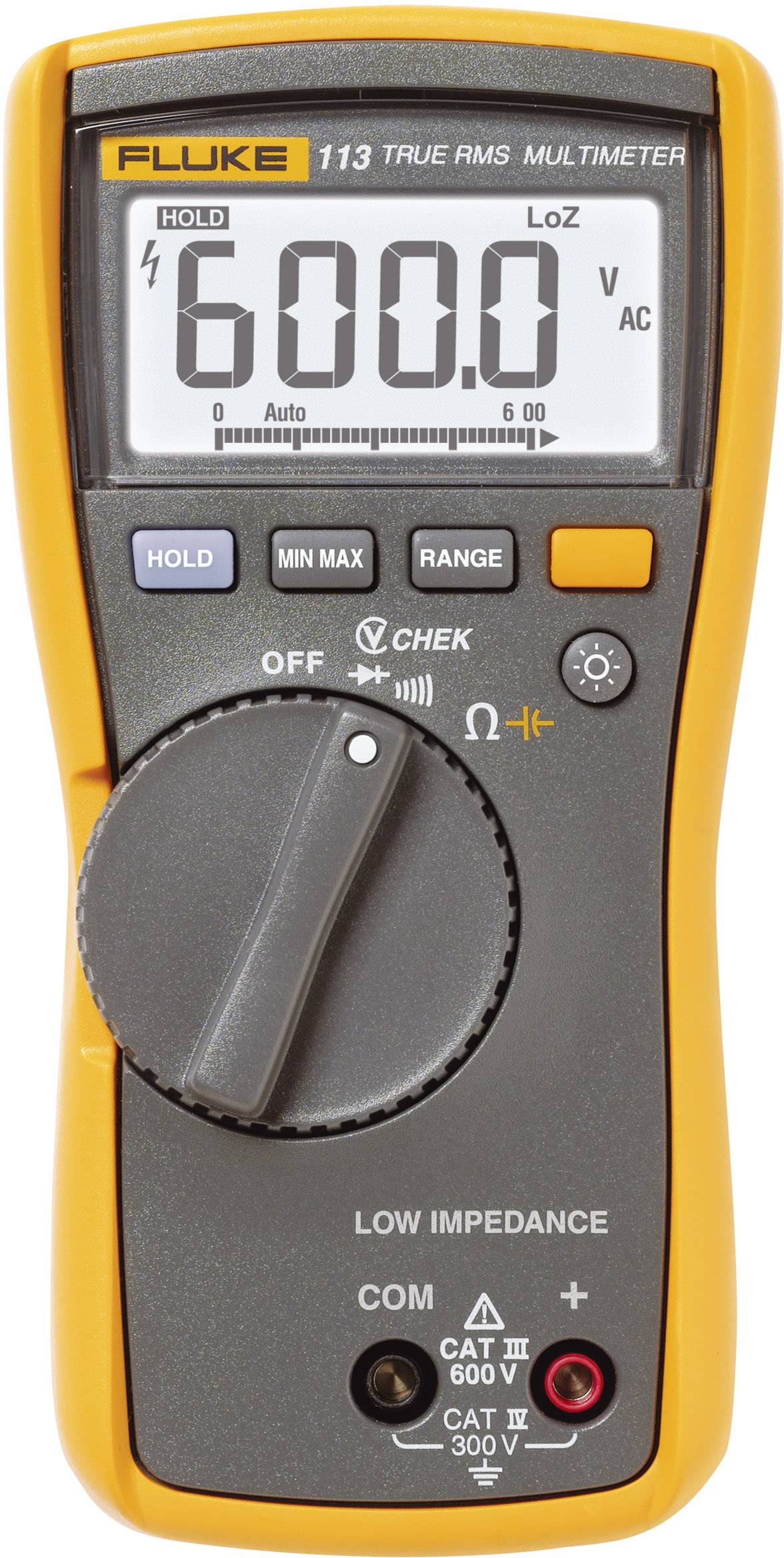

Fluke 113 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
