Name: Fluke 117/323 Handheld multimeter, Clamp meter Digital CAT III 600 V Display (counts): 6000
Brand: Fluke
SKU: 557066
Availability: InStock

Item 1 of 5

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

Do your needs go beyond this?

€565.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 Set	1	€ 565.00	€ 565.00
		€ 565.00	€ 565.00
incl. VAT plus Shipment

Report legal concerns

Fluke 117/322 Electrician’s Multimeter Combo Kit

Fluke 117 Digital multimeter. Designed by electricians. Constructed by Fluke
VoltAlert™ technology for non-contact voltage detection
AutoVolt automatic ac/dc voltage selection
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
True-rms for accurate measurements on non-linear loads
Measures 10 A (20 A overload for 30-seconds)
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
CAT III 600 V safety rated
Fluke 323 True-rms clamp meter.Robust. Reliable. Precise
400 A ac current measurement
600 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 4 kΩ with continuity detection
Slim, ergonomic design
CAT IV 300V/CAT III 600 V safety rating

Voltage reading range DC (min.): 0.1 mV

Voltage DC reading range (max.): 600 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 600 V

Amperage reading range DC (min.): 0.001 A

A DC reading range (max.): 10 A

A AC reading range (min.): 0.001 A

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.1 Ω - 40 MΩ

Reading range - capacity: 1 nF - 9999 µF

Frequency reading range: 5 Hz - 50 kHz

DC resistance: 10 MΩ

AC resistance: 5 MΩ

Basic accuracy: 0.5 %

Measurement type (details): True RMS

Frequency range: 45 Hz - 1 kHz

Interfaces: none

Power supply (details): 9 V battery

Height: 167 mm

Width: 84 mm

Weight: 550 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: 117/323

Display: Digital

Display (counts): 6000

Dim: (W x H) 84 mm x 167 mm

Product type: Handheld multimeter

User & Safety Instructions
User & Safety Instructions 557066 Fluke 117/323 Handheld multimeter, Clamp meter Digital CAT III 600 V Display (counts): 6000	PDF	Download

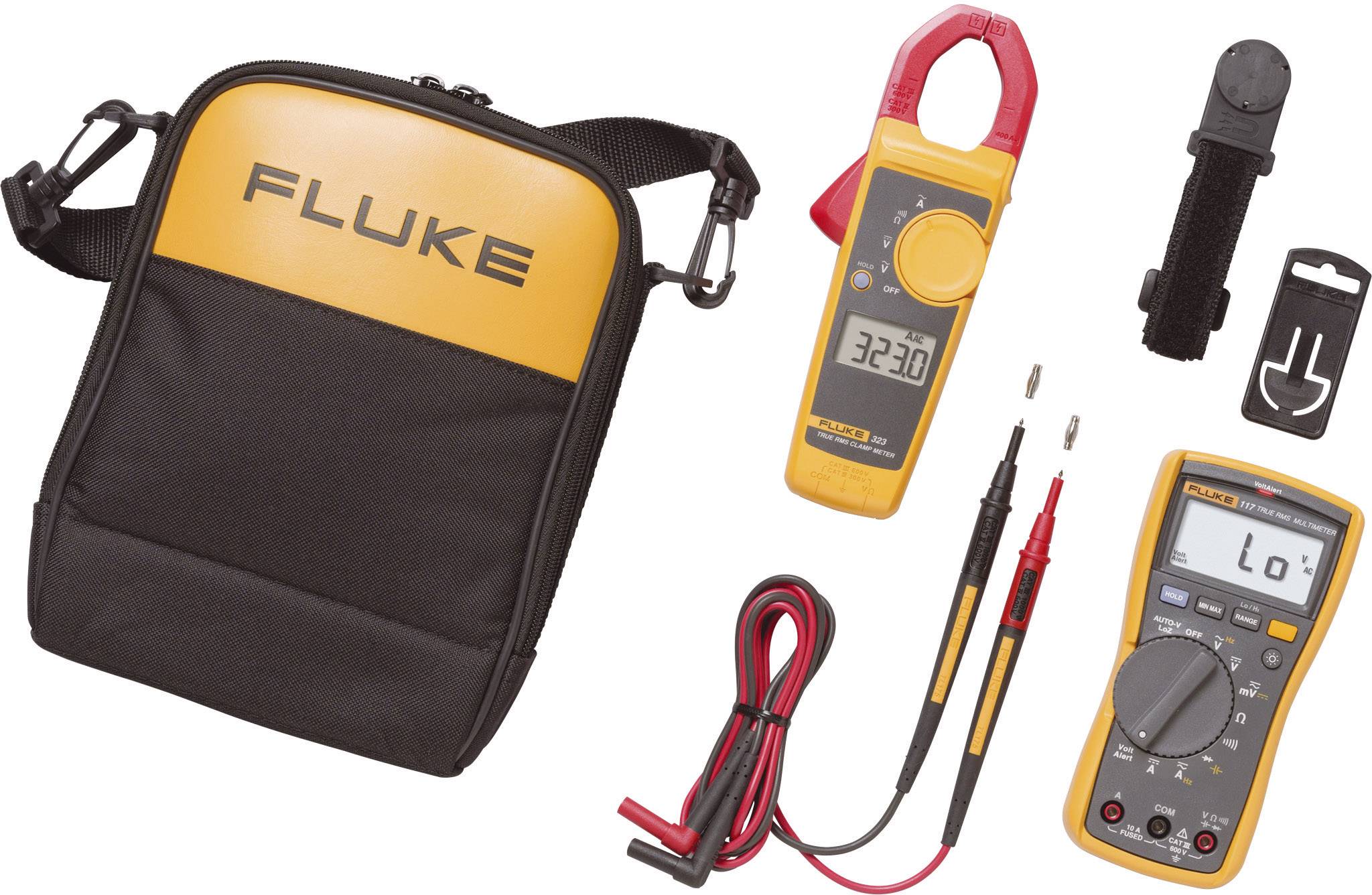

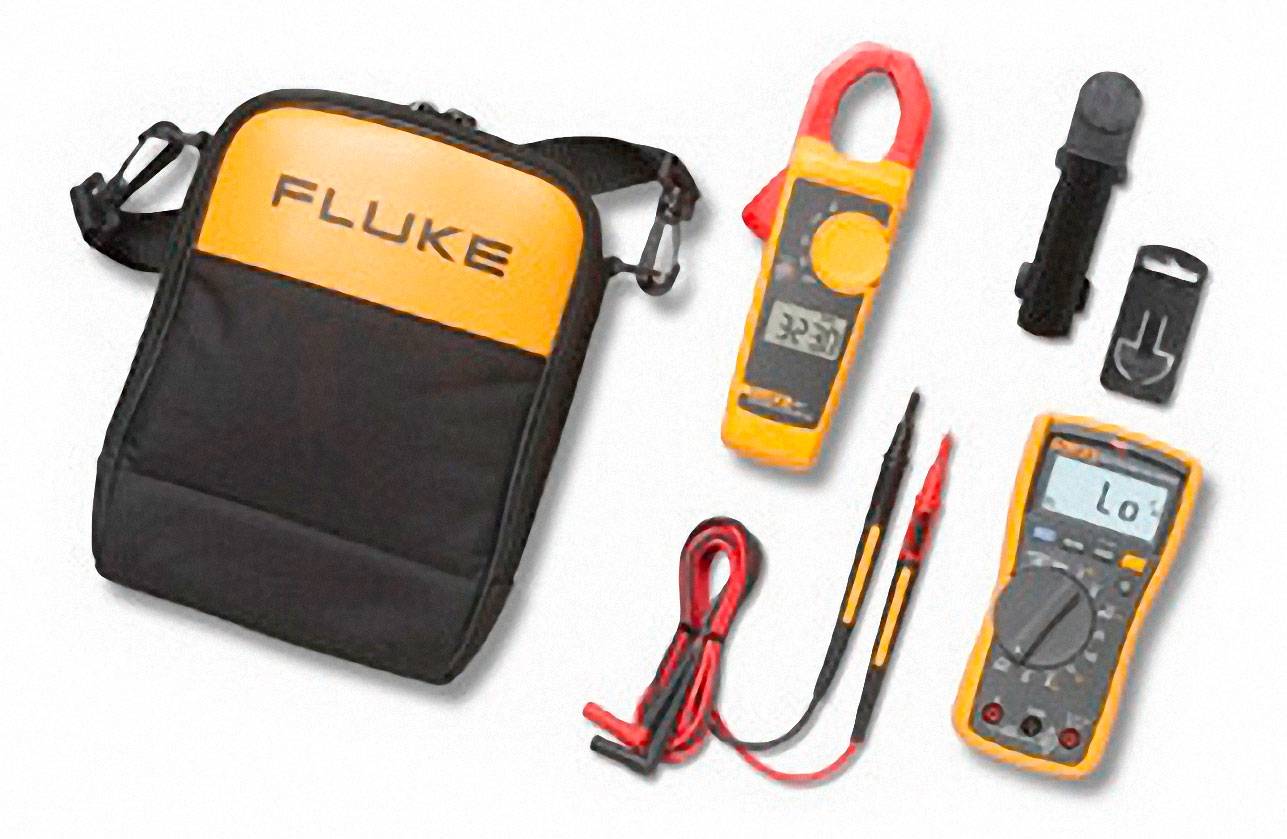

This combo kit pairs the new Fluke 117 DMM with a Fluke 322 clamp meter for productive and effective troubleshooting in one total solution, including the new C115 durable soft carrying case for protection and easy meter transportation.
