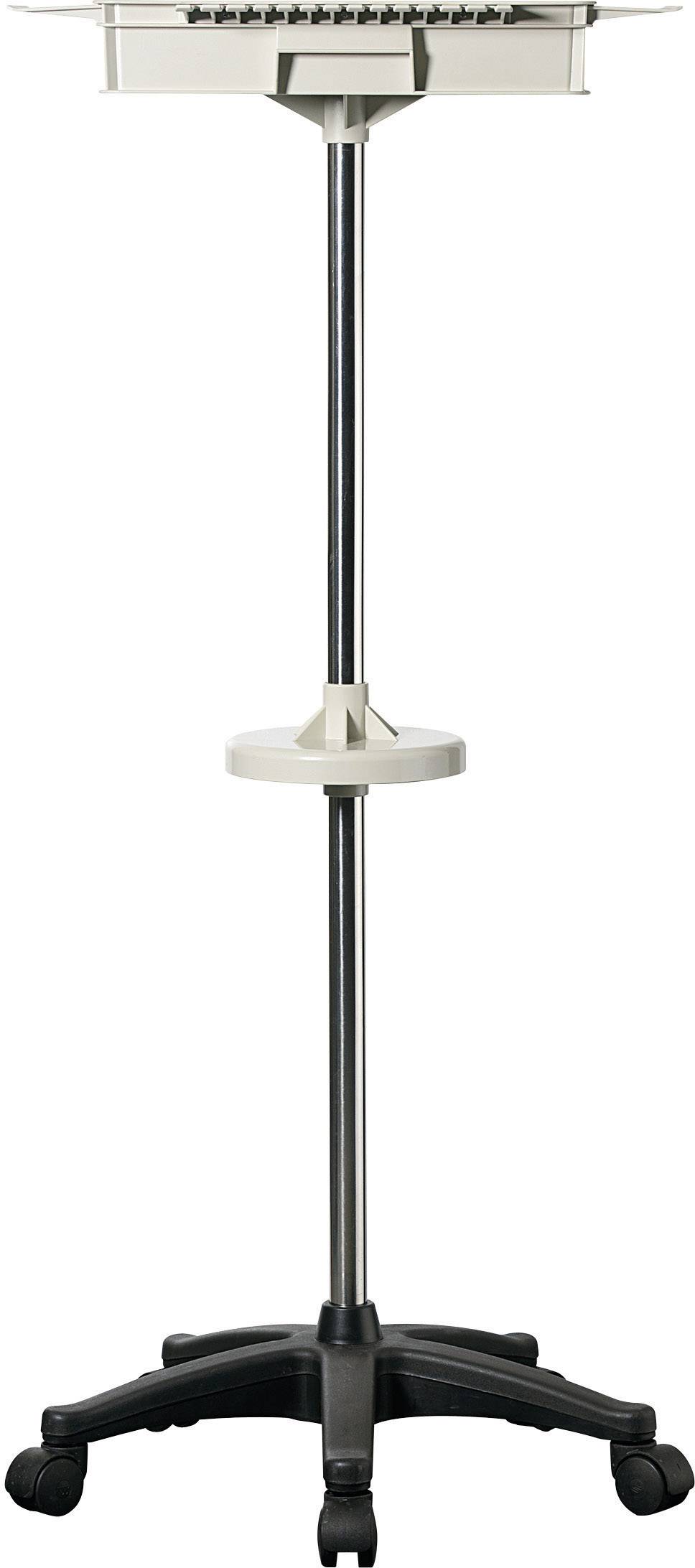

VOLTCRAFT ML-10 Test lead holder ML-10
Conrad Electronic
€ 224.99*
EAN:
Part number:
Item no:
Item 1 of 7

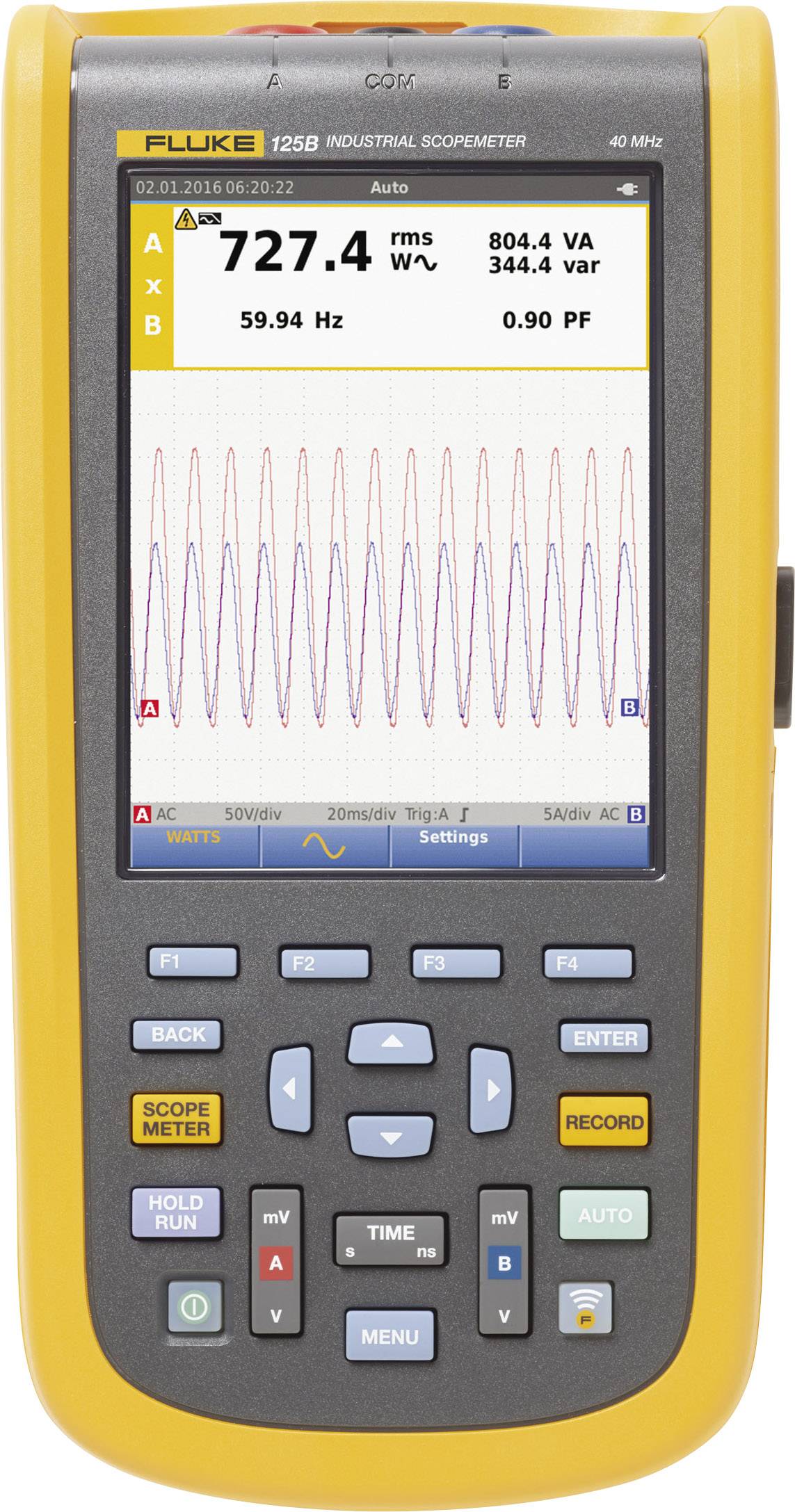

Portable industry oscilloscope Fluke ScopeMeter-125 B/EU
- 40 MHz
- No. of analogue inputs 2
Technical specifications
- Active matrix color TFT
- Displays
640 x 480 pixels
- Screen size
14.5 cm (5.7")
- Time base
10 ns - 500 s/div
- Vertical deflection
5 mV - 200 V/div
- Input impedance
1 MΩ
- Input coupling
AC, DC
- Input voltage
10 V/DC up to 21 V DC
- Power supply (details)
Li-ion battery 10.8 V
- Dim
(L x W x H) 55 x 132 x 259 mm
- Weight
1.4 kg
- Height
259 mm
- Length
55 mm
- Width
132 mm
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Oscilloscope features
Multimeter functions
- Type
125B/EU
- Bandwidth
40 MHz
- Channel sample rate
4 GS/s
- Product type
Handheld oscilloscope
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1424968 Fluke 125B/EU Handheld oscilloscope 40 MHz 2-channel 4 GS/s Multimeter functions 1 pc(s) |  PDF |
Description
The Scopemeter industry oscilloscope of the series 120 B contain innovative features that will allow technicians in troubleshooting accelerate and in the light of the results of their systems ready for operation. Waveform display with the trigger and configuration technology Connect-and-View™ as well as automatic display related measurement results are set with the help of the Fluke-Intella™ technology - and all this without any manual settings. With the help of the "Recorder Event Detect" functions are difficult to be detected intermittent events recorded and logged and can be easily displayed and analyzed.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Portable oscilloscope Fluke 125 B
- Shielded test leads with black ground lines
- Test lead, black (for grounding)
- Hook clamps (red, blue)
- Banana plug to BNC adapter (black, 1 piece)
- 10:1 voltage probe
- Alternating current clamp-on ammeter i400S
- USB-angle adapter
- WLAN USB adapter
- Switched-mode power supply, adapter/Battery Charger
- Li-ion battery set
