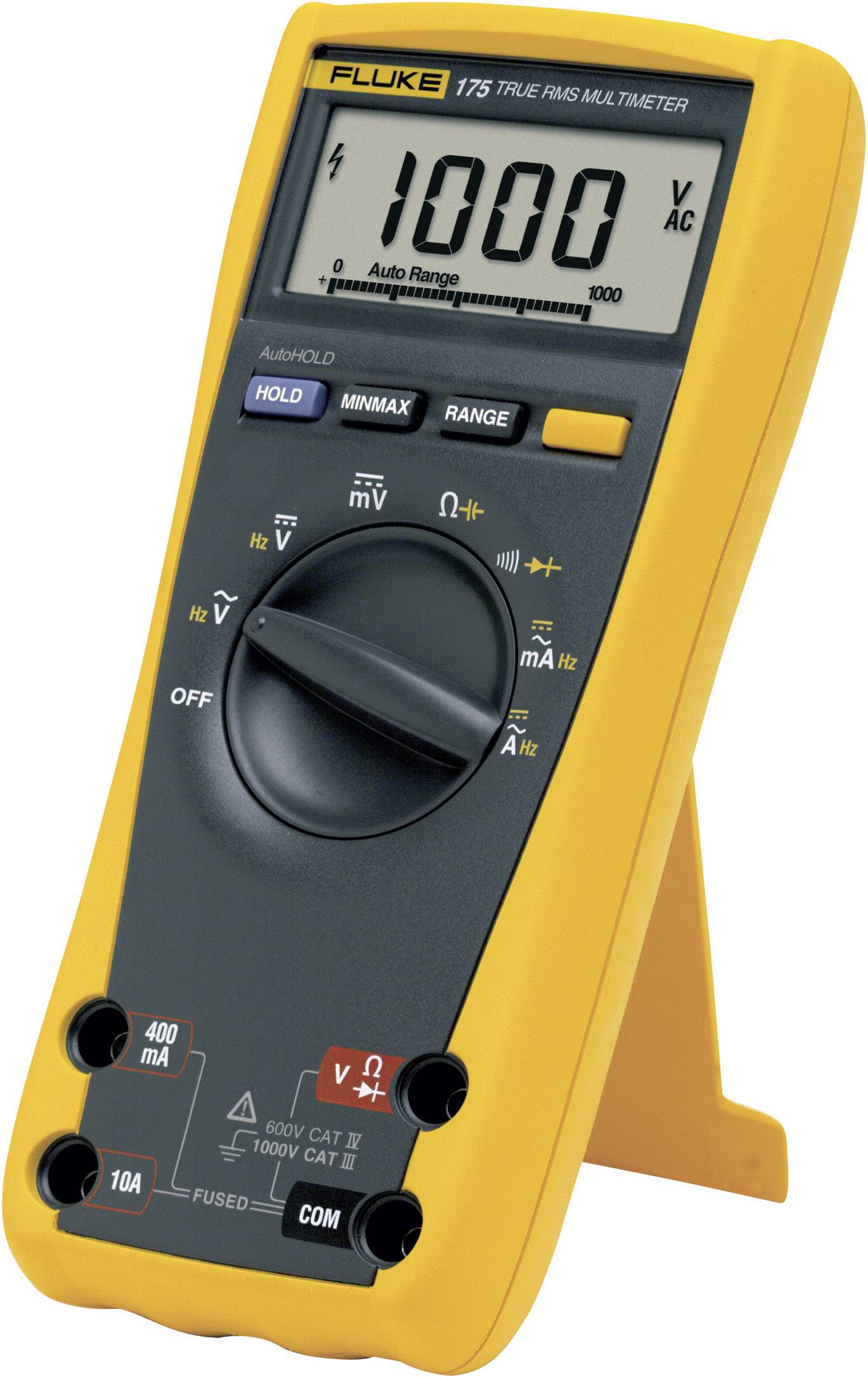

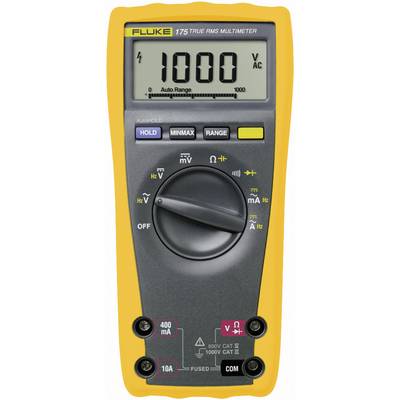

Name: Fluke 175 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Brand: Fluke
SKU: 120605
Availability: InStock
Rating: 5 (1 reviews)

(1)

Show reviews

Average rating

Overall rating

5 of 5 stars

Evaluation overview

digital multimeter

I've been using Fluke multimeters for over 30 years. I recently replaced my old one with this newer model and it fulfils all my expectations. Only time will tell if this one can last 30 years too...

Item 1 of 2

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

€435.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 435.00	€ 435.00
		€ 435.00	€ 435.00
incl. VAT plus Shipment

Report legal concerns

Fluke 175 Digital Multimeter, calibrated to manufacturer standards CAT III 1000 V, CAT IV 600 V

True-RMS
CAT III 1000 V
0.15 basic difference

Voltage reading range DC (min.): 0.1 mV

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.01 mA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.01 mA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.1 Ω - 50 MΩ

Reading range - capacity: 1 nF -10000 µF

Frequency reading range: 0.01 Hz - 100 k Hz

DC resistance: 10 MΩ

AC resistance: 10 MΩ

Basic accuracy: 0.1 %

Measurement type (details): True RMS

Frequency range: 45 Hz -1 kHz

Interfaces: none

Power supply (details): 9 V battery pack

Height: 185 mm

Width: 90 mm

Weight: 420 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: 175

Display: Digital

Display (counts): 6000

Dim: (W x H) 90 mm x 185 mm

Factory colour: Multicolour

Basic accuracy: 0.1 %

Displays: 6000 digits

Product type: Handheld multimeter

User & Safety Instructions
User & Safety Instructions 120605 Fluke 175 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000	PDF	Download

This multimeter has all the functions which are needed to move the majority of electrical and electro-mechanical defects and problems with heating or ventilation to the bottom.It is easy to use and structure in comparison to the original 70 Series Fluke several improvements, including the ability to conduct real effective measurements, more measurement functions, meeting the latest safety standards and a much larger and better-read display.

Features

TrueRMS True RMS (AC)
0.1% basic difference
6000-count display range
bargraph and backlight
Autoranging, disengaged
Display Hold and Auto Hold
frequency and capacitance measurement
Resistance, Continuity and Diode test
temperature
min - / MaxMean coverage • Filter mode for smoothing very unstable signals
Closed Case Calibration via front box
EN 61010-1 CAT III 1000 V / CAT IV 600 V.
