Testing & Power Supply Testers & Meters Multimeters

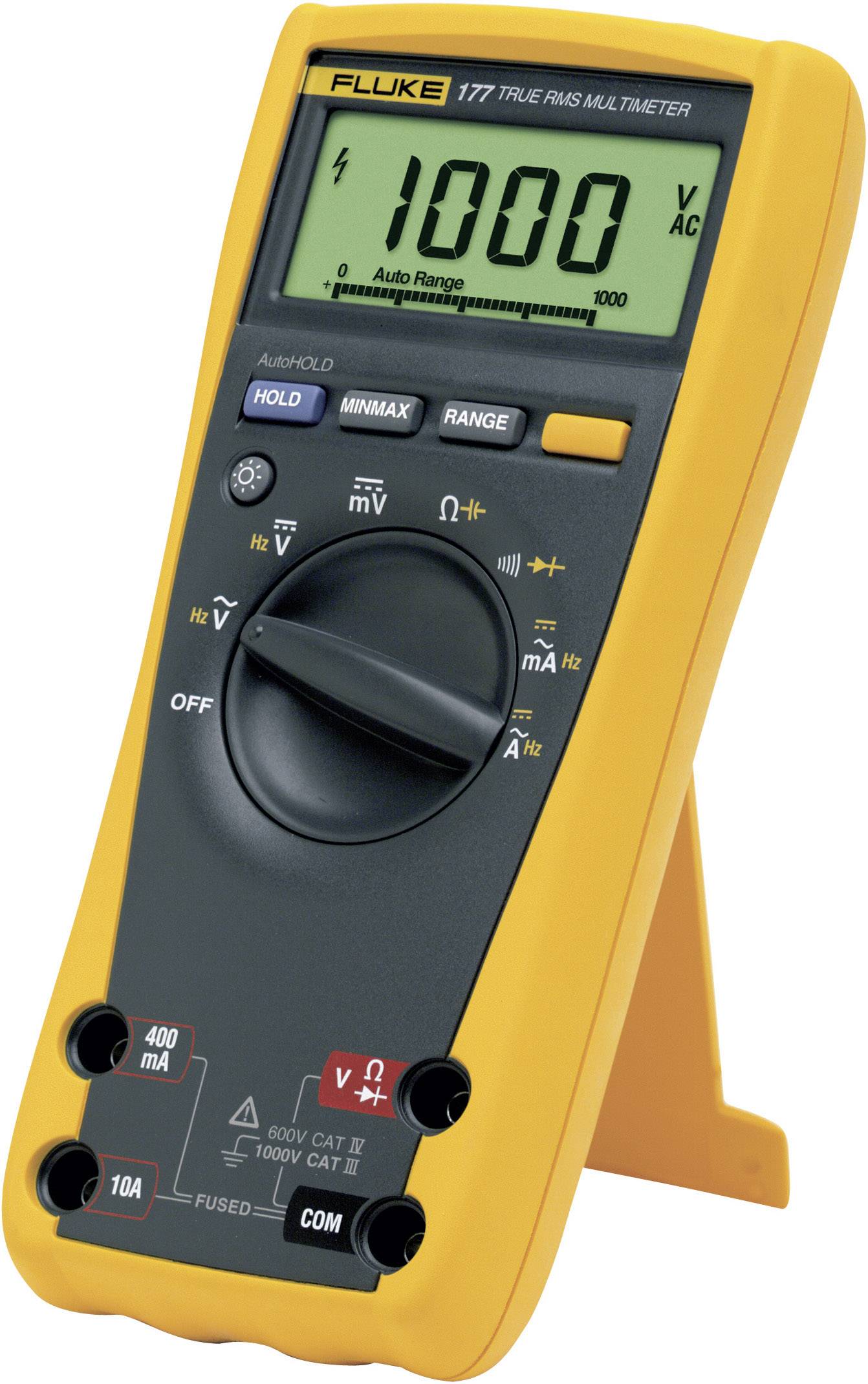

Fluke 177 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

EAN:
Part number:
Item no:
(1)

Show reviews

Customer reviews

Average rating
Overall rating
5 of 5 stars

Evaluation overview

5 of 5 stars
VerfasserRating from 2.6.2012

digital multimeter

I've been using Fluke multimeters for over 30 years. I recently replaced my old one with this newer model and it fulfils all my expectations. Only time will tell if this one can last 30 years too...

Was this review helpful to you?
(1)
(0)
Report evaluation
Fluke 177 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Fluke
Sale through:
Conrad Electronic Terms & Conditions
Online available
Ready for dispatch: Tue 9.9. - Wed 10.9.2025
€509.00
incl. VAT
plus Shipment
ContentQuantityPiece priceTotal
1 pc(s)1€ 509.00€ 509.00
€ 509.00€ 509.00
incl. VAT
plus Shipment
Report legal concerns

Digital-Multimeter Fluke 177

  • TrueRMS actual value AC
  • 0.09% basic accuracy

    Technical specifications

    Voltage reading range DC (min.)

    0.1 mV

    Voltage DC reading range (max.)

    1000 V

    V AC reading range (min.)

    0.1 mV

    V AC reading range (max.)

    1000 V

    Amperage reading range DC (min.)

    0.01 mA

    A DC reading range (max.)

    10 A

    A AC reading range (min.)

    0.01 mA

    Amperage reading range AC (max.)

    10 A

    Reading range - resistance

    0.1 Ω - 50 MΩ

    Reading range - capacity

    1 nF -10000 µF

    Frequency reading range

    0.01 Hz - 100 k Hz

    DC resistance

    10 MΩ

    AC resistance

    10 MΩ

    Basic accuracy

    0.09 %

    Measurement type (details)

    True RMS

    Frequency range

    45 Hz - 1 kHz Hz

    Interfaces

    none

    Power supply (details)

    9 V battery pack

    Height

    185 mm

    Width

    90 mm

    Weight

    420 g

    Manufacturer's standards (no certificate)

    Reading category

    CAT III 1000 V

    CAT IV 600 V

    Voltage metering

    AC/DC

    Current reading

    AC/DC

    Type

    177

    Display

    Digital

    Display (counts)

    6000

    Dim

    (W x H) 90 mm x 185 mm

    Factory colour

    Multicolour

    Basic accuracy

    0.09 %

    Displays

    6000 digits

    FALSE

    Product type

    Handheld multimeter

    Documents & Downloads

    Datasheet
    Datasheet 120788 Fluke 177 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
    de PDF
    Download

    Description

    These circuit analyzers offers all functions, which one needs, in order to remove the most electrical and electromechanical errors and also problems with heating or ventilation.They are easy to use and show some improvements as compared to the original series 70 of Fluke, for instance the possibility of conducting real-effective measurements, more measurement functions, fulfilling the latest safety standards and a much larger and better readable display.

    Features

    • TrueRMS genuine rms (AC)
    • 0,09% basic deviation
    • 6000 digits indicator extent
    • Bar line display and background lighting
    • Automatic ranging unit, disengaged
    • Display Hold and car Hold
    • Frequency and capacity measurement
    • Resistance, passage and diode test
    • Min. - /Max.Filter-average detection mode for smoothing of very unstable signals
    • Closed Case Calibration via front box
    • EN 61010-1 CAT III 1000 V / CAT IV 600 V.

    Scope of delivery

    • 1 battery (9 V pack)
    • 1 set of test leads
    • Operating instructions
