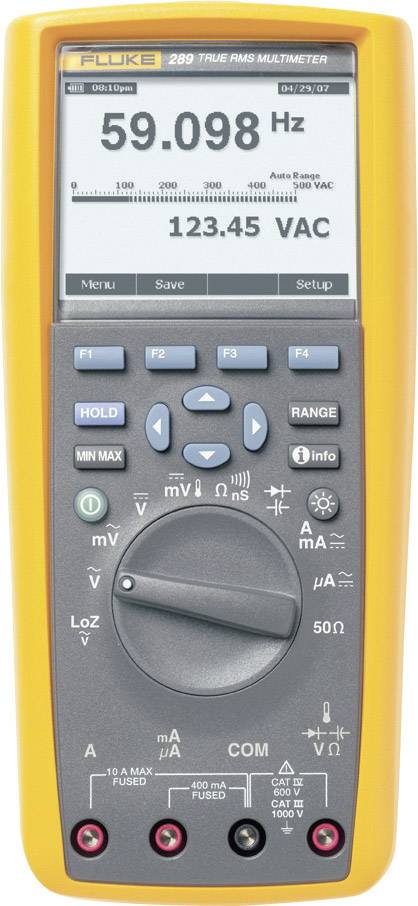

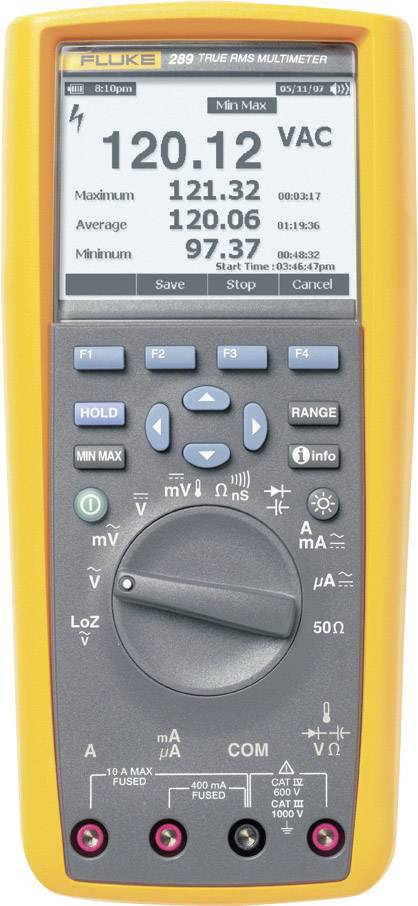

Name: Fluke 289/EUR Handheld multimeter Digital Graphics display, Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 5
Brand: Fluke
SKU: 124366
Availability: InStock

Item 1 of 8

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

Do your needs go beyond this?

€1,229.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 1,229.00	€ 1,229.00
		€ 1,229.00	€ 1,229.00
incl. VAT plus Shipment

Report legal concerns

289/EUR

Data logger with 10,000 measured data
0.025% basic accuracy
100 kHz AC bandwidth

Voltage reading range DC (min.): 0.001 mV

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.001 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.01 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.01 µA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.001 mV - 500 MΩ

Reading range - capacity: 1 pF - 50 mF

Frequency reading range: 01 Hz - 1 MHz

Temperature: -200 to +1350 °C

DC resistance: 10 MΩ

AC resistance: 10 MΩ

Basic accuracy: 0.025 %

Measurement type (details): True RMS

Frequency range: 20 Hz -100 kHz Hz

Interfaces: optical

Power supply (details): 6 batteries (type AA)

Height: 222 mm

Width: 102 mm

Weight: 871 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: 289/EUR

Display: Digital

Display (counts): 50000

Dim: (W x H) 102 mm x 222 mm

Features: Graphics display
Data logger

Temperature reading range (max.): +1350 °C

Temperature reading range (min.): -200 °C

Basic accuracy: ± 0.025 %

Displays: 50 000 (320 x 240 Pixel)

Product type: Handheld multimeter

User & Safety Instructions
User & Safety Instructions 124366 Fluke 289/EUR Handheld multimeter Digital Graphics display, Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 5	PDF	Download

The error search function, the resolution and the accuracy makes the Fluke 289 the ideal measuring instrument for demanding applications. It offers functions for the determination of problems in motor drive controls, in the Process automation, in the energy distribution and in electromechanical systems. The device records measurement data, which can then be shown as numeric value or as trend curve in the graphics display.

Features

Large graphic display and 50,000 counts with white backlight
Logging function for 10,000 measured values with trend representation
Built-in help feature
Recording of multiple measurements
Continuous data recording up to approx. 200 hours
Rapid detection of peak value (250 µs)
Soft keys and scrolling buttons
Upgradeable firmware
Measurement with low input impedance "LoZ"
Low pass filter for accurate measurements on adjustable motor drives
Low ohmic measurement up to 0.001 Ω for measurements of motor coils or contact resistances.
