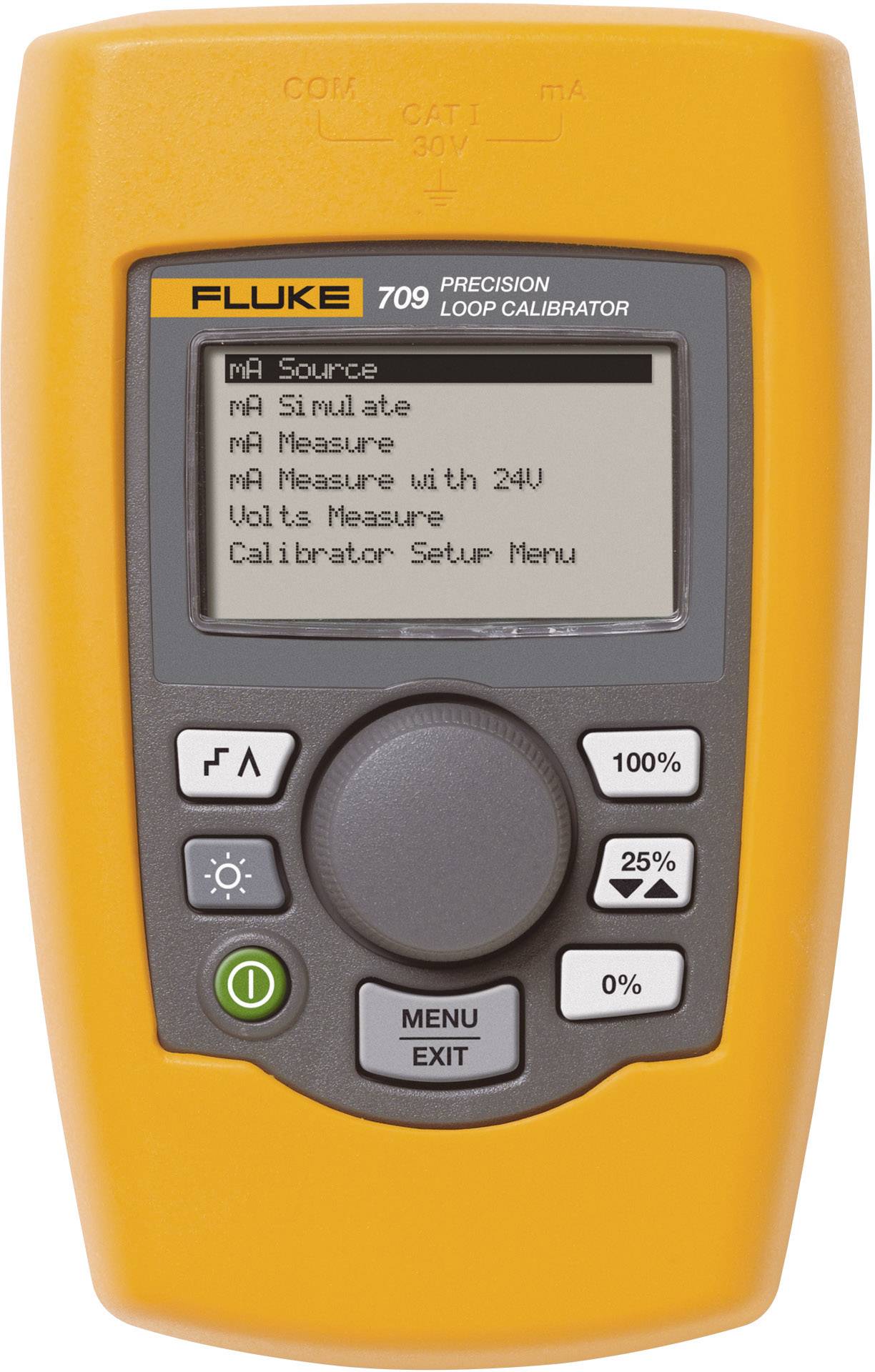

Current loop calibrator with HART communication Fluke 709 H
- HART communication
- First-class accuracy of 0.01%
- Intuitively operable with Quick-Set-control knob for quick settings
Technical specifications
- Resolution: 1 μA in mA-areas and 1 mV in voltage ranges
- Operating temperature range: -10 °C to 55 °C
- Humidity range: 10 to 95%, non-condensing
- Load voltage of the current loop: 24VDC at 20 mA
- Surge protection: 240VAC
- Surge protection
- 28 mA DC
- Display (details): 128 x 64 pixels
- Basic accuracy: 0.01%
- Direct current measuring range: 0 - 24 mA.
- Dim
(L x W x H) 150 x 90 x 30 mm
- Weight
300 g
- Height
30 mm
- Length
150 mm
- Width
90 mm
Manufacturer's standards (no certificate)
- Unit of measurement
Amperage
- Power supply
6 x AAA battery (included)
- Product type
Calibrator
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 398760 Fluke 709H Calibrator Amperage |  PDF |
Description

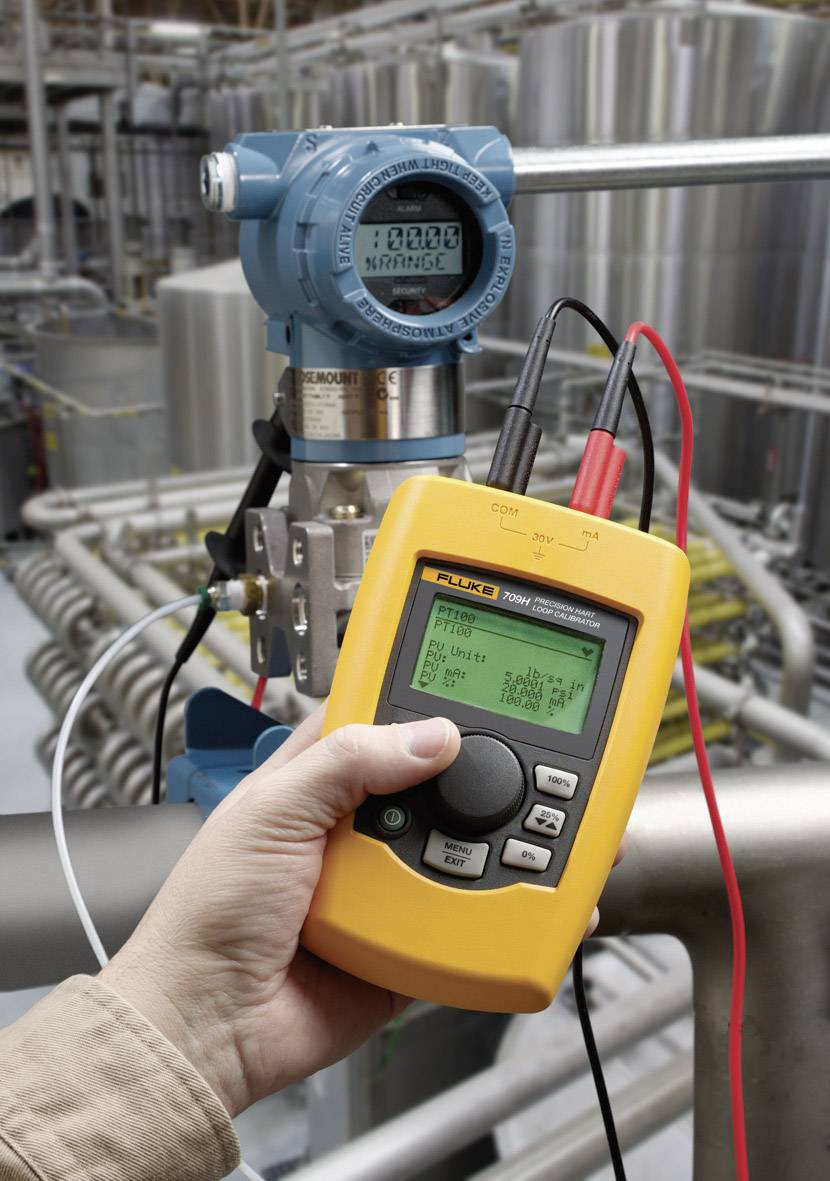

The calibrator Fluke 709 H is characterised by a user-friendly operation with Quick-Set-rotary knob. With this tool, you save time for measuring or type of voltage, or loop current and to supply a current loop. The protective holster is the technician fits well in your hand, and the large display with background lighting can easily be read, even in the dark, cramped work environments. The 709 H enables HART communication and supports a selected set of universal and common practice HART commands.
This text is machine translated.
This text is machine translated.
Features
- 24 V direct current loop power supply with mA measuring mode (-25% up to 125%)
- Resolution of 1 μA in mA-areas and 1 mV in voltage ranges
- Built-in switchable 250 Ω resistor for HART communication
- Simple connection via two cables for all measurements
- Automatic switch-off for protecting the batteries
- Times for stairs and ramp functions variably adjustable in seconds
- Valve Test (enter defined mA-values, setting with the % buttons).
Scope of delivery
- Alligator clip set

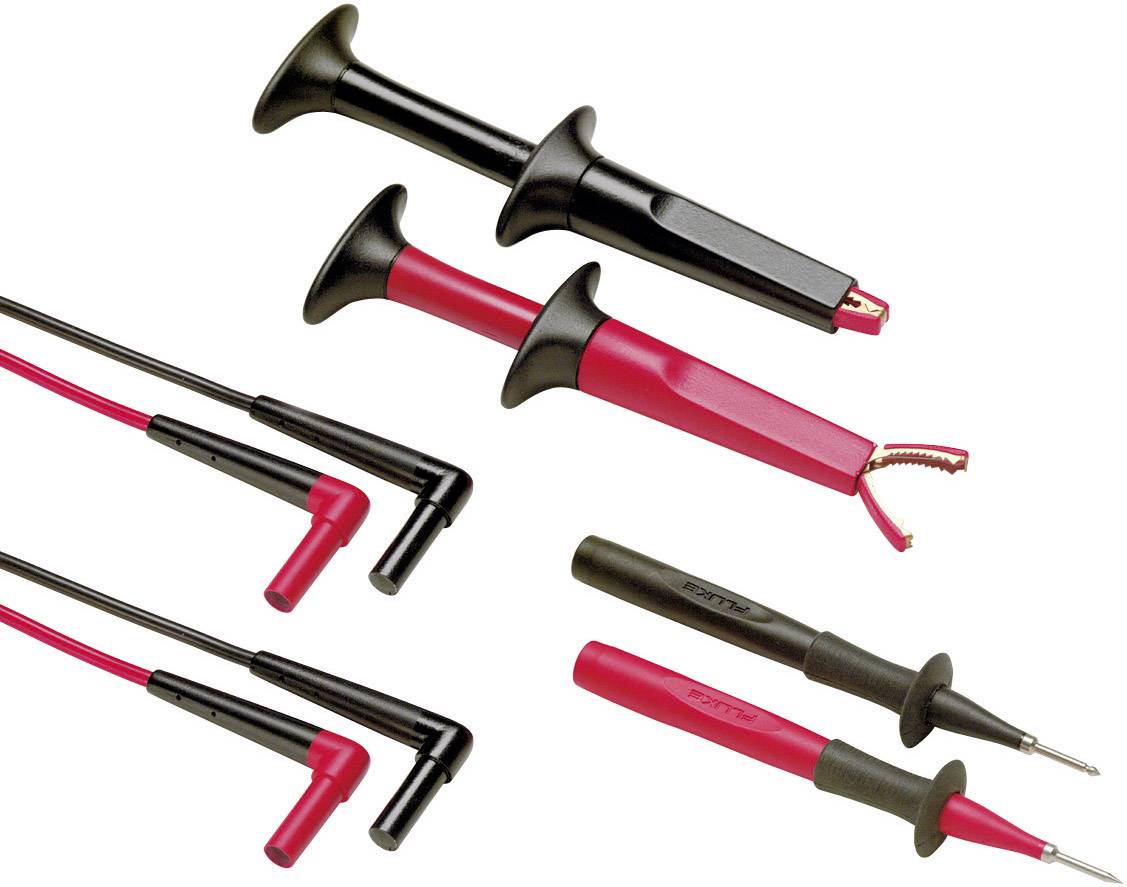

- Stackable test lead set
- Probes
- Suregrip hook clamps
- Upholstered carry bag
- Batteries
- Factory calibration certificate
- User manual.
Customer reviews
Average rating
0 of 5 stars
So far there are no reviews of this product.
Frequently Bought Together
(*All information is incl. VAT.)
Total price:
€ 2,760.98
Accessories
(*All information is incl. VAT.)The necessary accessories are required to use the article as described

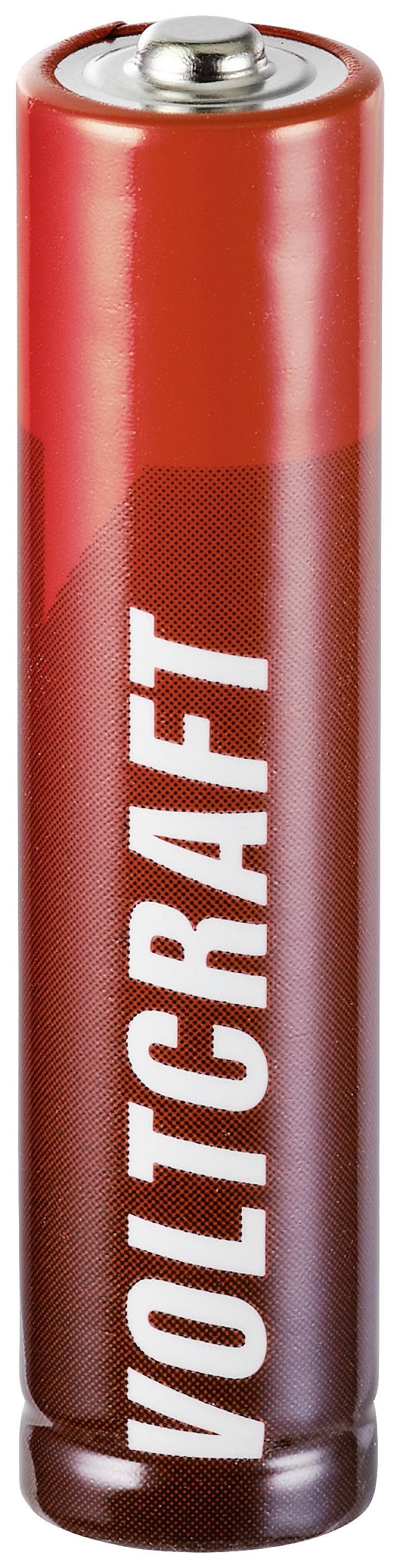

Suitable AAA Battery (Order 6x)
