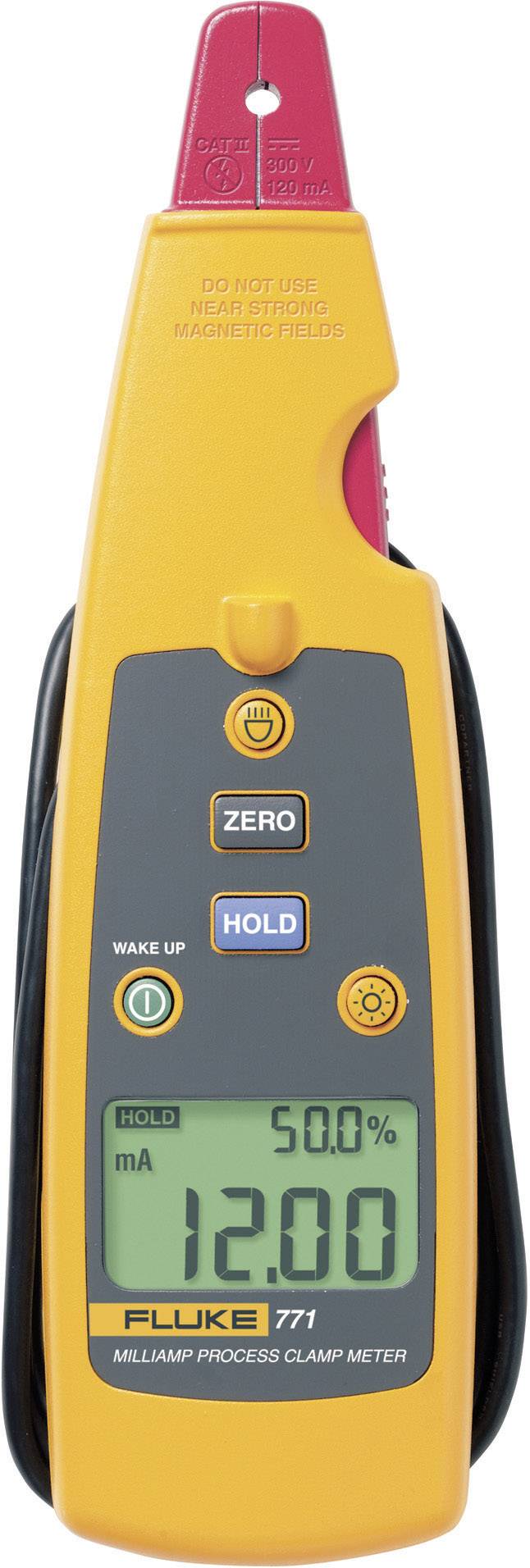

Name: Fluke 771 Clamp meter, Handheld multimeter Digital Current draw reading CAT II 300 V Display (counts): 1200
Brand: Fluke
SKU: 121553
Availability: InStock

Item 1 of 2

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

Do your needs go beyond this?

€1,185.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 1,185.00	€ 1,185.00
		€ 1,185.00	€ 1,185.00
incl. VAT plus Shipment

Report legal concerns

mA Process Clip-on ammeter Fluke 771

Current measurement in 4 - 20mA process current loops
Accuracy 0.2%
Simultaneous mA and % indication

Amperage reading range DC (min.): 0.01 mA

A DC reading range (max.): 100 mA

Reading range - resistance: -

Reading range - capacity: -

Frequency reading range: -

Temperature: -

Basic accuracy: 0.2 %

Measurement type (details): True RMS

Frequency range: 5 -500 Hz

Interfaces: none

Power supply (details): 2 type AA batteries.

Height: 212 mm

Width: 59 mm

Weight: 260 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Current reading: DC

Type: 771

Display: Digital

Display (counts): 1200

Dim: (W x H) 59 mm x 212 mm

Features: Current draw reading

Resolution: 0.01 mA

Basic accuracy: 0.2 %

Displays: LCD

Opening range of current clamps: 5 mm

Product type: Clamp meter

User & Safety Instructions
User & Safety Instructions 121553 Fluke 771 Clamp meter, Handheld multimeter Digital Current draw reading CAT II 300 V Display (counts): 1200	PDF	Download

With Fluke 771 you can measure current loops without interruptng them The big advantage is that, it is used for the maintenance and verification of the connected components should not be done out of range, or the loop has to be elaborately avoided. You save time when testing analogue inputs / outputs on a PLC. In addition, through this kind of measurement, the accidental opening of a critical loop, thereby causing operating losses are prevented.
