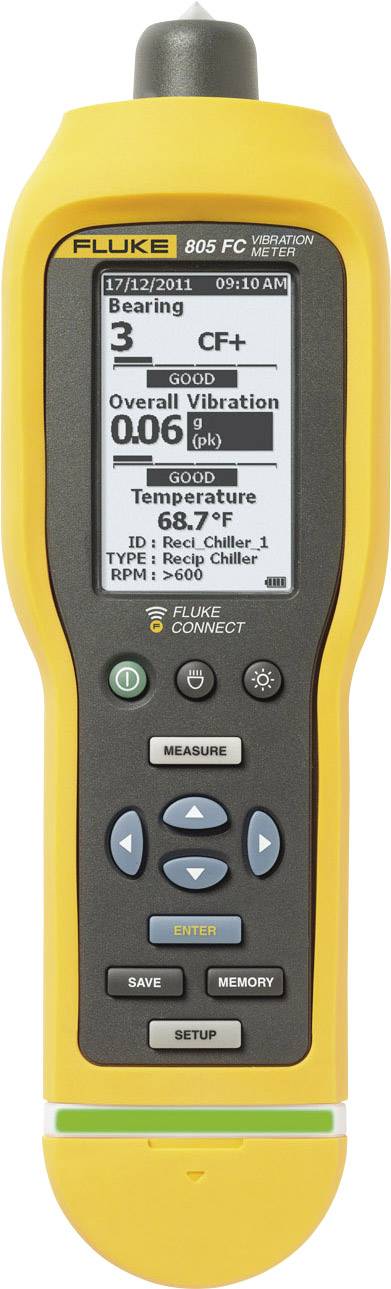

Fluke 805 Vibration Meter, with Crest Factor+,Fluke Connect® and Infrared Thermometer
- 5 tools in 1: Overall vibration, bearing impacting, temperature, machine health severity, and bearing health severity
- Get authorization to take next steps in an instant if machine health is at risk via Fluke Connect®
- Four-level severity scale assesses urgency of vibration problems
- Vibration measurement for acceleration, velocity, and displacement units of measurement
- Colored lighting system (green, red) and onscreen comments indicate how much pressure needs to be applied to take measurements
- Non-contact temperature measurement increases machine health screening capabilities
- External accelerometer support for hard to reach locations
Technical specifications
- Measuring frequency: 10 Hz - 20000 Hz
- Measuring range: 0.01 - 50 G
- Measurement functions: Vibration displacement, velocity, acceleration, Severity
- Measurement range of IR temperature: -20 to +200 °C
- Operating temperature range: -20 to +50 °C
- Operating voltage
2 Li-FE mignon batteries (AA)
- Dim
(L x W x H) 241 x 71 x 58 mm
- Weight
400 g
- Height
58 mm
- Length
241 mm
- Width
71 mm
- Display
LCD
- Reading type
Acceleration
Frequency
Speed
Vibration
Temperature
- Type
805FC
- Basic accuracy
± 5 %
- Product type
Vibration tester
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1380389 Fluke 805FC Vibration tester ± 5 % |  PDF |
Description
The reliable, repeatable, accurate way to check bearings and overall vibration.
Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.
What makes the 805FC the best choice?
A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture.
A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings.
A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable).
Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types.
Straight-forward user interface that minimizes the user inputs to RPM range and equipment type.
Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.
What makes the 805FC the best choice?
A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture.
A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings.
A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable).
Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types.
Straight-forward user interface that minimizes the user inputs to RPM range and equipment type.
Features
- Innovative sensor design minimizes measurement variations caused by device angle or contact pressure
- Consistent data quality at both low and high frequency ranges
- Four-level severity scale assesses urgency of problems for overall vibration and bearing condition
- Exportable data via USB
- Trending in Microsoft® Excel using pre-built templates
- Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines
- Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
- Compare vibration levels with ISO-10816 severity scales and store results to the Fluke Connect Cloud

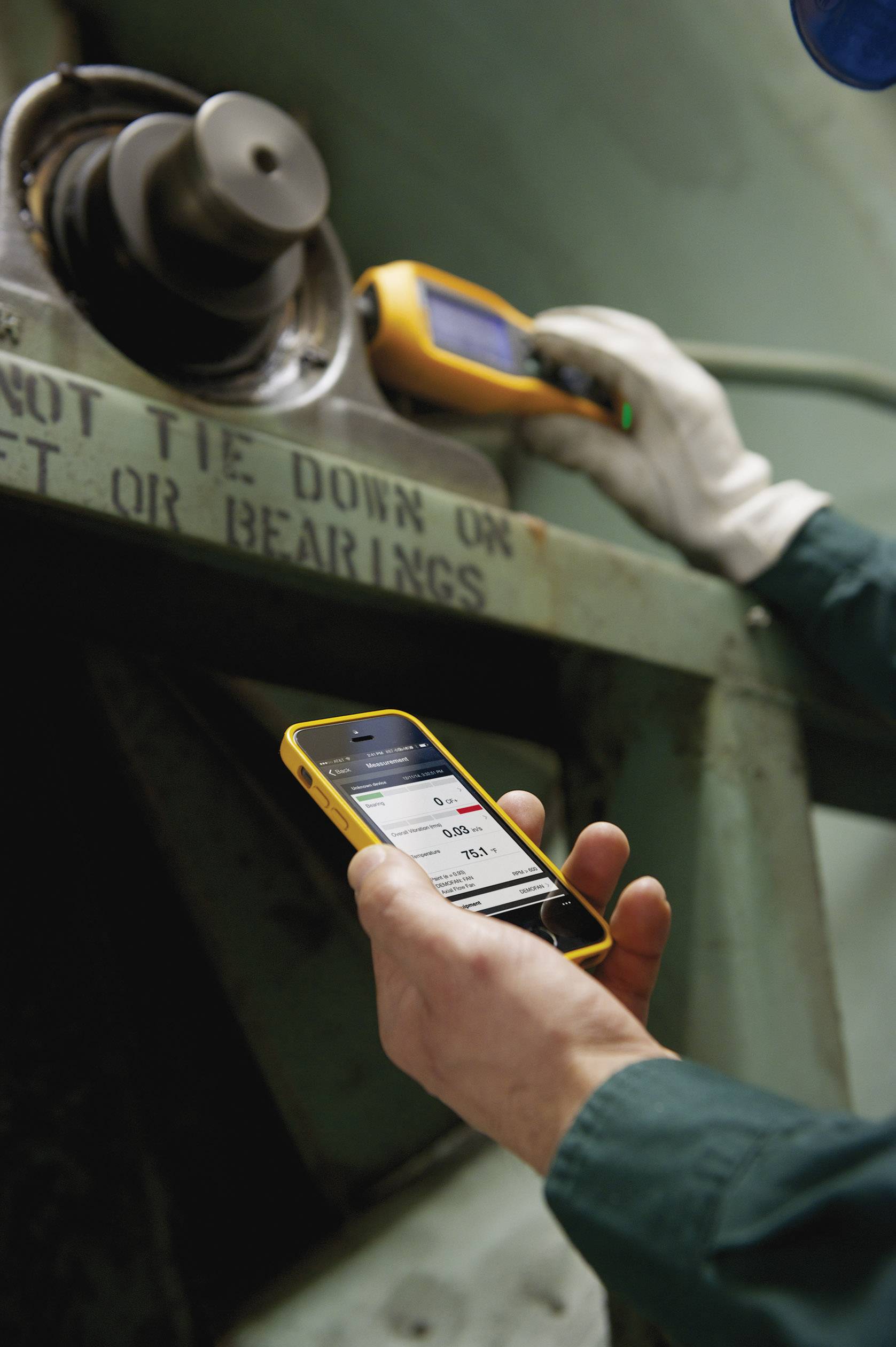

- Get authorization to take next steps in an instant if machine health is at risk via Fluke Connect® Share-Live™ video call*
- Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
- Temperature measurement with Spot IR Sensor increases diagnostic capabilities
- On-board memory holds and saves up to 3,500 measurements

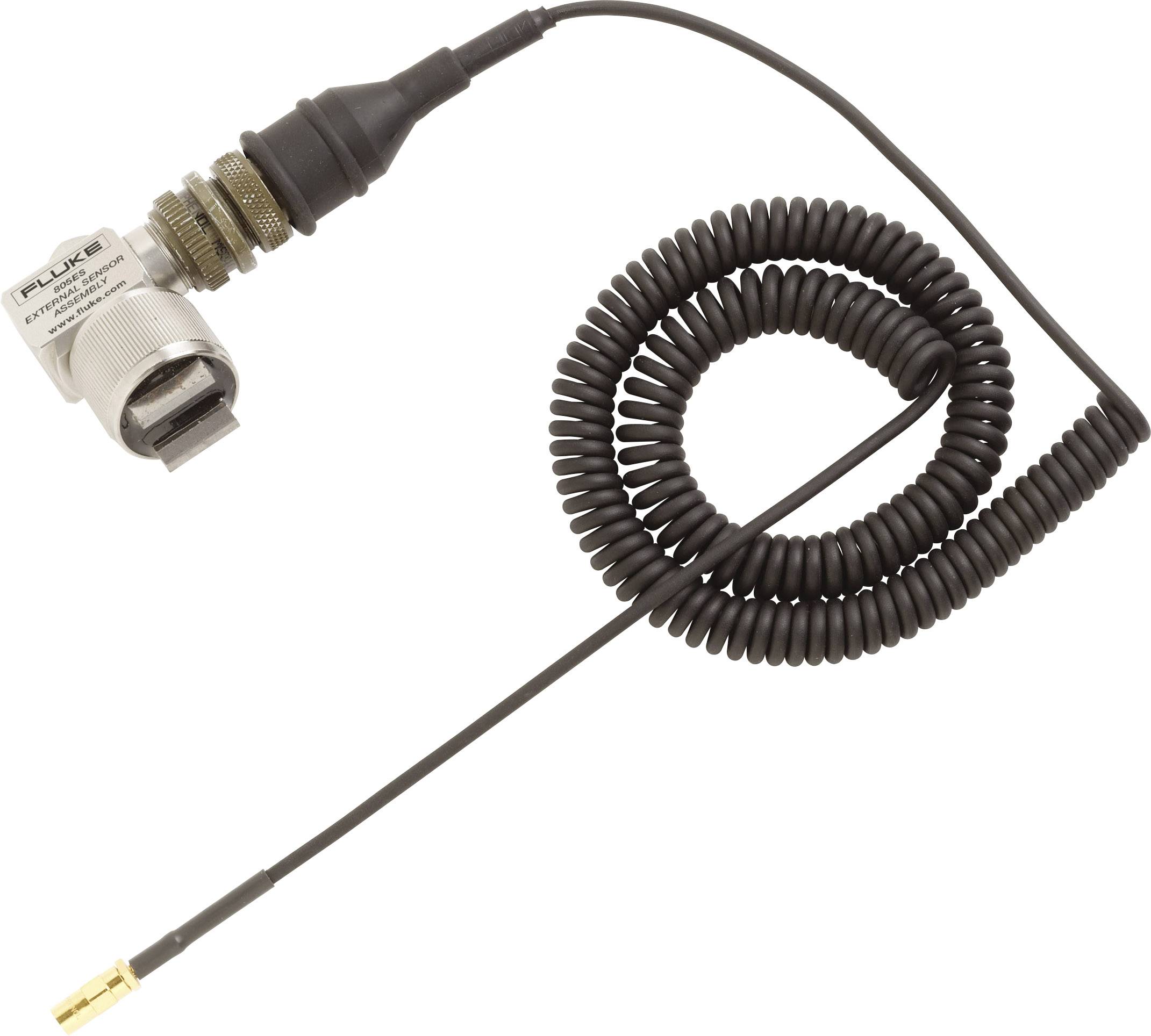

- External accelerometer support for hard to reach locations
- Flashlight for viewing measurement locations in dark areas
- Large screen with high resolution for easy navigation and viewing
Scope of delivery
- USB Cable
- Case
- Belt holster
- Quick reference guide
- CD-ROM with documentation
- 2 Batteries
System requirements
- Compatible with iPhone 4s and higher with iOS 8 or higher, iPad (in an iphone frame on the iPad) and Galaxy S4, Nexus 5, HTC One with Android ™ 4.4.x or higher.
