Name: Fluke 88V/A Handheld multimeter Digital Vehicle testing CAT III 1000 V, CAT IV 600 V Display (counts): 19999
Brand: Fluke
SKU: 1372898
Availability: InStock

Item 1 of 5

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

€1,295.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 1,295.00	€ 1,295.00
		€ 1,295.00	€ 1,295.00
incl. VAT plus Shipment

Only 4 piece(s) available

Report legal concerns

Kfz-Multimeter Fluke 88V/A

CAT III 1000 V, CAT IV 600 V
Konduktanzmessung for examination of the ignition coils
Built-in thermometer

Measuring range conductance: 0.01 - 60 nS
Measuring range duty factor: 0,001 - 0,999
Measuring range pulse duration: 0.1 ms-2s
Measuring range speed: 1 - 12000

Voltage reading range DC (min.): 0.1 mV

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.1 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.1 µA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.01 Ω - 50 MΩ

Reading range - capacity: 0.01 nF - 10000 µF

Frequency reading range: 0.01 Hz - 200 kHz

DC resistance: 10 MΩ

AC resistance: 10 MΩ

Basic accuracy: 0.1 %

Measurement type (details): True RMS

Frequency range: 5 kHz

Interfaces: none

Power supply (details): 9 V battery

Height: 186 mm

Width: 86 mm

Length: 32 mm

Weight: 625 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: 88V/A

Display: Digital

Display (counts): 19999

Dim: (L x W x H) 32 x 86 x 186 mm

Features: Vehicle testing

Temperature reading range (max.): +1090 °C

Temperature reading range (min.): -200 °C

Product type: Handheld multimeter

User & Safety Instructions
User & Safety Instructions 1372898 Fluke 88V/A Handheld multimeter Digital Vehicle testing CAT III 1000 V, CAT IV 600 V Display (counts): 19999	PDF	Download

Our cars are today with numerous electrical systems. And if vehicles with hybrid drive on the market, the number of these systems increase further. For this reason, the multimeter perhaps the most important instrument for troubleshooting. The Fluke 88V offers improved measurement functions, special search functions and high accuracy, both in conventional as well as for the new hybrid vehicles even more problems can be resolved.

This text is machine translated.

Features

0.1% DC accuracy
, 20,000 counts high resolution mode (4-1/2 digits) For precise measurements
Measurement of direct and alternating voltages up to 1000 V
Measurement of currents up to 10 A and of up to 20 A for a duration of up to 30 seconds Thanks to the integrated thermometer function you can save a separate instrument (
temperature measuring sensor included in the delivery)
Diode test for testing alternators
Frequency up to 200 kHz and % duty cycle
Resistance, continuity
Speed measurement with inductive sensor (included)
Millisecond pulse width measurement for injectors
Magnetic hanger for attaching the multimeter to the vehicle, So that you have your hands free for other work
Min/Max/average recording with Min/Max-Alert for automatic recording of deviations
Peak value recording for recording of short-term transients up to 250 µs
Relative value mode for deducting the measuring lead resistance in low-impedance measurements
Automatic and manual range selection for maximum flexibility
AutoHOLD for recording stable measured values, In order to avoid noisy signals
, large display digits and two-stage bright background lighting for improved readability
Analogueue segment display for tracking of changing or unstable signals
"Input Alert" gives an acoustic signal when incorrectly connected to the input sockets
improved snooze mode reduces the power consumption and protects the battery
separately accessible battery compartment for fast Battery change without opening the housing
"Classic" design with new removable holster including integrated holder for test leads and measuring tips
Thanks to an input impedance of 10 megohm, the circuits are not loaded; the multimeter can also be used safely for computers.

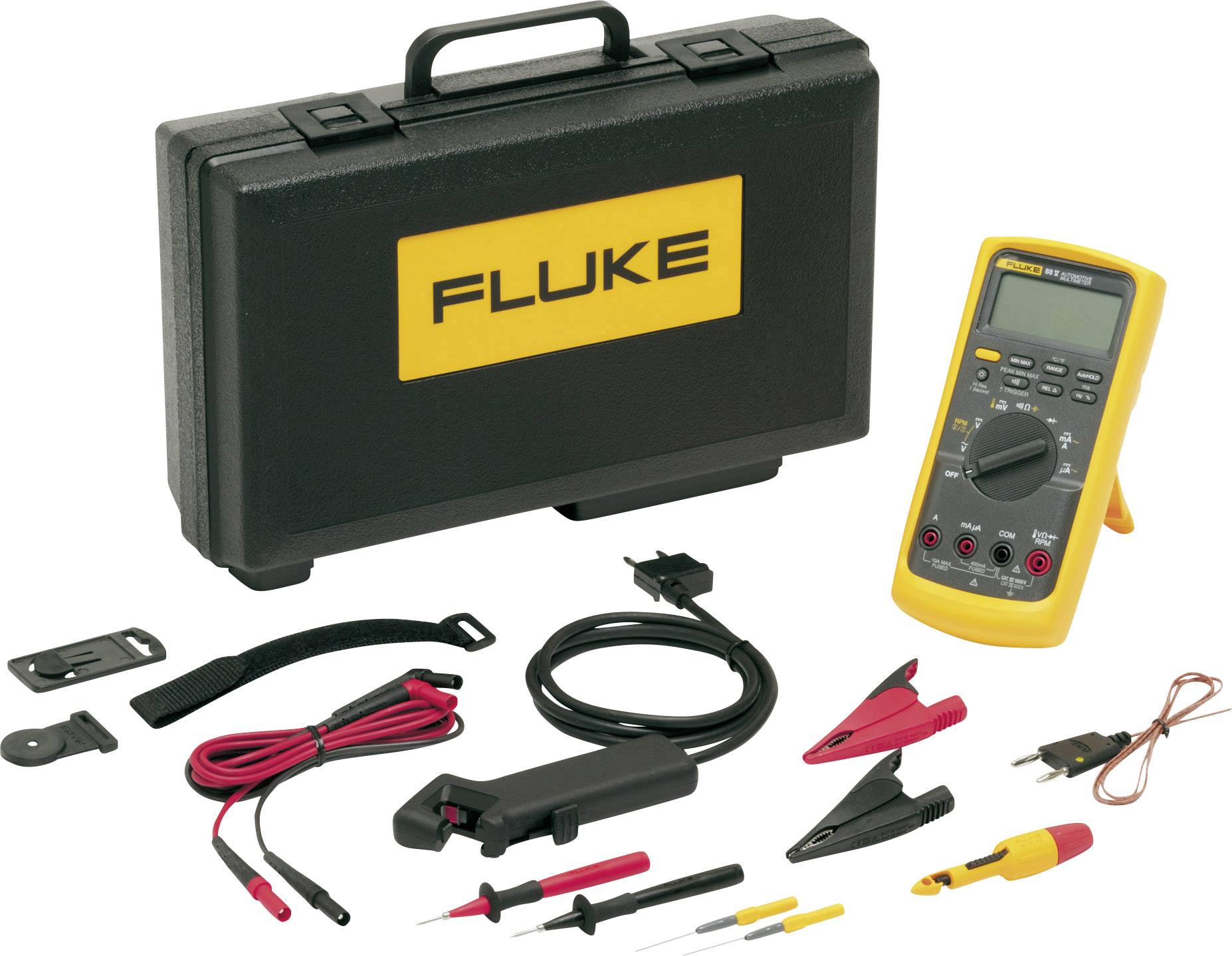

Scope of delivery

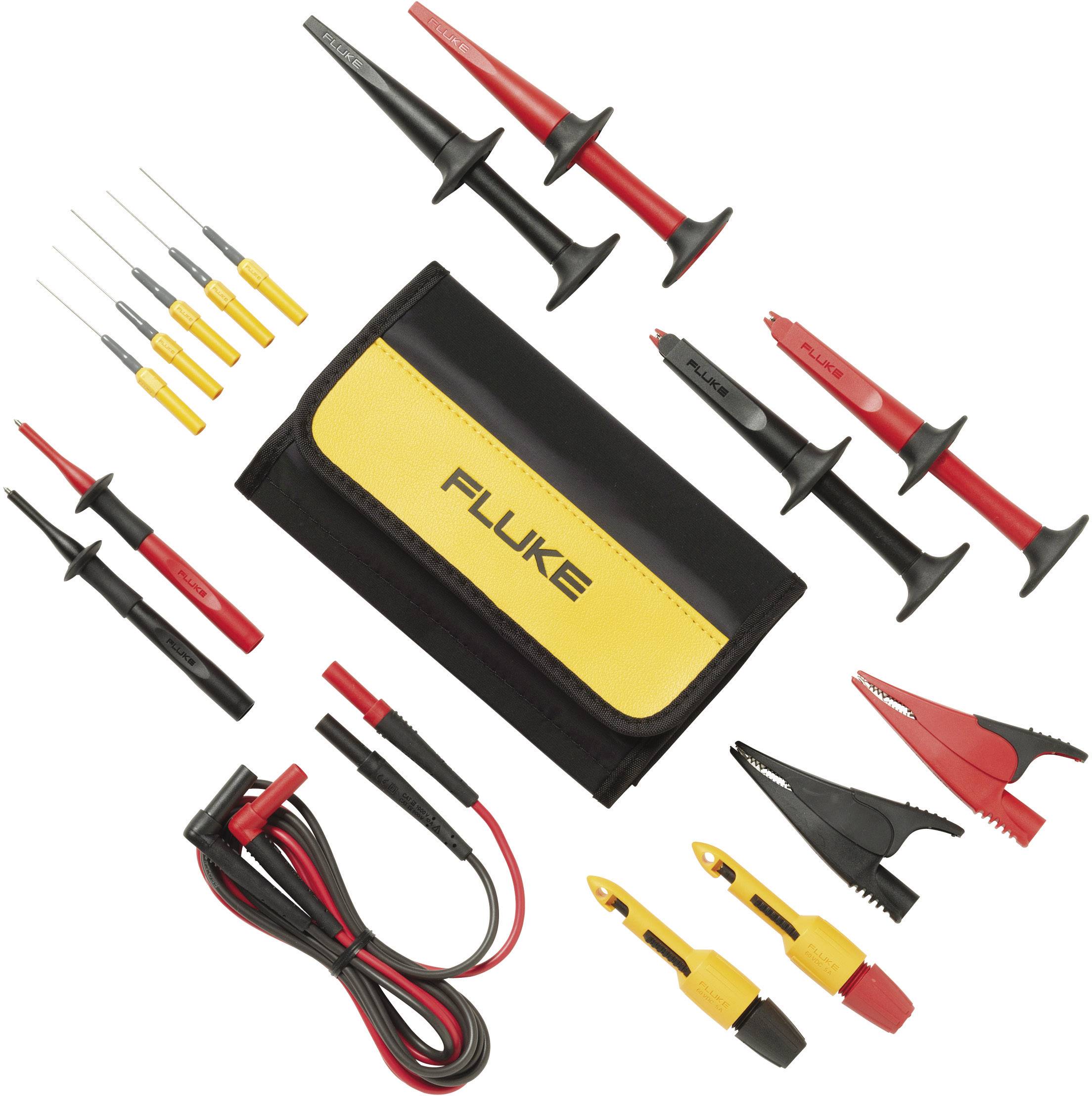

H80M holster with TPAK attachment set TL 224 SureGrip™ silicone test leads set TP220 SureGrip™ probe tips set SureGrip™ AC285 set of large alligator clips
80BK integrated temperature probe
EA-100 speed sensor
two car backprobe pins
Insulations vials
C800 hard shell case
User manual and quick start guide.
