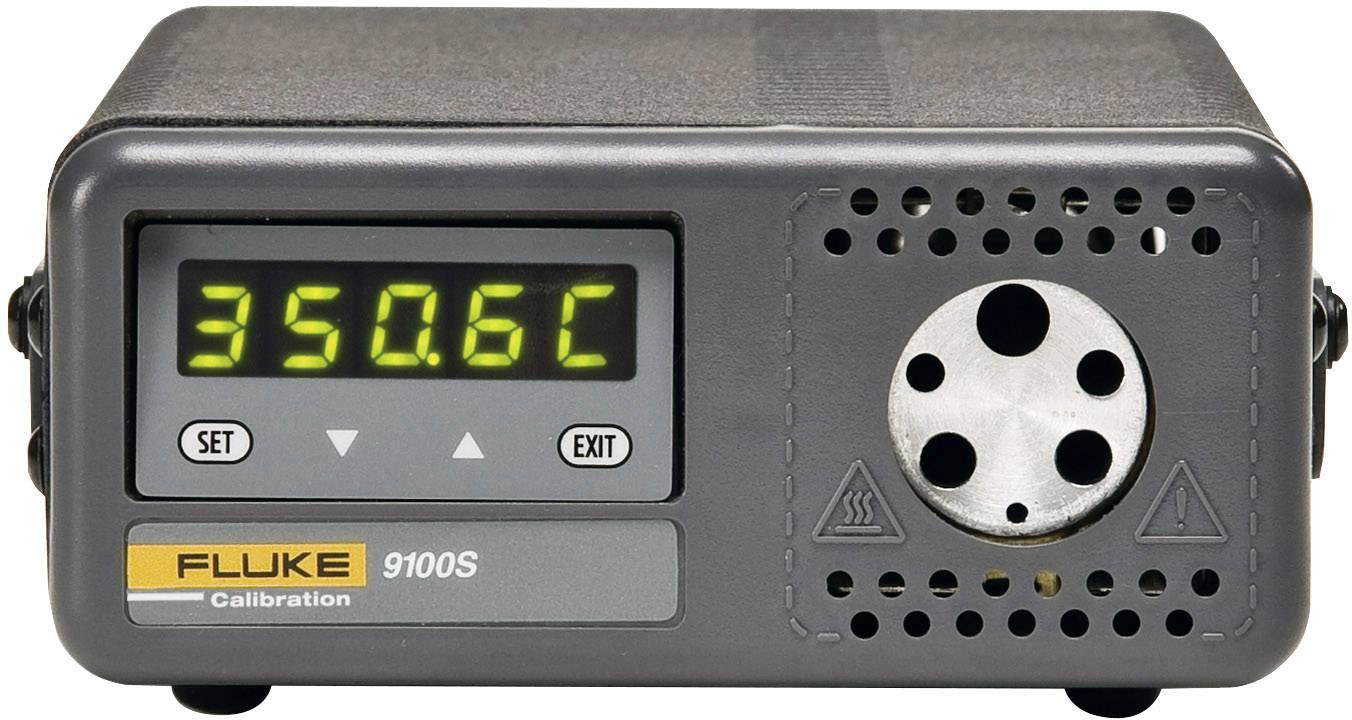

Fluke Calibration 9100S-A-256 Calibrator Temperature
Conrad Electronic
€ 3,265.00*
EAN:
Part number:
Item no:
9100S-A Handheld Dry-Well
- Since we introduced the world’s first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world. It’s simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375°C (707°F) and is perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field. Plug it in, switch it on (Note, these wells are fixed and not interchangeable,) set the temperature with the front-panel buttons, and insert your probe into the properly sized well. Compare the reading of your device to the display temperature or to an external reference, and the difference is the error in your device. With a proprietary Fluke Calibration temperature controller, the 9100S has a display resolution of 0.1 degrees, an accuracy of ±0.5°C, a stability of ±0.1°C, and a stabilization time of just five minutes
Technical specifications
- RS-232 connection
- Warm-up time: 35 °C to 375 °C in 9.5 minutes
- Cooling Time: 375°C to 100°C in 14 minutes
- Stabilization: 5 minutes
- Stability: ±0.07 °C at 50 °C; ±0.1 °C at 100°C; ±0.3 °C at 375°C.
- Calibration range (thermometer)
+35 to +375 °C
- Temperature accuarcy (details)
0.25 °C
- Dim
(L x W x H) 57 x 127 x 57 mm
- Weight
1 kg
- Height
57 mm
- Length
57 mm
- Width
127 mm
Manufacturer's standards (with certificate)
- Unit of measurement
Temperature
- Product type
Calibrator
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1761783 Fluke Calibration 9100S-A-256 Calibrator Temperature |  PDF |
Description
World’s smallest, lightest and most portable dry-wells
Features
- Smallest dry-wells in the world, Ranges from –10°C to 375°C, Accuracy to ±0.25°C, stability of ±0.05°C at 0°C, RS-232 interface
Scope of delivery
- Block calibrator 9100 S-A
- Power cord
- User Manual with calibration pressure
- RS-232 cable
- 9930 Interface, the software and the user manual
