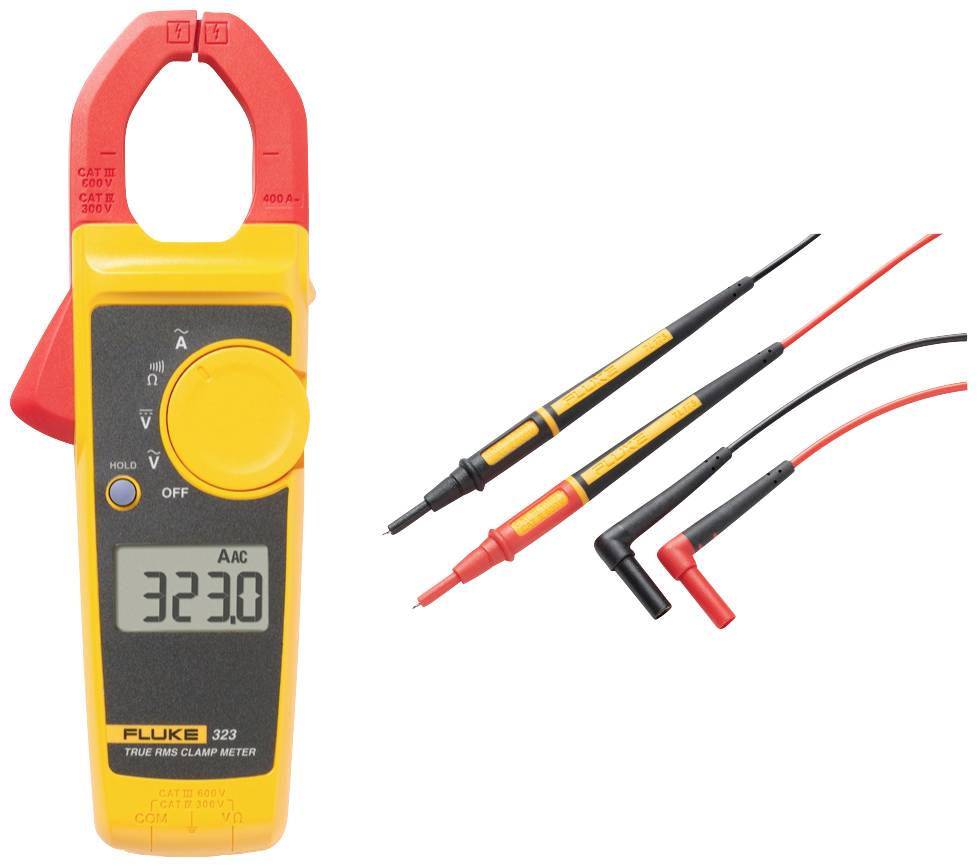

Name: Fluke FLK-323/TL175 Clamp meter, Handheld multimeter Digital CAT III 600 V, CAT IV 300 V Display (counts): 4000
Brand: Fluke
SKU: 3192106
Availability: InStock

Fluke FLK-323/TL175 Clamp meter, Handheld multimeter Digital CAT III 600 V, CAT IV 300 V Display (counts): 4000

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Mon 8.9. - Tue 9.9.2025

Do your needs go beyond this?

€265.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 Set	1	€ 265.00	€ 265.00
		€ 265.00	€ 265.00
incl. VAT plus Shipment

Only 2 piece(s) available

Report legal concerns

TL175 TwistGuard leads set
Cable length: 1,50 m
Material: Silicone
Measurement category CAT III 1000 V CAT IV 600 V
Rated voltage 1000 V
Nominal current 10 A

Voltage reading range DC (min.): 0.1 V

Voltage DC reading range (max.): 600 V

V AC reading range (min.): 0.1 V

V AC reading range (max.): 600 V

A AC reading range (min.): 0.1 A

Amperage reading range AC (max.): 400 A

Reading range - resistance: 0.1 Ω - 4000 Ω

DC resistance: 10 MΩ

AC resistance: 10 MΩ

Basic accuracy: 1 %

Measurement type (details): True RMS

Frequency range: 45 Hz -400 Hz

Interfaces: none

Power supply (details): 2x AAA battery

Height: 207 mm

Width: 75 mm

Weight: 265 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT IV 300 V

Voltage metering: AC/DC

Current reading: AC

Type: FLK-323/TL175

Display: Digital

Display (counts): 4000

Dim: (W x H) 75 mm x 207 mm

Opening range of current clamps: 40 mm

Product type: Clamp meter

User & Safety Instructions
User & Safety Instructions 3192106 Fluke FLK-323/TL175 Clamp meter, Handheld multimeter Digital CAT III 600 V, CAT IV 300 V Display (counts): 4000	PDF	Download

Real effective amps clamp
Real-effective measurements and optimized ergonomics make the 320 series clamp-on ammeters the most important for installation and troubleshooting in industrial and building technology applications. The model Fluke 323 is perfectly suitable for current measurements up to 400 A in cramped switch cabinets.

TL175 TwistGuard leads set
Silicone measurement leads set of the special kind: In order to meet the requirements of EN 61010-031 safety classifications, the over-voltage category can be set between CAT II 1000 V and CAT III 1000 V/CAT IV 600 V because of the rotating measurement tip adjustment. Moreover, damages become visible immediately owing to the second white silicone layer. Design with 2 mm thin measuring tip.

This text is machine translated.

Features

AC current measurement up to 400 A.
AC and DC voltage measurement up to 600 V.
Real effective value of alternating voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 4 kΩ with continuity detection
Slim, ergonomic design
Safety specifications according to CAT IV 300V and CAT III 600 V.
Hold button
Upholstered carry bag
