Name: Fluke FLUKE-710 Calibrator Pressure, Voltage, Amperage
Brand: Fluke
SKU: 1881462
Availability: OutOfStock

Item 1 of 7

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Wed 15.10. - Mon 20.10.2025

€4,155.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 4,155.00	€ 4,155.00
		€ 4,155.00	€ 4,155.00
incl. VAT plus Shipment

Report legal concerns

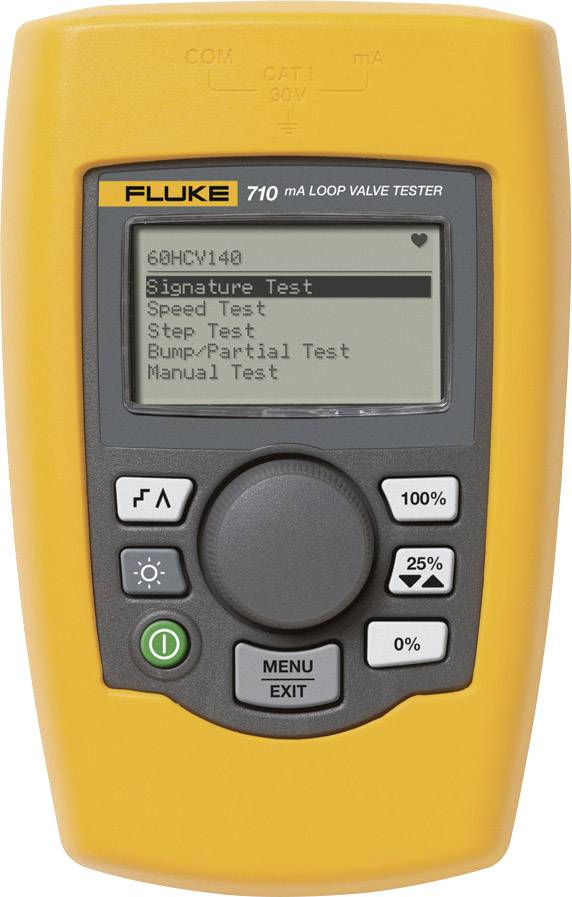

Current loop calibrator and valve tester Fluke 710

Testing of valve signature, speed, and steps, manual testing
Shock test (bump) and Teilhubprufung (partial stroke)
MA give, mA simulate, mA measuring, mA measuring with simultaneous loop power supply, voltage measurement
The valve measurements, which were recorded in the memory logged and can be uploaded to a PC for further analysis

Display: 128 x 64 pixel graphic LCD with background lighting, digit height 8.6 mm
Stability: 20 ppm of the final value/°C from -10°C to 18°C and 28°C to 55°C
Accuracy: 0.01% ± 2 digits in all areas (at 23 °C ± 5 °C)
Resolution: 1 μA in mA-areas and 1 mV in voltage ranges
Areas: mA (0 to 24 mA) and voltage (0 to 30 VDC)
Surge protection: 240 V/AC
Overcurrent protection: 28 mA/DC.

Dim: (L x W x H) 150 x 90 x 30 mm

Weight: 300 g

Height: 30 mm

Length: 150 mm

Width: 90 mm

: Manufacturer's standards (no certificate)

Unit of measurement: Pressure
Voltage
Amperage

Power supply: 6 x AAA battery (included)

Product type: Calibrator

User & Safety Instructions
User & Safety Instructions 1881462 Fluke FLUKE-710 Calibrator Pressure, Voltage, Amperage	PDF	Download

The current loop calibrator and valve tester Fluke 710 is designed so that users can quickly and easily check intelligent hard control valves With the integrated test procedures and an intuitive user interface makes the 710 quick and easy implementation of valve checks, where the results of the valve checks are available at a glance and decisions to maintenance measures as faster than ever before. Based on the results of the quick check the valve status, you can determine whether the valve is in order, borderline or is faulty. You can quickly decide whether additional measures for maintenance are required.

This text is machine translated.

Features

Valve test procedures, a good, borderline or bad rating of a control valve supply
HART communication
High accuracy 0.01% when measuring or given from mA
Compact, robust design.
Intuitive operation with Quick-Set-rotary knob for fast and easy to use
24 V loop power supply in the mA measuring mode (-25% up to 125%)
Resolution of 1 μA in the mA-range and 1 mV in voltage
Built-in switchable 250 Ω resistance for HART communication
Simple connection via two cables for all measurements
Automatic switch-off for protecting the batteries
Level and ramp time in seconds can be set variably
