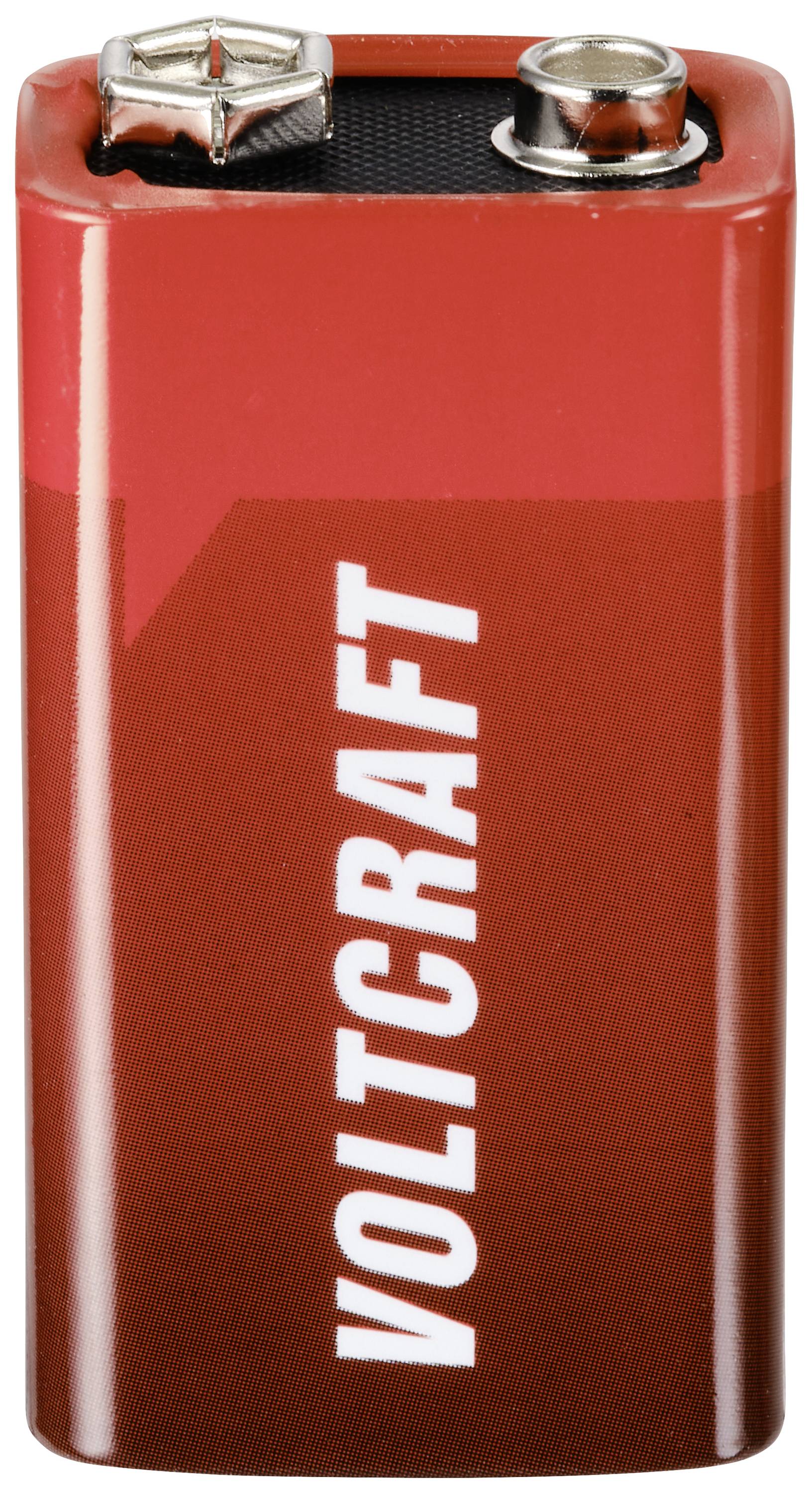

Suitable 9V Battery (Order 2x)
Conrad Electronic
€ 3.69*
EAN:
Part number:
Item no:
Item 1 of 3

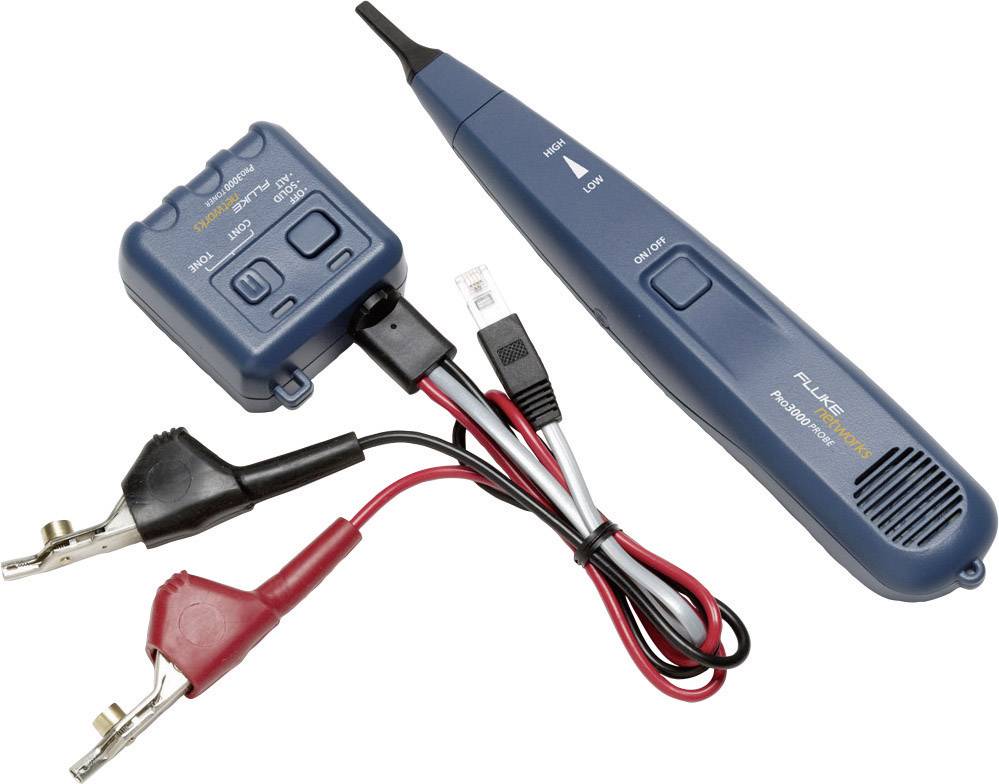

PRO3000 Analog Tone and Probe
- Tone and trace wire on non-active networks
Technical specifications

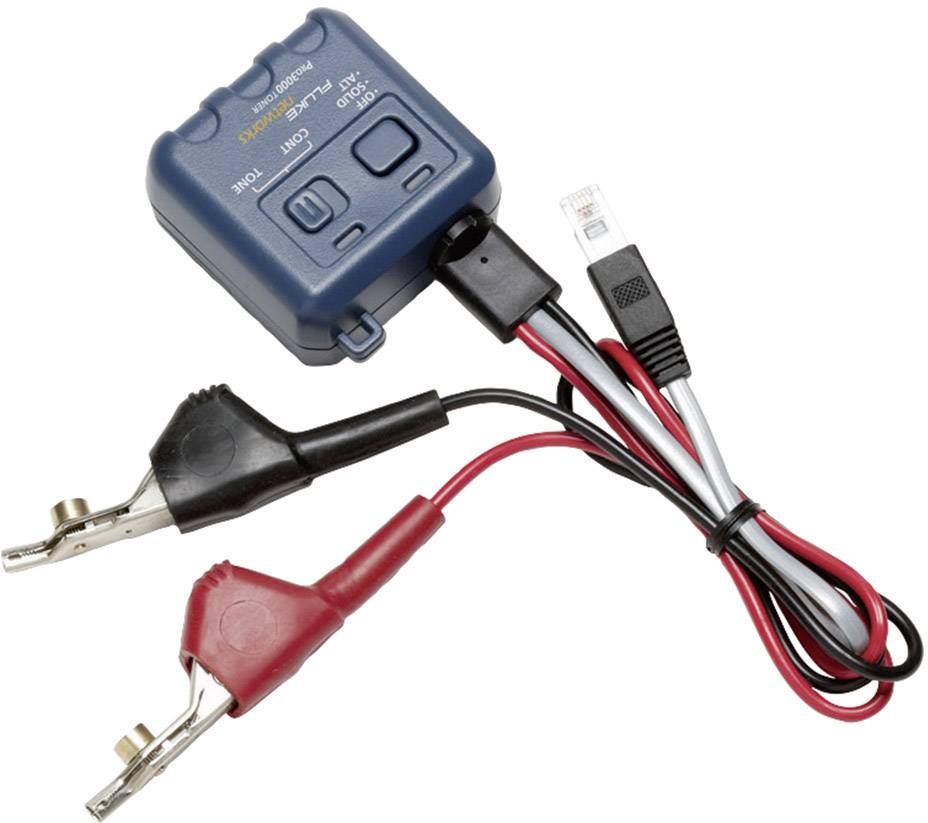

- Pro3000 Analog Tone and Probe:
- User interface: Slide switch selects Continuity or Tone Mode, Push button switch selects SOLID, ALT or OFF
- Tone mode LED, Continuity/Polarity LED
- Solid Frequency: 1000 Hz nominal
- Alternating Frequency: 1000/1500 Hz nominal
- Over Voltage Protection: 60 VDC in Toner/Polarity Mode
- Output Power in Tone Mode: 8 dbm into 600 ohms
- Output Voltage Level in Continuity Mode: 8 Vdc with fresh battery
- Battery: 9 V alkali
- Temperature: Operating: -20° C to 60° C, Storage: -40° C to 70° C
- Case dimensions: 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)

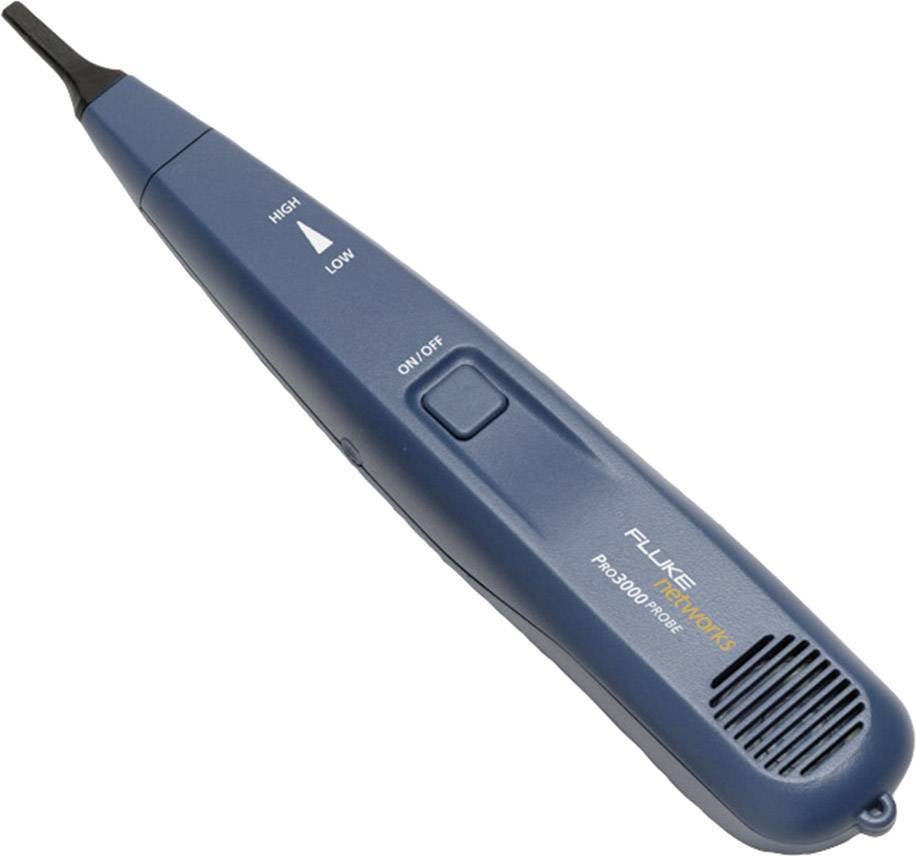

- Pro3000 Analog sensor:
- User interface: ON/OFF push button, Volume dial, Replaceable tip, 3.5 mm earphone jack
- Battery: 9 V alkali
- Temperatur: Temperature: Operating: -20° C to 60° C, Storage: -40° C to 70° C
- Case dimensions:9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)
- Dim
(L x W x H) 8 x 18 x 31 cm
- Weight
0.5 kg
- Height
31 cm
- Length
8 cm
- Width
18 cm
- Type
Pro3000 Kit
Twisted Pair cable tester
- Product type
Toner and probe kit
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1195886 Fluke Networks Pro3000 Kit PRO3000 Analog Tone and Probe, cable verifier, cable test device |  PDF |
Description
The Pro3000 Analog Tone and Probe is your best choice for toning and tracing wire on non-active networks, and specifically for identifying individual pairs with SmartTone® technology.
Angled bed-of-nails clips allow easy access to individual wires, and the RJ-11 connector is ideal for use on telephone jacks. The large loud speaker on the network probe allows you to hear through drywall, wood or other enclosures to find wires quickly and easily.
You can send this loud tone up to 10 miles (16 kilometers) on most cables! Attach the nylon pouch to your belt, and you will be equipped for any wire identification job.
Angled bed-of-nails clips allow easy access to individual wires, and the RJ-11 connector is ideal for use on telephone jacks. The large loud speaker on the network probe allows you to hear through drywall, wood or other enclosures to find wires quickly and easily.
You can send this loud tone up to 10 miles (16 kilometers) on most cables! Attach the nylon pouch to your belt, and you will be equipped for any wire identification job.
Features
- Five distinct tones for exact pair identification
- Sends loud tone up to 10 miles (16 kilometers on most cables)
- Loud speaker on Probe makes the tone easier to hear through drywall, wood, and other enclosures
- Angled bed-of-nails clips allow easy access to individual pairs
- RJ-11 connector is ideal for use on telephone jacks
- Attach nylon pouch (included in kit) to your belt for easy transport.
Scope of delivery
- Pro3000 Analog Tone and Probe.
