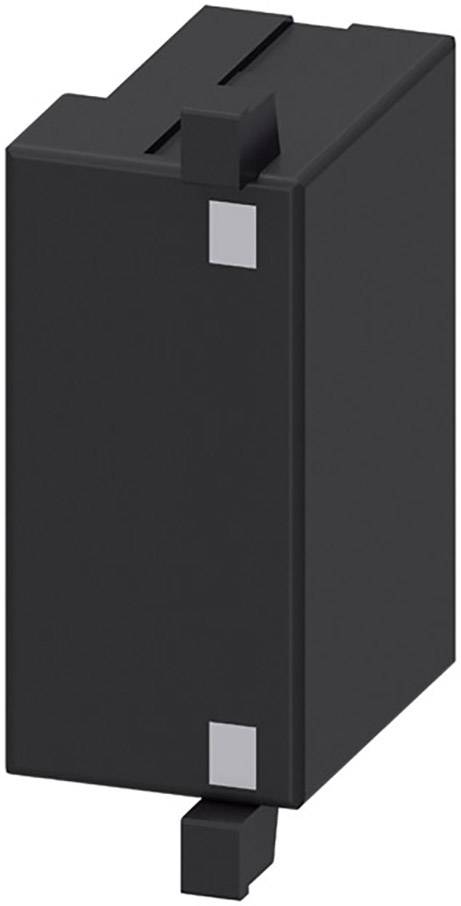

Siemens 3RT2926-1BB00 Surge protection + varistor Black 1 pc(s)
Conrad Electronic
€ 14.99*
EAN:
Part number:
Item no:
Item 1 of 5
Technical specifications
- Voltage type AC/DC
- Size of contactor: S0
- Control supply voltage frequency 60 Hz
- Content
1 pc(s)
- Features
+ varistor
- Factory colour
Black
- Mounting type
Push-fit
- Min. operating voltage
24 V AC
24 V DC
- Max. operating voltage
48 V AC
70 V DC
- Operating voltage
24, 24 - 48, 70 V AC, V DC
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Min. temperature
-25 °C
- Max. temperature
+60 °C

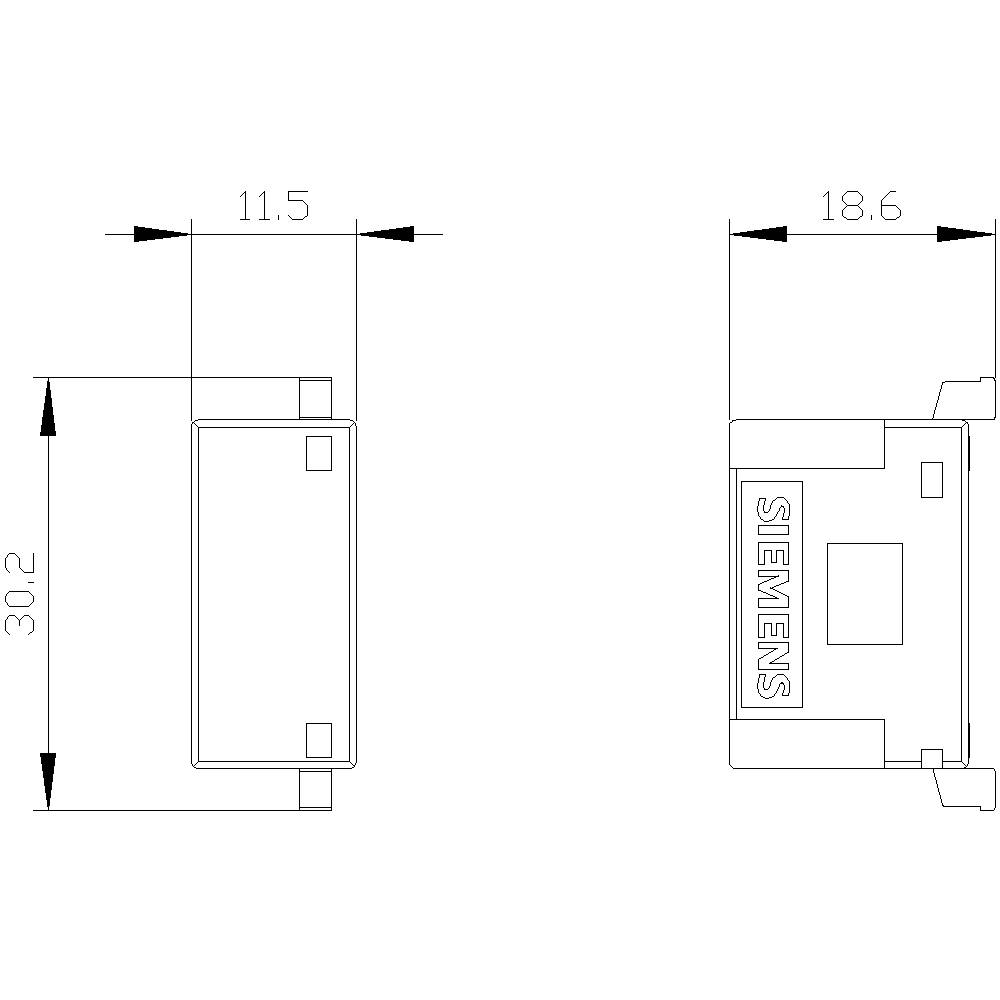

- Width
30 mm
- Height
19 mm
- Length
12 mm
- Dim
(L x W x H) 12 x 30 x 19 mm
- RoHS-compliant
Yes
- Type
3RT2926-1BB00
- Type
3RT 2926-1 BB00

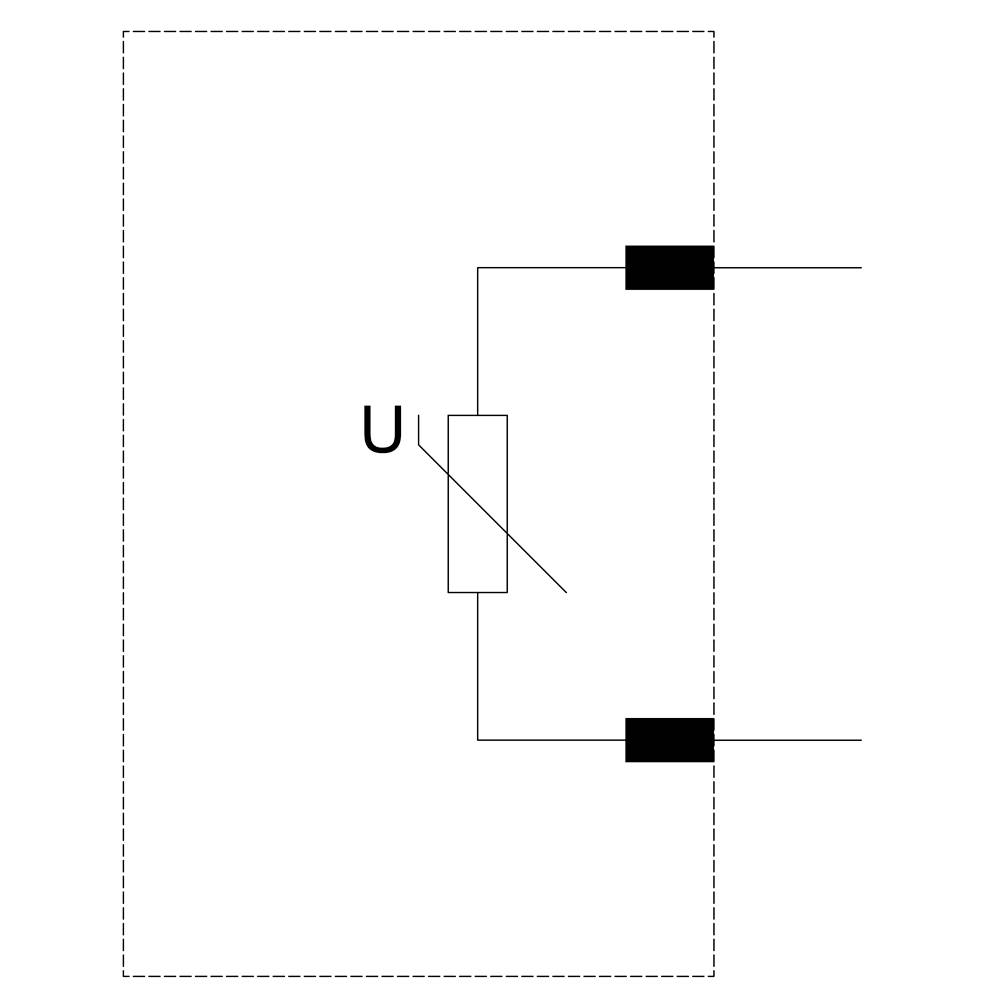

Varistor (voltage-sensitive resistor)
AC/DC
- Product type
Surge protection
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1430978 Siemens 3RT2926-1BB00 Surge protection + varistor Black 1 pc(s) |  PDF |
Description

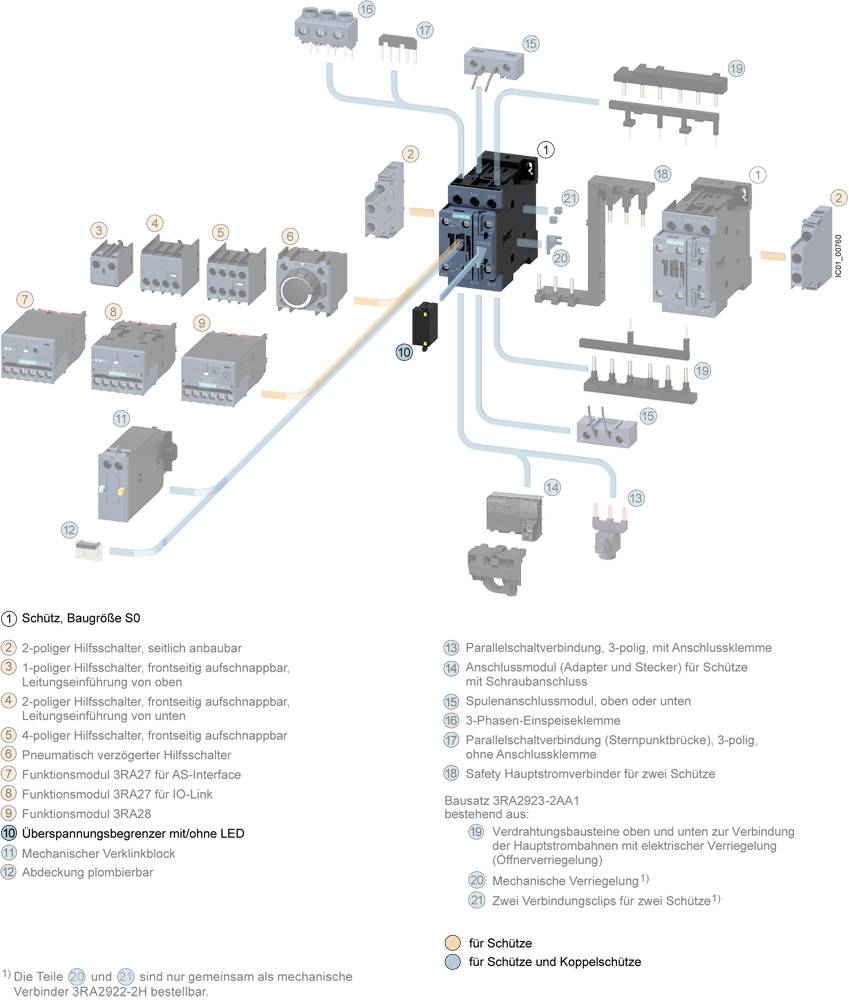

Surge suppressor, varistor, AC 24 ... 48 V, DC 24 ... 70 V, for motor contactors size S0 Thanks to the mounting axis already in the contactor, the surge suppressor can be inserted very easily and without any effect on the external dimensions.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
