Name: Siemens 3RV2011-1FA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 3.5 - 5 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1741895
Availability: InStock

Item 1 of 6

Product type

Circuit breaker

Amperage adjustment range (min.)

3.5 A

Amperage adjustment range (max.)

5 A

Type

3RV2011-1FA10

Type

S00

Online available

Quantity

Piece(s)

€85.99

incl. VAT

plus Shipment

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 91.99	€ 91.99
		€ 91.99	€ 91.99
incl. VAT plus Shipment

Sales and shipping: Conrad Electronic

Terms & Conditions

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

Only 8 piece(s) available

Report legal concerns

Continuous current: 5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-1FA10

Type: S00

Amperage adjustment range (min.): 3.5 A

Amperage adjustment range (max.): 5 A

Adjustment range (amperage): 3.5 - 5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

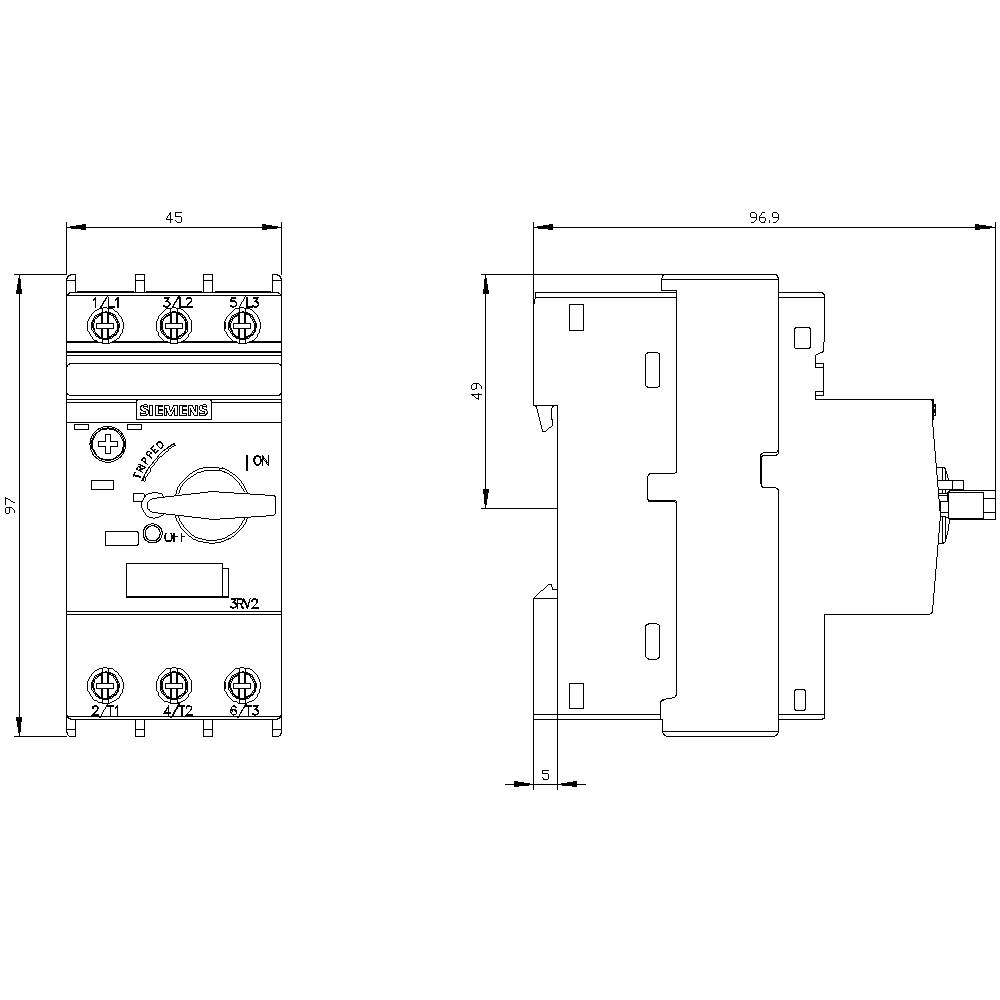

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 1.5 kW

: FALSE

: 5 A

: FALSE

: 3

: 690-690 V

: 3.5-5 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 1.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

User & Safety Instructions
User & Safety Instructions 1741895 Siemens 3RV2011-1FA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 3.5 - 5 A Switching voltage (max.): 690 V AC	PDF	Download
