Siemens 3UG4615-1CR20 Three Phase & Mains Voltage Monitoring Relay, Digital, N/A
Conrad Electronic
€ 234.99*
EAN:
Part number:
Item no:
Item 1 of 2
Technical specifications
- Fastening method: Snap-on fastening
- Type
3UG4615-1CR20
- Functions
Phase sequence
Phase error
Asymmetry
Undervoltage
Overvoltage
- Operating voltage
690 V AC
- Min. operating voltage
160 V AC
- Max. operating voltage
690 V AC
- Operating voltage
160 - 690 V AC
- Amperage adjustment range (min.)
1 A
- Amperage adjustment range (max.)
3 A
- Adjustment range (amperage)
1 - 3 A
- Contact type
1 change-over
1 change-over
- Electrical lifespan
100000
- Durability
1.0E7
- Connection
Screws
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
22.5 mm
- Height
92 mm
- Depth
91 mm
- Dim
(L x W x H) 86 x 22.5 x 92 mm
- Content
1 pc(s)
- Length
86 mm
- Type
Monitoring relay for mains and three-phase voltages
- Type
3UG4615-1CR20
- Operating voltage
160 - 690 V AC
22.5
92 mm
91 mm
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
Screw connection
20 s
0.1 s
AC
0
0
2
- Product type
Monitoring relay
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 502500 Siemens 3UG4615-1CR20 Three Phase & Mains Voltage Monitoring Relay, Digital, N/A |  PDF |
Description

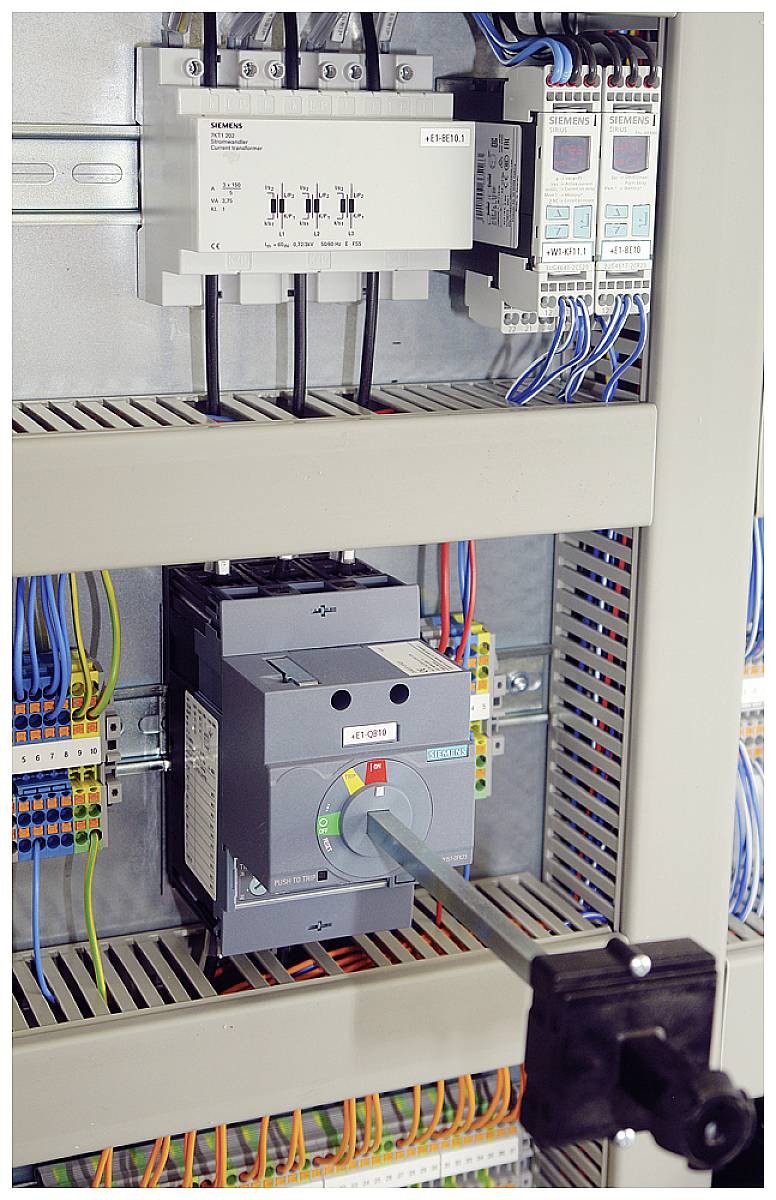

The SIRIUS monitoring relay 3UG4 provide optimum protection for machinery and equipment, permanently installed to protect against over-or undervoltage, or for the complete network monitoring with portable equipment. Also, monitoring of the load of motors and the functionality of electrical loads is done by monitoring relay 3UG4 for current, cos phi and active current monitoring. The monitoring relay 3UG4 also control non-electrical quantities such as liquid levels or even the speed of motors
Special features: Due to the Wide span used by all networks in the world, permanent display of value and type of error in digital versions, all versions with removable terminals, small width.
Special features: Due to the Wide span used by all networks in the world, permanent display of value and type of error in digital versions, all versions with removable terminals, small width.
