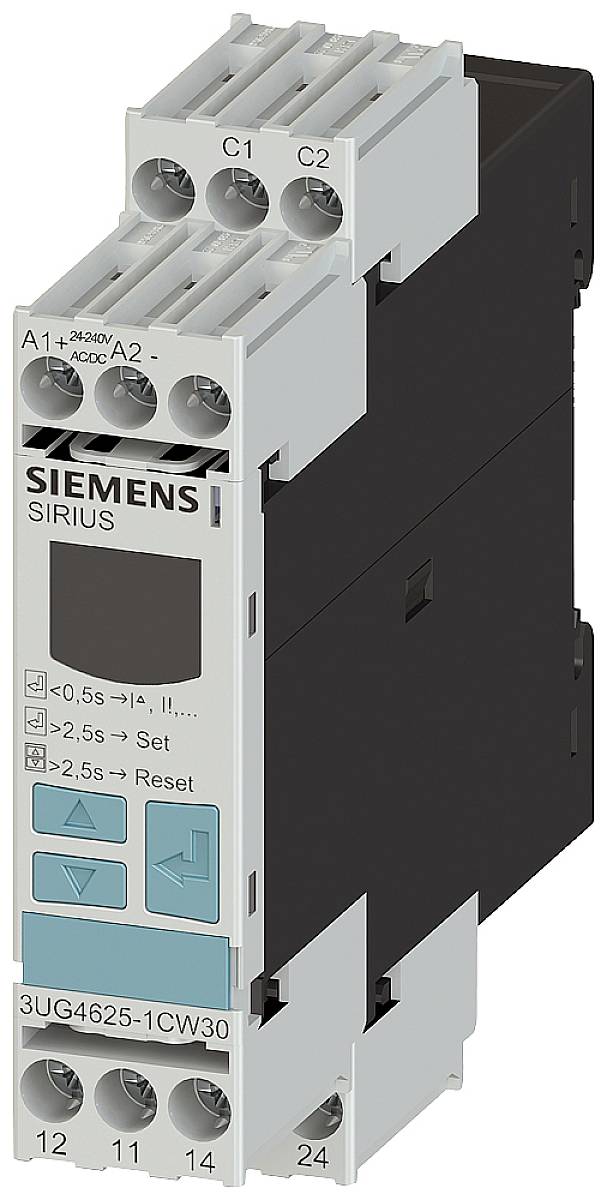

Name: Siemens 3UG4625-1CW30 Current monitoring relay
Brand: Siemens
SKU: 1748656
Availability: InStock

Item 1 of 5

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Wed 10.9. - Thu 11.9.2025

€265.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 244.99	€ 244.99
		€ 244.99	€ 244.99
incl. VAT plus Shipment

Report legal concerns

Mounting type: screw and snap-on mounting rail 35 mm
Design of the Electrical Connection: screw terminals.

Type: 3UG4625-1CW30

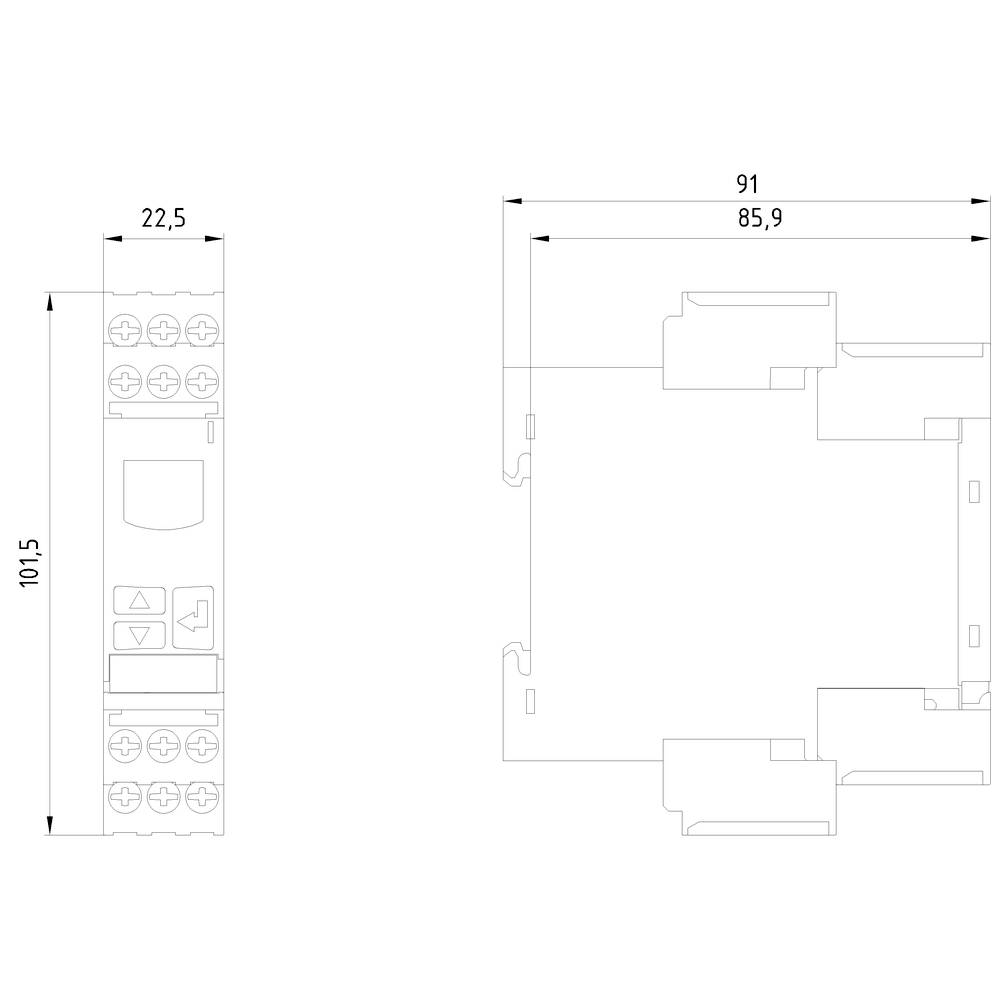

Dim: (L x W x H) 91 x 22.5 x 102 mm

Height: 102 mm

Length: 91 mm

Width: 22.5 mm

Operating voltage: 240 V

Weight: 166 g

: 22.5

: 102 mm

: 91 mm

: TRUE

: TRUE

: TRUE

: Screw connection

: 20 s

: 0 s

: AC/DC

: 0

: 0

: 2

Product type: Current monitoring relay

User & Safety Instructions
User & Safety Instructions 1748656 Siemens 3UG4625-1CW30 Current monitoring relay	PDF	Download

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection ETU350, LSI, In=100A overload protection ir=40A ...100A short circuit protection Isd=1,5... 10 x Ir, iI=12 x In busbar connection 1 Auxiliary switch HQ 1 trip alarm switch HQ
