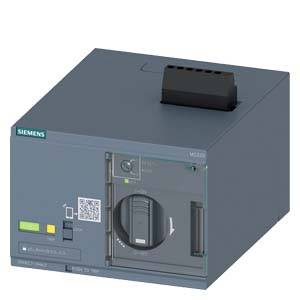

Siemens 3VA9257-0HA20 Motor 1 pc(s) Switching voltage (max.): 250 V DC (W x H x D) 104.6 x 75 x 132 mm
Conrad Electronic
€ 585.00*
EAN:
Part number:
Item no:
Item 1 of 2
Product type
Circuit breaker
Amperage adjustment range (min.)
175 A
Amperage adjustment range (max.)
250 A
Type
3VA1225-5EF32-0AA0
Adjustment range (amperage)
175 - 250 A
Online available
Quantity
€935.00
incl. VAT
plus Shipment
| Content | Quantity | Piece price | Total |
|---|---|---|---|
| 1 pc(s) | 1 | € 935.00 | € 935.00 |
| € 935.00 | € 935.00 | ||
incl. VAT plus Shipment | |||
Technical specifications
- Design: System Protection
- Mechanical life: 15000
- Electrical life: 8000
- Isolation voltage: 800 V
- Mains frequency: 50/60 Hz.
- Power loss: 19 W
- Weight: 1,609 kg
- Product type
Circuit breaker
- Type
3VA1225-5EF32-0AA0
- Amperage adjustment range (min.)
175 A
- Amperage adjustment range (max.)
250 A
- Adjustment range (amperage)
175 - 250 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
M
- OCR type
TM240
- Connection
Screws
IP40

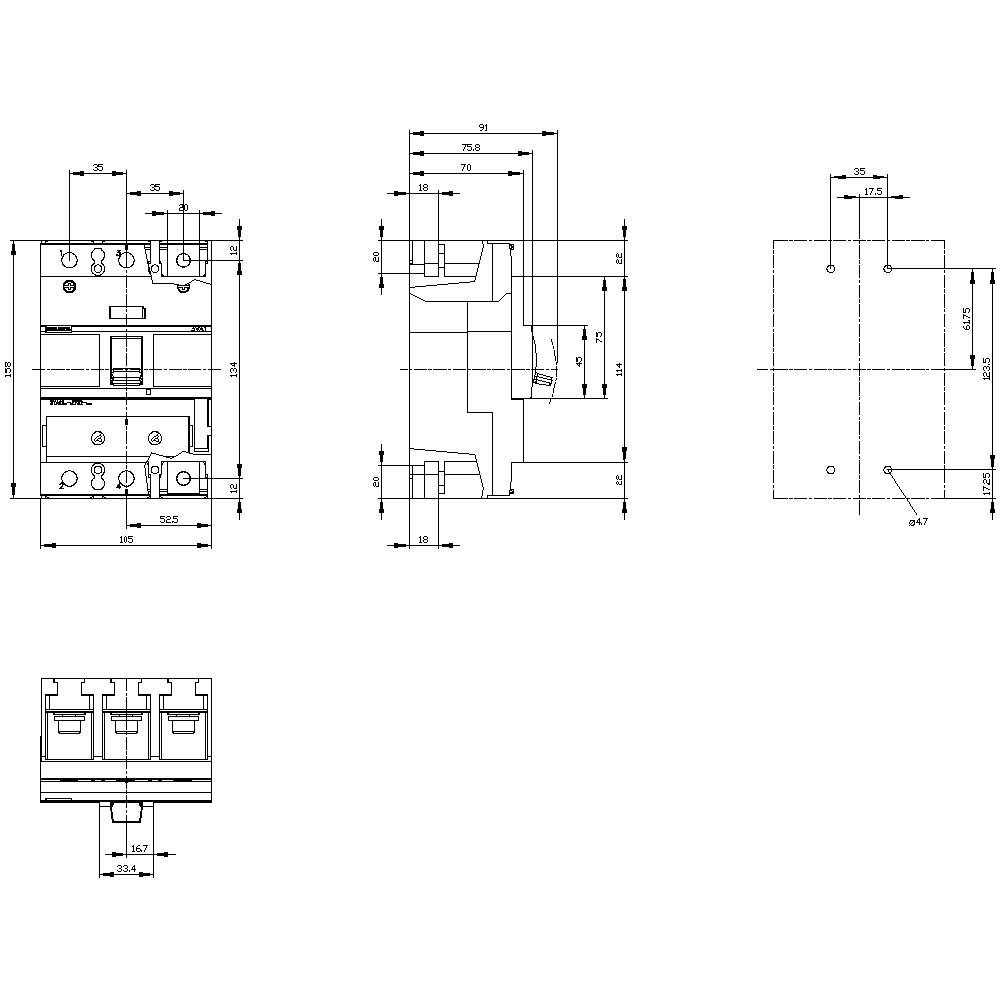

- Depth
70 mm
- Width
105 mm
- Height
158 mm
- Dim
(W x H x D) 105 x 158 x 70 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
250 A
3
175-250 A
0
690-690 V
57 W
IP40
Front side
FALSE
Screw connection
Rocker lever
55 kA
1250-2500 A
TRUE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|

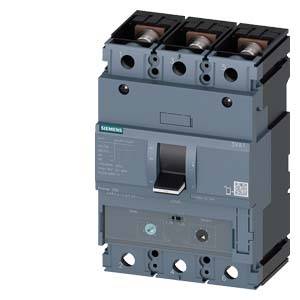

User & Safety Instructions 1722920 Siemens 3VA1225-5EF32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 250 A Switching voltage (max.): 69 |  PDF |
Description
circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415 V 3-pole,motor starter protection tm120m, aM, In=100A without overload protection short circuit protection iI=5...15 x In cable connection Undervoltage release (UVR) 208-230 V AC 50/60 Hz 2 auxiliary switch HQ 1 trip alarm switch HQ
Customer reviews
Average rating
0 of 5 stars
So far there are no reviews of this product.
What kind of Circuit Breakers are you looking for?
Accessories
(*All information is incl. VAT.)The necessary accessories are required to use the article as described
Siemens 3VA9487-0GB10 Adapter 1 pc(s)
Conrad Electronic
€ 18.99*

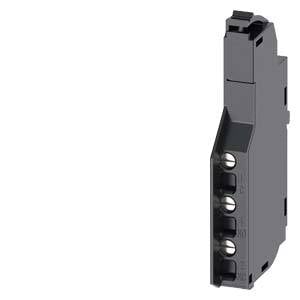

Siemens 3VA9988-0AB35 Circuit breaker accessories 1 pc(s) (W x H x D) 7 x 56 x 30 mm
Conrad Electronic
€ 51.99*

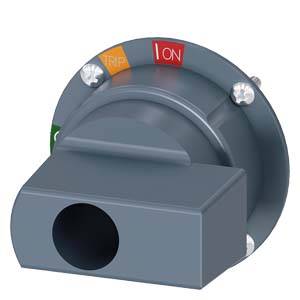

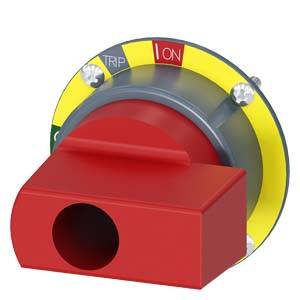

Siemens 3VA9287-0GC01 Circuit breaker accessories 1 pc(s) (W x H x D) 45 x 45 x 36 mm
Conrad Electronic
€ 61.99*

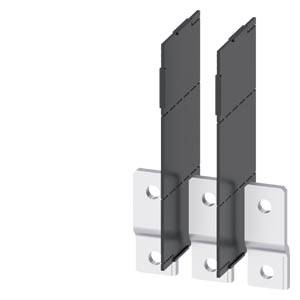

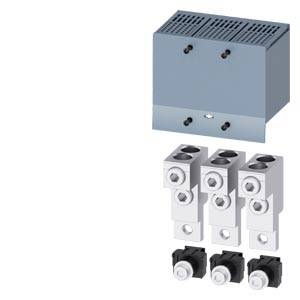

Siemens 3VA9253-0QB00 Installation accessories 1 pc(s) (W x D) 95 mm x 62.7 mm
Conrad Electronic
€ 34.99*

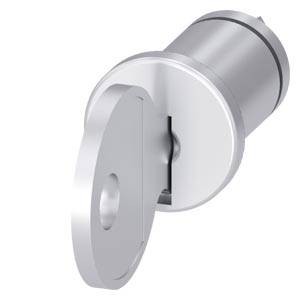

Siemens 3VA9980-0VL40 Circuit breaker accessories 1 pc(s) (W x H x D) 16 x 20 x 49 mm
Conrad Electronic
€ 24.99*

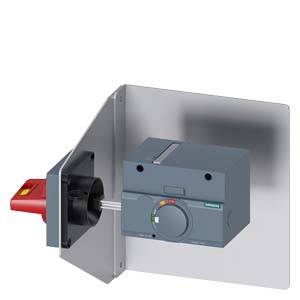

Siemens 3VA9257-0PK57 Circuit breaker accessories 1 pc(s)
