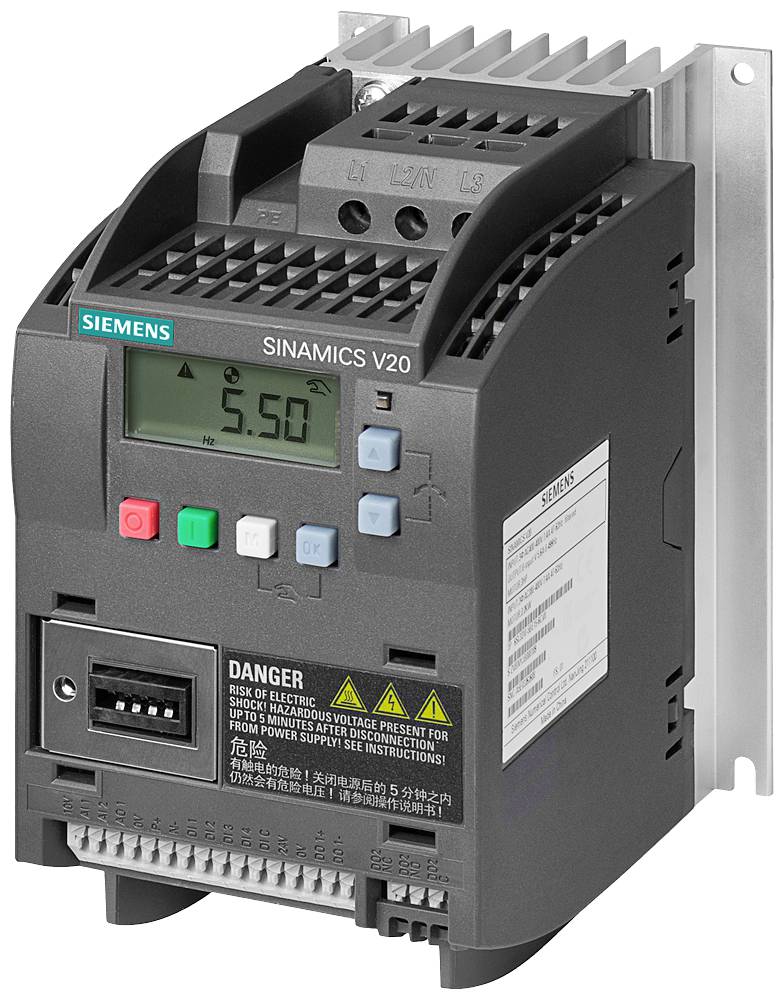

Siemens Frequency inverter 6SL3210-5BE22-2UV0 2.2 kW 3-phase 400 V

SINAMICS V20 380-480 V 3 AC - 15/+ 10 % 47-6 rated power 2.2 kW with 150 % overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DO, 2 AI, 1 AA fieldbus: USS/MODBUS RTU with built-in BOP protection class IP20/UL open Size: Construction gr. A 90x166x146 (BxH frequency converter SINAMICS V20. Simple. Robust. Efficient. For industrial applications and commercial applications in the voltage range 3AC 380 V to 480 V. SINAMICS V20 is characterized by short commissioning times, simple operation, robustness and cost efficiency. The converter can be operated directly from the packaging without additional modules. To increase energy efficiency, the converter is equipped with an energy-optimized control procedure with automatic flow reduction. It also represents the current energy consumption and has further integrated energy saving functions. The keep-running mode enables a stable operation even under difficult and fluctuating network conditions. The converter is available in nine sizes in a power range from 0.12 kW to 30 kW for operation on single and three-phase systems (1AC 200 V to 240 V, 3AC 380 V to 480 V). The SINAMICS V20 can be configured with various options, such as the local operator unit Basic Operator Panel (BOP) or SINAMICS V20 smart access module mobile operator unit, BOP interface, standard network cable, line filter, braking resistors, Shielding, etc. can be individually adapted to the requirements of the application. It also enables simple system configuration with predefined macros in the converter and prefabricated function blocks from the Totally Integrated Automation Portal (TIA Portal) for fast connection to a SIMATIC-S7-1200 controller, for example. The SINAMICS V20 basic converter is a technical and economical alternative for the Micromaster 420 frequency converter. SINAMICS - just my drive.

This text is machine translated.
