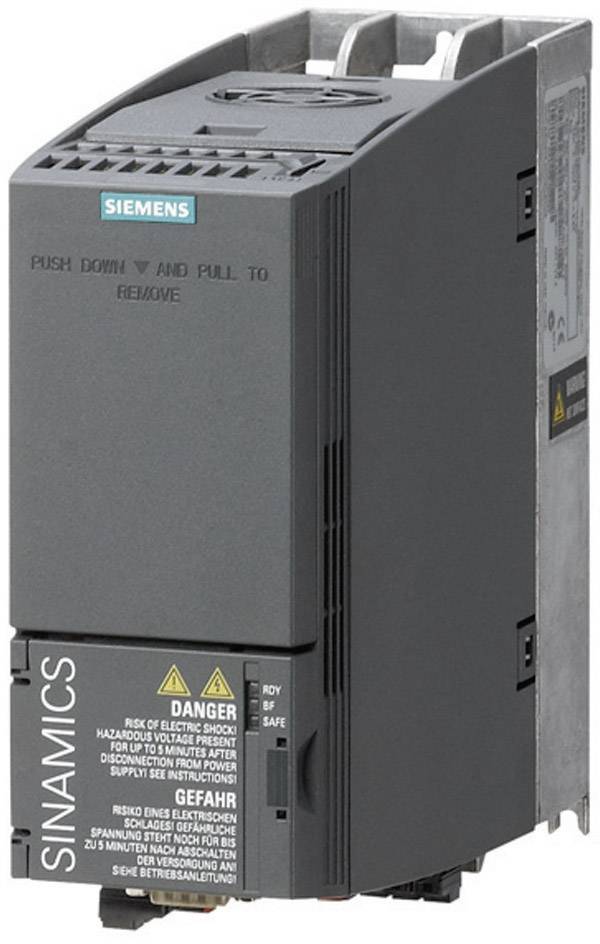

Name: Siemens Frequency inverter SINAMICS G120C 1.5 kW 3-phase 400 V
Brand: Siemens
SKU: 196927
Availability: InStock

Item 1 of 2

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Tue 9.9. - Wed 10.9.2025

€745.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 745.00	€ 745.00
		€ 745.00	€ 745.00
incl. VAT plus Shipment

Only 3 piece(s) available

Report legal concerns

SIEMENS compact inverter SINAMICS G120C

With communication interfaces USS and Modbus RTU
High sturdiness by varnished modules
Quick and easy software parameters

Operating temperature: -10°C to + +40 °C.
Digital inputs: 6 potential-free
Digital outputs: 1 relay
Analogue inputs: 1
Analogue Outputs: 1

Input voltage: 400 V

Product type: Frequency inverter

Output rating (max.): 1.5 kW

Max. frequency: 550 Hz

Min. frequency: 0 Hz

Network: 3-phase

Frequency range: 0 Hz - 550 Hz

Nominal current: 4.1 A

Height: 173 mm

Width: 73 mm

: IP20

Type: SINAMICS G120C

Filter class: C3

Dim: (L x W x H) 203 x 73 x 173 mm

Manufacturer part #: 6SL32101KE143AB2

Filter class/protection level: Line filter class A or C2/C3 according to EN 61800 3

Length: 203 mm

User & Safety Instructions
User & Safety Instructions 196927 Siemens Frequency inverter SINAMICS G120C 1.5 kW 3-phase 400 V	PDF	Download

The compact inverter SINAMICS G120C is a balanced mix of features designed for wide application. The frequency converter SINAMICS G120C is a compact, robust and easy to use converter and can be operated with either a simple or a comfortable control unit.

Areas of application in engineering:
· Conveyers
· Blenders
· Extruder
· Pumps
· Fan
· Compressors
· Simple handling machines
· And much more

This text is machine translated.

Features

Snap-on optional keypad BOP or iop
Integrated communication interfaces USS and Modbus RTU
Integrated interfaces RS485/USS and USB
PTC/KTY interface
Rules U/f characteristic Linear/Square / can be parameterized, U/f with flux current control (FCC), U/f ECO Linear/Square, vector control, without encoder
Dc braking, compound braking and resistance braking with integrated chopper
Protection against under or overvoltage, overload, short to ground, short circuit, tilt protection, motor lock protection, motor and converter overheating.
