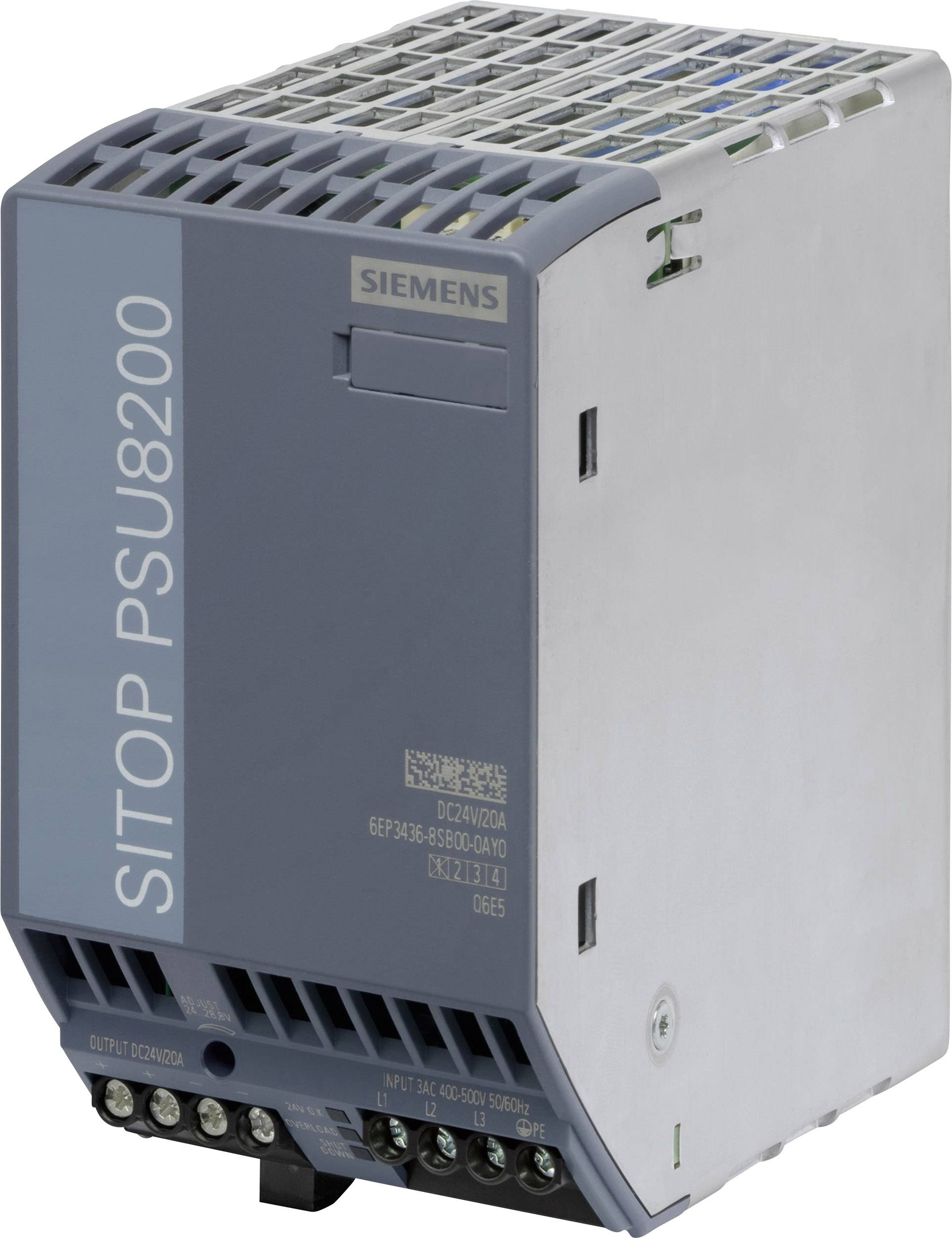

Siemens SITOP PSU8200 24 V/20 A Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

The 3-phase base unit with 20 A, has been innovated and is only 70 mm wide for the most compact tests in this performance . An indication contact for evaluating the operational status is now built and the input voltage area was expanded to 320 - 575 Vac. With up to 93 effectiveness of the regulated power supply SITOP PSU300M 24V/20A is extremely efficient and the development of heat in the switchboard and is correspondingly low. The Extra Power with 1.5-fold nominal current for 5 seconds allows easy switching of loads with high inrush current.
The advantages at a glance:
· Regulated power supply for the highest demands
· Power Boost with 3-fold nominal current
· 3 LED-displays to indicate the charging status
· Selectable short-circuit behaviour: automatic restart or protective cut-off
· · Parallel connection possible for increased power
· Place saving with a width of only 70 mm, no lateral installation gaps necessary
· Wide-range input 3 AC 320 to 575 V for different mains voltages and for balancing voltage fluctuations
· 1.5-fold extra power for switching-on consumers with high switch-on current
· Up to 93% degree of efficiency
· Integrated signal contact "DC 24 V o.k."
