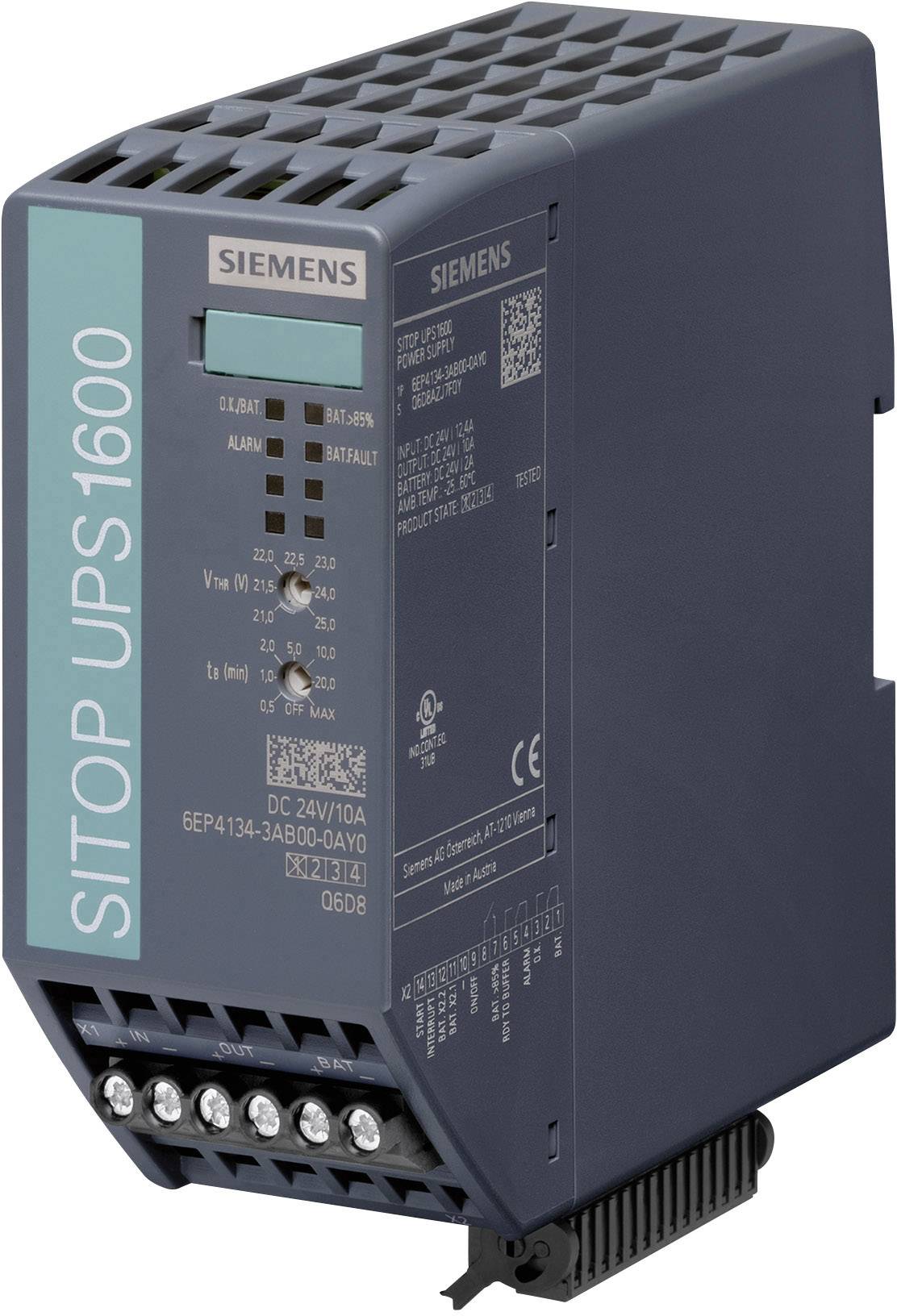

Siemens SITOP UPS1600 Rail-mount UPS (DIN)
Conrad Electronic
€ 239.99*
EAN:
Part number:
Item no:
Technical specifications
- Dim
(W x H) 50 mm x 125 mm
- Height
125 mm
- Width
50 mm
- Output
Screw terminal
- Type
SITOP UPS1600
- Input voltage (max.)
29 V DC
- Min. input voltage
22 V DC
- Output voltage (max.)
27 V DC
- Output voltage (min.)
22 V DC
- Connections
Screw connector
- Output voltage
24 V DC
- Output current (details)
10 A
- Max. current
10 A
- Input voltage
22 V/DC - 29 V DC
- Weight
380 g
- Product type
Rail-mount UPS (DIN)
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 1275365 Siemens SITOP UPS1600 Rail-mount UPS (DIN) |  PDF |
Description
By the combination of a DC-UPS module SITOP UPS 1600 with at least one battery module and a SITOP power supply UPS 1100 longer power outages are bridged completely without interruption. The intelligent battery management automatically detects the UPS 1100 - energy storage, provides for optimal temperature-driven charging and ongoing monitoring. The compact DC UPS modules are overload capability, for example, the inrush current of industrial PCs. For The Island Operation enable the starting from the battery.
The DC-UPS open communicates via USB or Ethernet/PROFINET. Using the two Ethernet/PROFINET ports, which you can easily to the PC or in the PLC world can be integrated into the system. Full integration into TIA offers comfortable engineering in the TIA Portal and is supported by pre-fabricated function blocks for S7 user programs and WinCC faceplates for the fast visualization.
With the SITOP UPS manager is also a simple monitoring and configuration in PC-systems, such as the shut down of several PCs after the master-slave principle. The integrated web server also allows remote monitoring of the DC-UPS.
This text is machine translated.
The DC-UPS open communicates via USB or Ethernet/PROFINET. Using the two Ethernet/PROFINET ports, which you can easily to the PC or in the PLC world can be integrated into the system. Full integration into TIA offers comfortable engineering in the TIA Portal and is supported by pre-fabricated function blocks for S7 user programs and WinCC faceplates for the fast visualization.
With the SITOP UPS manager is also a simple monitoring and configuration in PC-systems, such as the shut down of several PCs after the master-slave principle. The integrated web server also allows remote monitoring of the DC-UPS.
This text is machine translated.
Features
- Without interface
- Compact DC-UPS module SITOP UPS 1600 with digital inputs/outputs, optionally with USB or Ethernet/PROFINET interface with 2 Ports
- Battery module SITOP UPS 1100 with integrated electronics
- Intelligent battery management
- Diagnostic data and alarm messages via USB and Ethernet/Profinet
- High dynamic overload capability:
- High charging currents
- Start from battery modules when there is no mains voltage
- Remote monitoring through the integrated web-server
Scope of delivery
- DC-UPS module
