Siemens SITOP UPS501S 5 kW Expansion Compatible with Siemens
Conrad Electronic
€ 385.00*
EAN:
Part number:
Item no:

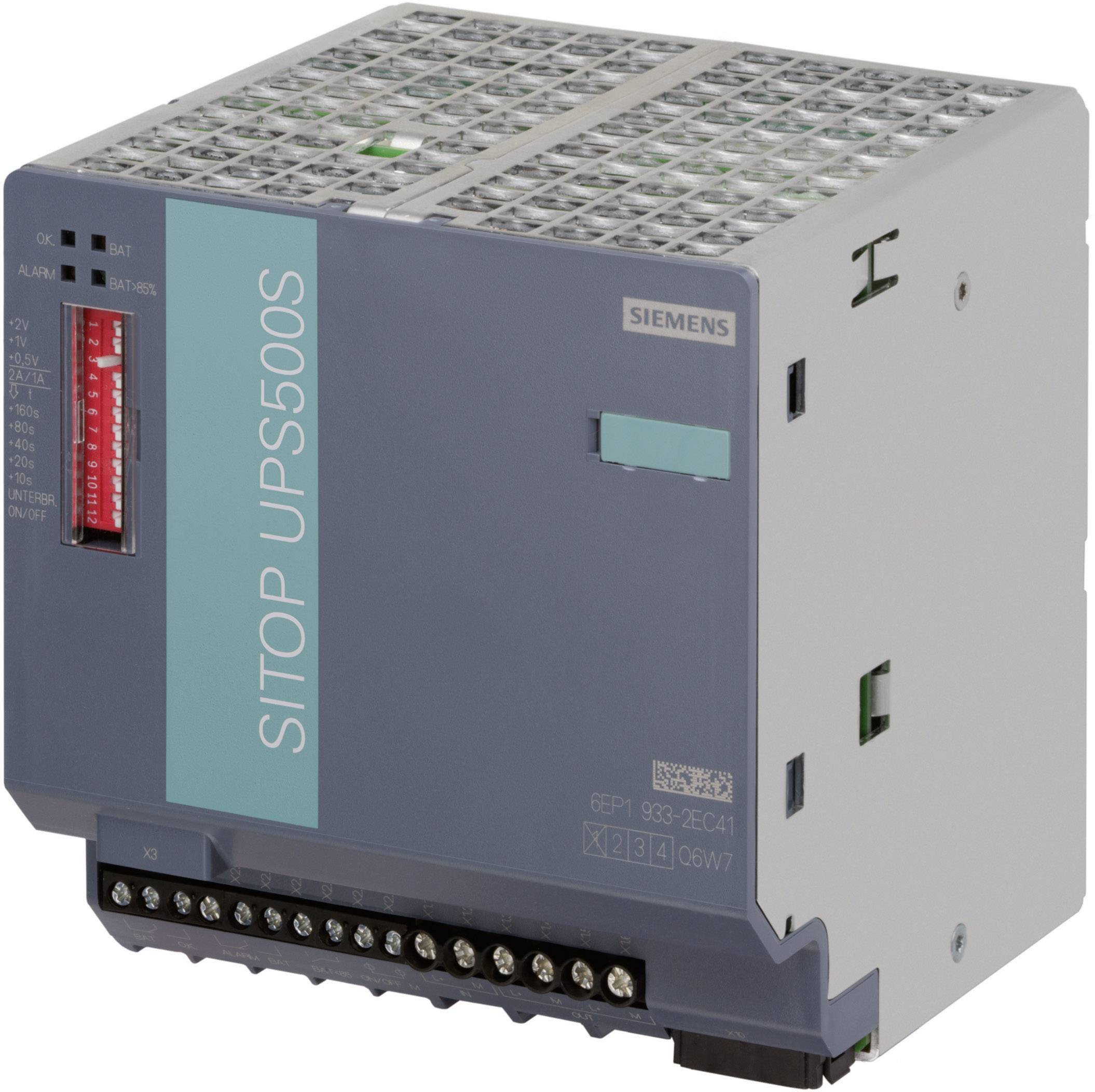

Uninterruptible Power Supply SITOP UPS500S 5 kW
- Energy storage of 5 kW
- Durable Capacitors spare battery change problems
- No ventilation of the mounting location (VDE 0510 Part 2 / EN 50272-2)
Technical specifications
- Dim
(W x H x D) 120 x 125 x 125 mm
- Depth
125 mm
- Height
125 mm
- Width
120 mm
- Bridging time, max load
236 s
- Interfaces
1x USB
IP20
- Type
SITOP UPS500S 5 kW
- Input voltage (max.)
29 V DC
- Min. input voltage
22 V DC
- Output voltage (max.)
24 V DC
- Connections
Screw terminals
- Output voltage
24 V DC
- Output current (details)
15 A
- Max. current
15 A
- Input current
15.2 A (+2.3 A im Ladebetrieb)
- Input voltage
22.5 - 29 V DC
- Weight
1000 g
120
125 mm
125 mm
1 kg/m
DC
- Product type
Industrial UPS
Documents & Downloads
User & Safety Instructions | ||
|---|---|---|
User & Safety Instructions 513066 Siemens SITOP UPS500S 5 kW Industrial UPS |  PDF |
Description
Uninterruptible Power Supplies store the electrical energy usually in lead-acid batteries. Temperatures, such as for example those prevailing in the control panel, can shorten the life of the battery. Not so with the innovative DC-UPS from SITOP. Capacitors spare you with the long lasting battery change, resulting in the maintenance free -UPS already recouped within a short time. And because no hydrogen is emitted, the cabinet does not need to be ventilated. Short charging times also ensure quick availability after power failure.
Benefits at a Glance:
·Modular cascade for DIN rail mounting: base unit SITOP UPS500S 24 V / 15 A with built-in 2.5 or 5 KWs energy, combined with up to 3 expansion modules UPS 501S (5 kWs)
Durable Capacitors spare battery exchange: In 8 years, the UPS500 has at 50 ° C ambient temperature still 80% of rated capacity ·
Absolutely maintenance free
· No need to ventilate the mounting location (VDE 0510 Part 2 / EN 50272-2)
Quick restoration of buffer readiness
·Safe Shutdown and correct restart by SIMATIC PCs
Benefits at a Glance:
·Modular cascade for DIN rail mounting: base unit SITOP UPS500S 24 V / 15 A with built-in 2.5 or 5 KWs energy, combined with up to 3 expansion modules UPS 501S (5 kWs)
Durable Capacitors spare battery exchange: In 8 years, the UPS500 has at 50 ° C ambient temperature still 80% of rated capacity ·
Absolutely maintenance free
· No need to ventilate the mounting location (VDE 0510 Part 2 / EN 50272-2)
Quick restoration of buffer readiness
·Safe Shutdown and correct restart by SIMATIC PCs
