Name: Toner and probe kit 4586068 Fluke Networks MT-8200-60-KIT Networks
Brand: Fluke Networks
SKU: 1304171
Availability: InStock

Item 1 of 7

Sale through:

Conrad Electronic Terms & Conditions

Online available

Ready for dispatch: Thu 4.9. - Fri 5.9.2025

Do your needs go beyond this?

€395.00

incl. VAT

plus Shipment

Piece(s)

Content	Quantity	Piece price	Total
1 pc(s)	1	€ 395.00	€ 395.00
		€ 395.00	€ 395.00
incl. VAT plus Shipment

Report legal concerns

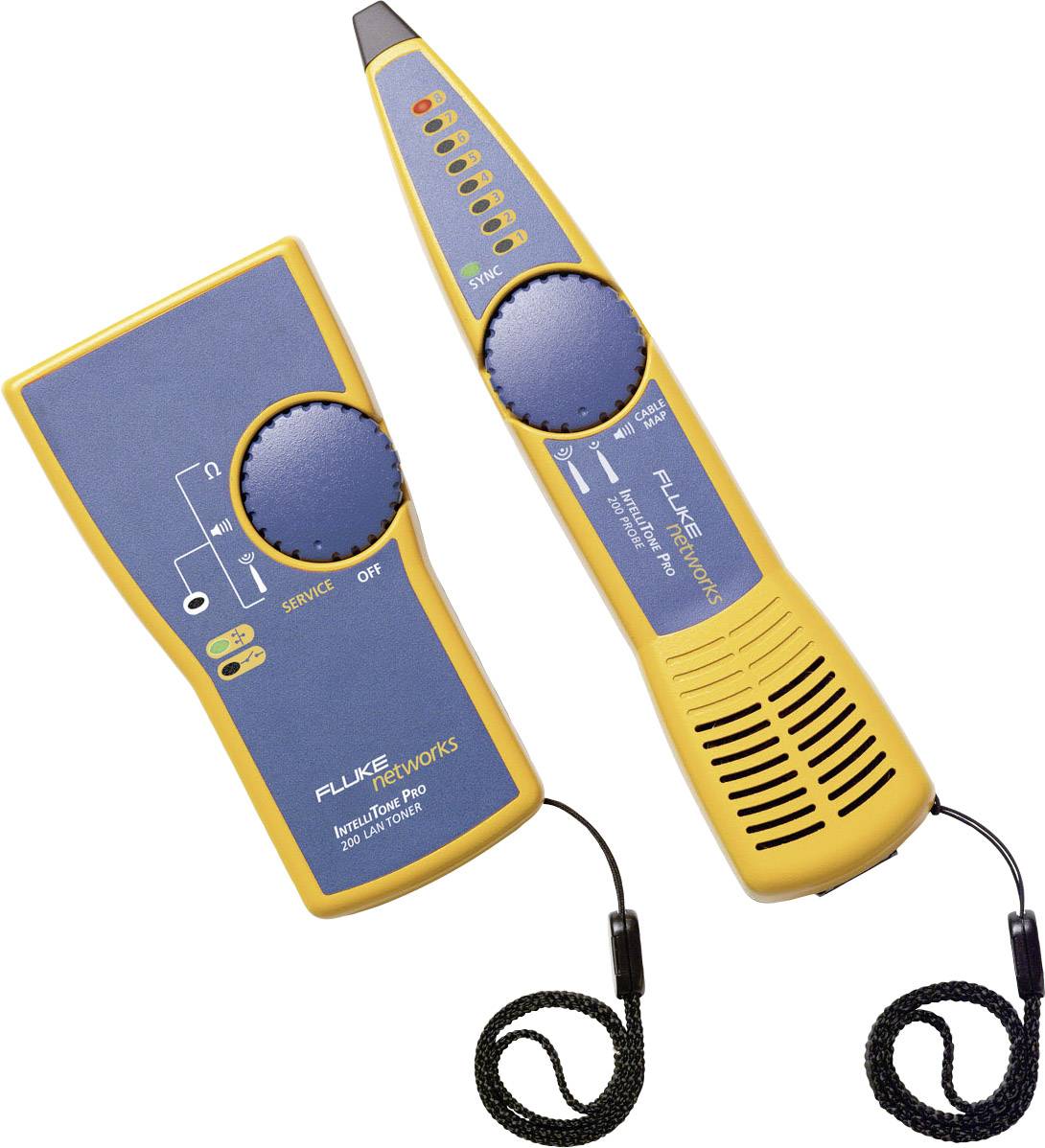

IntelliTone Pro 200 toner and Probe Kit

General Specifications: Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to +140°F (-20°C to °C)
Relative air humidity (RH% without condensation) 95% (50°F to 95°F; 10 °C to 35 °C) 75% (95°F to 104°F; 35°C to 40°C) not controlled< 50°F (<10°C)
Vibration automatically, 2G, 5Hz to 500 Hz
Shock 1 m drop test with and without module
Safety EN 61010-1 1. Output + after carrying 1, 2
Altitude 3000 m
Emc: EN 61326-1
Battery type and battery life 9 V, alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications copper cable including; 75 or 50-Ohm coaxial cables; two-wire control, security, cable in general. 10Base-T or 10/100Base-T datacom networks. POTS telecommunications services and UTP cable. STP (Shielded Twisted Pair) supports in cablemap-funktion of the IntelliTone 200.
TONER SPECIFICATIONS
Dimensions 5.54" x 2.94" x 1.25 inch (14.1 cm x 7.5 cm x 3.2 cm)
Display LED
Control Thumbwheel switch
Haupt-Mod toner interface 8-connection for sound generation on all 4 pairs of UTP/STP cable. F-connection for coaxial cable banana socket plug (2) - Two-wire wiring
Frequency IntelliTone™ Signal encoded digital signal
Analogue Smart tone signal
500 - 1200 Hz, 4 melodies
Speaker battery voltage 6 V in 600 W
Output power 5 V ss
Voltage protection 100V
Automatic switch-off switches off automatically after 2 hours of inactivity
Receiver SPECIFICATIONS
Dimensions 8,73 inch x 1.88" x 1.26 inch (22.2 cm x 4.8 cm x 3.2 cm)
(8) LED indicator, sync-LED indicator
Audio IntelliTone microprocessor-controlled audio files
Analogue unrecognized toner signal
Control Thumbwheel switch, volume control
Tone Detection detects IntelliTone™ digital signal and 1-khz signal from analogue signal transmitters
Recognizes the analogue signal (500-1200 Hz) and Smart tones other analogue signal generator

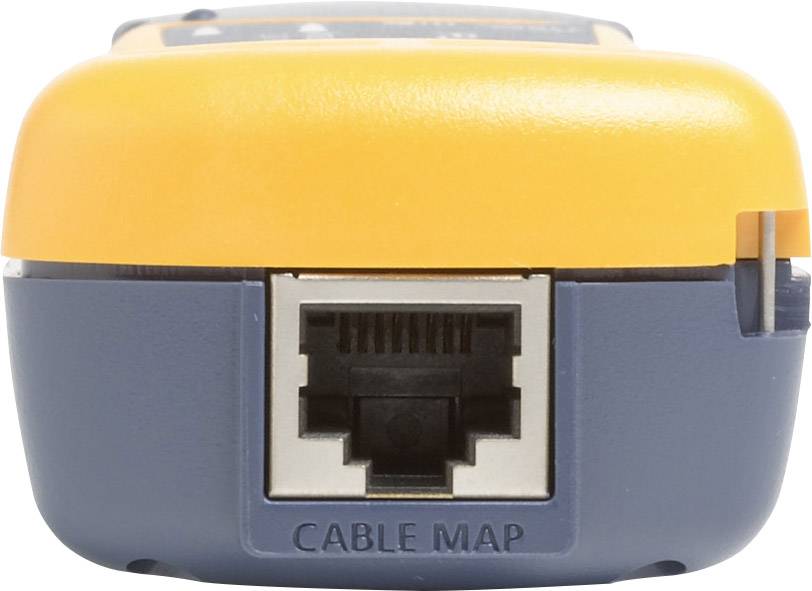

Haupt-Mod toner interface 8-connection for cablemap on all 4 pairs of UTP/STP-cable.
Automatic switch-off switches off automatically after 1 hour of inactivity

Optical display: Yes

: Manufacturer's standards (no certificate)

Display: LED

Function: Break
Continuity

Test sockets: RJ45 socket

Range: Networks

Type: MT-8200-60-KIT

Product type: Toner and probe kit

User & Safety Instructions
User & Safety Instructions 1304171 Toner and probe kit 4586068 Fluke Networks MT-8200-60-KIT Networks	PDF	Download

Digital Network Cable Signal generator / Toner and receiver/sample tracks and locates cables in active networks.

This text is machine translated.

Features

Advanced Super Vision Technology for more effective cable locating at patch panels, switches, connection blocks or in extensive cable bundles
Our new IntelliTone Pro Toner and probe kit you will find cable and the other remain hidden
The IntelliTone™ Pro Toner and probe series from Fluke Networks offers as a first system of its kind digital and analog signal in a product
This means that it is equipped with the most powerful technologies for localising cables in any working environment equipped
Use the digital mode for safe and effective locations and tracking of data cables in active networks
Use the analogue mode to isolate individual wire pairs as well as for tracking of voice, audio and video cables.
The IntelliTone™ Pro Toner and probe series from Fluke Networks gives you an unsurpassed precise location of cables in floor, ceiling, walls and cable bundles
Thanks to the innovative digital technology, it is the first device in active networks safely and effectively to create and tracking of audio signals can be used.

Scope of delivery

IntelliTone 200 toner and Probe Kit consisting of: IntelliTone 200 toner and 200 Test
Coax F-adapter
Each 2 RJ11 and RJ45 patch cable
Test leads with alligator clips, carry strap, batteries, CD, quick guide
